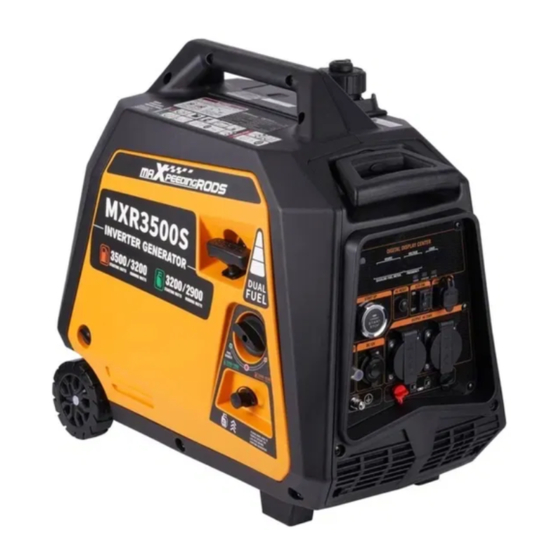

- Page 1 USER MANUAL FOR MODELS: MXR3500S Digital Inverter Generator Peak Watts: 3500W(Gas)/3100W(LPG) Running Watts: 3200W(Gas)/2800W(LPG)
-
Page 2: Technical Specifications
Tank Rated Size Speed Ignition Spark Engine Stroke X Capacity Model Model Running Peak (Gal) (RPM) Type Plug Disp(cc) Bore (Gal) Oil Type Number Number Watts Watts 3200W(Gas) 3500W(Gas) MXR3500S 1.58 4600 A5RTC 64X45 0.12 10W30 2800W(LPG) 3100W(LPG) 2 MAXPEEDINGRODS... -
Page 3: Limited Warranty
2. WHO GIVES THIS WARRANTY (WARRANTOR): Chongqing Guoyu Technology Co., Ltd 3. WHO RECEIVES THIS WARRANTY(PURCHASER): The original purchaser (other than for purposes of resale) of the MAXPEEDINGRODS inverter. 4. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any portable generator supplied or manufactured by Warrantor. -
Page 4: Table Of Contents
Safety Labels and Decals Cleaning the Air Filter Draining the Float Bowl UNPACKING Spark Plug Maintenance FEATURES Cleaning the Spark Arrestor Basic Inverter Features MXR3500S Cleaning the Inverter Control Panel Features MXR3500S Storage OPERATION TROUBLESHOOTING Before Starting the Inverter SCHEMATIC... -
Page 5: Safety
Read Manufacturer's Instructions NOTE: Indicates a procedure, practice or condition that should be followed in order for the generator Read Safety Messages Before to function in the manner intended. Proceeding Wear Personal Protective Equipment (PPE) MAXPEEDINGRODS... -
Page 6: General Safety Rules
Never use the inverter to power medical support equipment. engine misfires often. Always disconnect tools or Always remove any tools or other service equipment used appliances from the inverter during maintenance from the inverter before operating. before starting. 6 MAXPEEDINGRODS... -
Page 7: Safety Labels And Decals
SAFETY SAFETY LABELS AND DECALS MXR3500S WARNING HOT SURFACE AVERTISSEMENT SURFACES TRES CHAUDE ADVEATENCIA SUPERFICIES CALIENTE DANGER Risk of fire. Check for any fuel overflow or leakage. Stop the engine before refueling. Generator is a potential source of electric shock. -
Page 8: Features
FEATURES BASIC INVERTER FEATURES MXR3500S WARNING HOT SURFACE AVERTISSEMENT SURFACES TRES CHAUDE ADVEATENCIA SUPERFICIES CALIENTE DANGER Risk of fire. Check for any fuel overflow or leakage. Stop the engine before refueling. Generator is a potential source of electric shock. Do not expose to moisture/rain/snow or use in damp location. -
Page 9: Control Panel Features Mxr3500S
AC 120V 30A AC 120V 20A NEUTRAL BONDED TO FRAME NEUTRAL BONDED TO FRAME CONTROL RANEL FEATURES MXR3500S Efficiency Mode Switch: When turned to the 120-Volt, 20-AMP Duplex Outlet (NEMA 5-20R): ON position, the engine will sense the load The outlet is capable of carrying a maximum needed and run at a slower RPM to save fuel. -
Page 10: Operation
Only operate the inverter on a solid, level surface. Operating the inverter on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the inverter that could: • Block cooling vents • Block air intake system 10 MAXPEEDINGRODS... -
Page 11: Powercord
POWERCORD Using Extension Cords MAXPEEDINGRODS Portable Power assumes no responsibility for the content within this table. The use of this table is the responsibility of the user only. This table is intended for reference only. The results produced by using this table are not guaranteed to be correct or applicable in all situations as the type and construction of cords are highly variable. -
Page 12: Initial Oil Fill
Remove the battery plug protective cover then connect the battery plug. Figure 2: Oil Fill/Drain Plug 3. Using the funnel and oil, pour the entire bottle of oil into the engine (see Figure 3). Figure 3: Oil Funnel 12 MAXPEEDINGRODS... -
Page 13: Adding/Checking Engine Fluids And Fuel
The engine is equipped with a low oil shutdown switch. If the oil level becomes low, the engine may shut down and not start until the oil is filled to the proper level. Figure 5: Maximum Gasoline Fill Level MAXPEEDINGRODS... -
Page 14: Starting Mxr3500S
The fuel selector is located on the left side of the front power panel. Flip the switch up to Figure 10 select gasoline as a fuel source. (2)Push-Button Start: Press the start up button down for 1-3 seconds to start the generator. Figure 6 14 MAXPEEDINGRODS... -
Page 15: Stopping The Inverter
4. Plug the devices in to the inverter. 1. Remove all the loads out of the output. 5. Turn on the devices as needed. 2. Press "START UP" Button to stop the generator. 3. Turn the LPG/GAS switch to middle to turn off the fuel. MAXPEEDINGRODS... -
Page 16: Maintenance
6 Months 6 Months or Every Year Engine Oil Check Level Change Change Cooling Features Check/Clean Air Filter Check Clean* Replace Spark Plug Replace Check/Clean Spark Arrestor Check/Clean *Service more frequently if operating in dry and dusty conditions. 16 MAXPEEDINGRODS... -
Page 17: Engine Oil Maintenance
・The oil level is acceptable if oil is visible at the bottom of the threads of the oil fill plug. ・If oil level is low, add to the correct level using the supplied oil fill bottle. Do not overfill the oil crankcase. MAXPEEDINGRODS... -
Page 18: Changing Engine Oil
3. Unscrew the air cleaner cover and tip the cover down (see Figure 17) 4. Remove the foam element from the air cleaner housing. Figure 16: Carefully tip Inverter so oil flows into oil pan Figure 17: Unscrew air cleaner cover 18 MAXPEEDINGRODS... -
Page 19: Draining The Float Bowl
2. Locate the clear plastic hose from the float that hazardous materials. Consult local authorities or reclamation facility. is exiting out the bottom of the inverter, and place a suitable container under it to catch the 5. Install the engine service panel. drained fuel (see Figure 19). MAXPEEDINGRODS... -
Page 20: Spark Plug Maintenance
5. Clean area around the spark plug. 6. Using the spark plug socket wrench provided, remove the spark plug from the cylinder head (see Figure 22). Figure 22: Slide off spark plug cover 20 MAXPEEDINGRODS... -
Page 21: Cleaning The Spark Arrestor
7. Replace the spark plug (see Spark Plug screwdriver Maintenance on page 20). 10. Replace the discharge gate. 8. Move the inverter to a clean, dry place for storage. MAXPEEDINGRODS... -
Page 22: Troubleshooting
2. Clean the air filter (see page 18). Engine runs erratic; does not 3. Applied loads maybe cycling on and 3. As applied loads cycle, changes in hold a steady RPM. off. engine speed may occur; this is a normal condition. 22 MAXPEEDINGRODS... -
Page 23: Schematic
MXR3500S SCHEMATICS MAXPEEDINGRODS... - Page 24 You may obtain the replacement components from the following address: 501 W Broadway Suite 2020 San Diego, CA 2101. Note: This warranty shall not apply if engine is subjected to other than normal and proper storage, handling, installation, operation and maintenance or to unauthorized repairs or alterations. 24 MAXPEEDINGRODS...
- Page 25 (2)Fee from defects in materials and workmanship that causes the failure of a warranted part for a period of two years. (c)The warranty on emissions-related parts will be interpreted as follows: to the ultimate purchaser and any subsequent owner the emission control system when installed was MAXPEEDINGRODS...
- Page 26 (1) Fuel Metering System · Carburetor and internal parts ( and / or pressure regulator or fuel injection system · Air / fuel ratio feedback and control system · Cold start enrichment system · Fuel Tank 26 MAXPEEDINGRODS...
- Page 27 (e)Written instructions for the maintenance and use of the evaporative emissions control system by the owner shall be furnished with eachnew engine or equipment subject to this Article. The instructions must be consistent with this Article and applicable regulations contained herein. MAXPEEDINGRODS...
