Summary of Contents for biossun BIO K

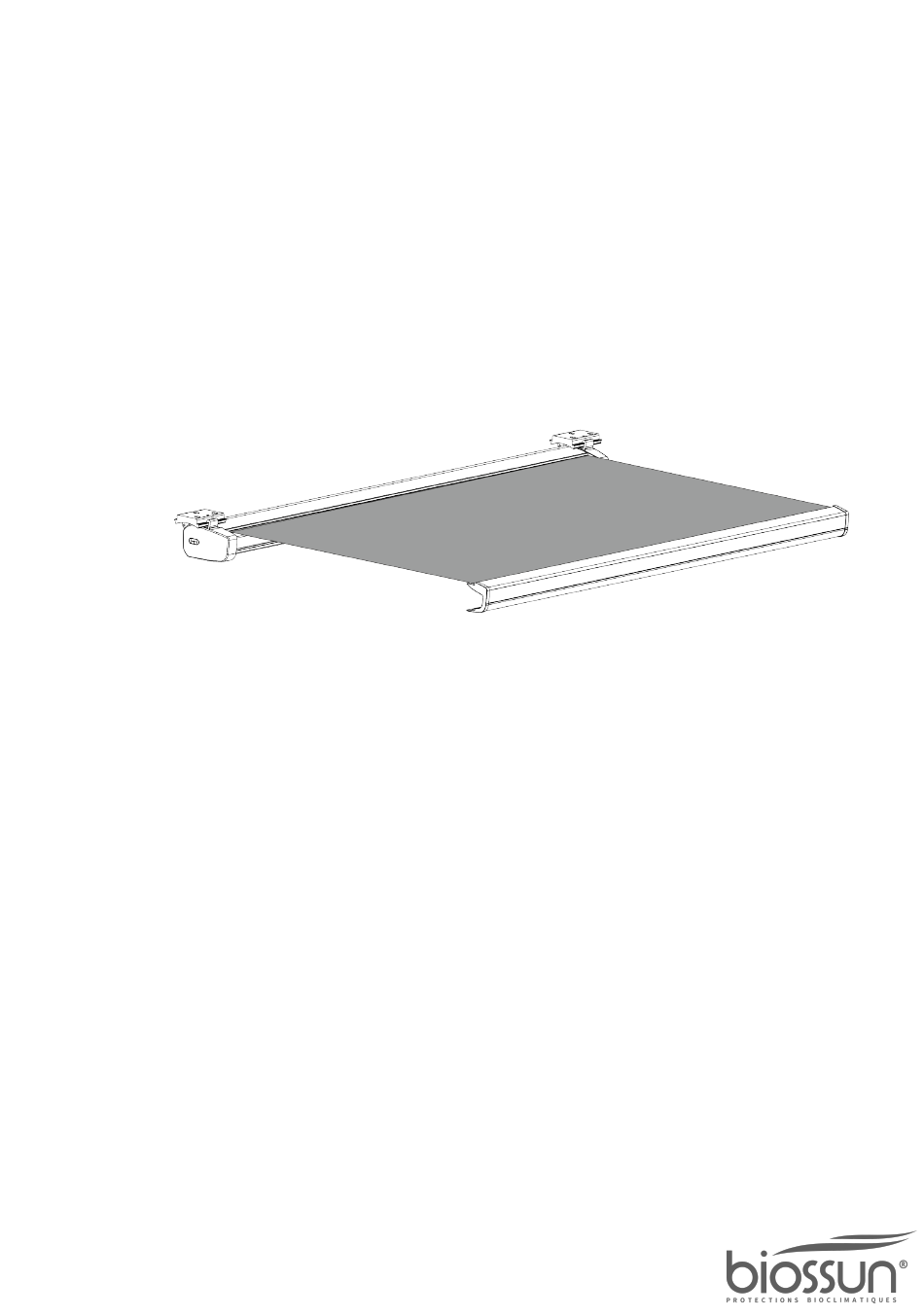

  • Page 1 Assembly instructions Folding arm awning BIO K...
  • Page 2 BIOSSUN SAS 24 rue de la Sure 38360 SASSENAGE (FR) Téléphone : +33 (0)4.80.42.08.10 E-mail : info@biossun.com Site web : www.biossun.com Folding arm awning BIO K 02.09.2021...
  • Page 3 24 Rue de la Sûre 38360 Sassenage Téléphone 04 80 42 08 10 techsupport@biossun.com e-mail Motor manual Other applicable documents If included: Radio remote control instruction manual If included in the scope of supply: Automatic control instruction manual Folding arm awning BIO K 02.09.2021...

  • Page 4: Table Of Contents

    Table of contents Table of contents Folding arm awning BIO K............5 Safety..................6 Prepare the assembly............. 10 Mount the blind............... 14 Adjust the blind................ 17 Problem solving............... 21 Index..................22 Folding arm awning BIO K 02.09.2021...

  • Page 5: Folding Arm Awning Bio K

    Folding arm awning BIO K Folding arm awning BIO K Fig. 1: Awning K Cassette Awning Drop bar Consoles Handwheel (control option) Motor (ordering option) The cassette (Fig. 1/1) is attached to the support surface by the brackets (Fig. 1/4). The drop bar (Fig. 1/3) is connected to the articulated arms (under the awning) and to the awning (Fig.

  • Page 6: Safety

    – Follow the supplied motor operating instructions. Moving parts WARNING! Risk of crushing from moving parts! Moving awning parts present a crushing hazard. - Secure support arms and end rail during assembly Folding arm awning BIO K 02.09.2021...
  • Page 7 – Secure the ropes to the awning. – Make sure that the awning cannot come loose from the ropes. – Keep the awning horizontal when lifting. – Do not enter the danger zone beneath the load. Folding arm awning BIO K 02.09.2021...
  • Page 8 Disassembly/reassembly should only be carried out by a qualified installer. If you plan to reassemble the blind, make sure you – have all the documentation. Ask Biossun for any missing documents. – Make sure you have enough space before you start – work.
  • Page 9 Handling and transport of long, heavy components Tool and machine handling Fastener installation Building structure assessment Commissioning and use of the product Permanent electrical wiring may only be installed by an officially qualified electrician. Folding arm awning BIO K 02.09.2021...

  • Page 10: Prepare The Assembly

    – To avoid contact corrosion, do not use steel and stainless steel parts together. Keep appropriate fastening materials (not included) on hand. Wall mounting Fig. 2: Bracket for wall mounting Folding arm awning BIO K 02.09.2021...
  • Page 11 Assembly preparation Ceiling mounting The 90° rotated wall bracket matches the ceiling bracket Fig. 3: Bracket for ceiling mounting Fig. 4: Bracket for rafter mounting Folding arm awning BIO K 02.09.2021...
  • Page 12 Fig. 5: Bracket for frame mounting Drilling jigs The brackets for wall and ceiling mounting can also be used as drilling templates. Fig. 6: Drilling template for Fig. 7: Drilling template for wall bracket extension wall/ceiling bracket Folding arm awning BIO K 02.09.2021...
  • Page 13 Assembly preparation Console extension for wall or ceiling mounting Fig. 8:Console extension for wall or ceiling mounting Rafter extension Fig. 9: Rafter extension Folding arm awning BIO K 02.09.2021...

  • Page 14: Mount The Blind

    (e.g. fencing). Align brackets horizontally. Use a spirit level or string to align the Fig. 11: Aligning brackets mounting holes horizontally. Transfer the drilling diagram (Fig. 12). Fig. 12: Console markings Folding arm awning BIO K 02.09.2021...
  • Page 15 Drill the console mounting holes and insert wall plugs if necessary. (Fig. 13). Fig. 13: Console drilling Screw the brackets to the support surface (Fig. 14). Fig. 14: Screwing the console Awning connection Connect awning to brackets (Fig.15) Fig. 15: Awning connection Folding arm awning BIO K 02.09.2021...
  • Page 16 – The blind may only be connected if the specifications on the nameplate match the supply voltage. – Follow the supplied motor operating instructions. Connect the drive to the power supply as described in the enclosed motor manual. Folding arm awning BIO K 02.09.2021...

  • Page 17: Adjust The Blind

    SW10 (Fig. 19/1). Counter-clockwise : The angle of inclination increases - the folding arm lowers. Clockwise : The angle of inclination is reduced - the folding arm is raised. Check that the blind is horizontal. Folding arm awning BIO K 02.09.2021...
  • Page 18 Loosen the M6x10 hex head clamping screw (Fig. 21/1) on the upper arm fork (Fig. 21/3). Bring the folding arms into a horizontal position using a 5 mm wrench on the folding arm eccentric bearing screw (Fig. 21/4) (Fig. 21/2). Folding arm awning BIO K 02.09.2021...
  • Page 19 Fix the position of the bottom end of the motor as indicated in the motor manual. Upper end position Retract the blind. The motor stops in the upper end position due to the increased torque. Folding arm awning BIO K 02.09.2021...
  • Page 20 Make sure the blind rolls up evenly. Make sure the cassette closes properly. If the cassette does not close properly : Ä "Arm level adjustment" on page 1 Ä "Adjusting the drop bar" on page 19 Folding arm awning BIO K 02.09.2021...

  • Page 21: Problem Solving

    Defective motor Have the engine checked Have the electrical connection checked Snapping noise Load bar does not Adjust load bar ("Adjust load bar" on page 19) on retraction engage properly Check for blockages Folding arm awning BIO K 02.09.2021...
