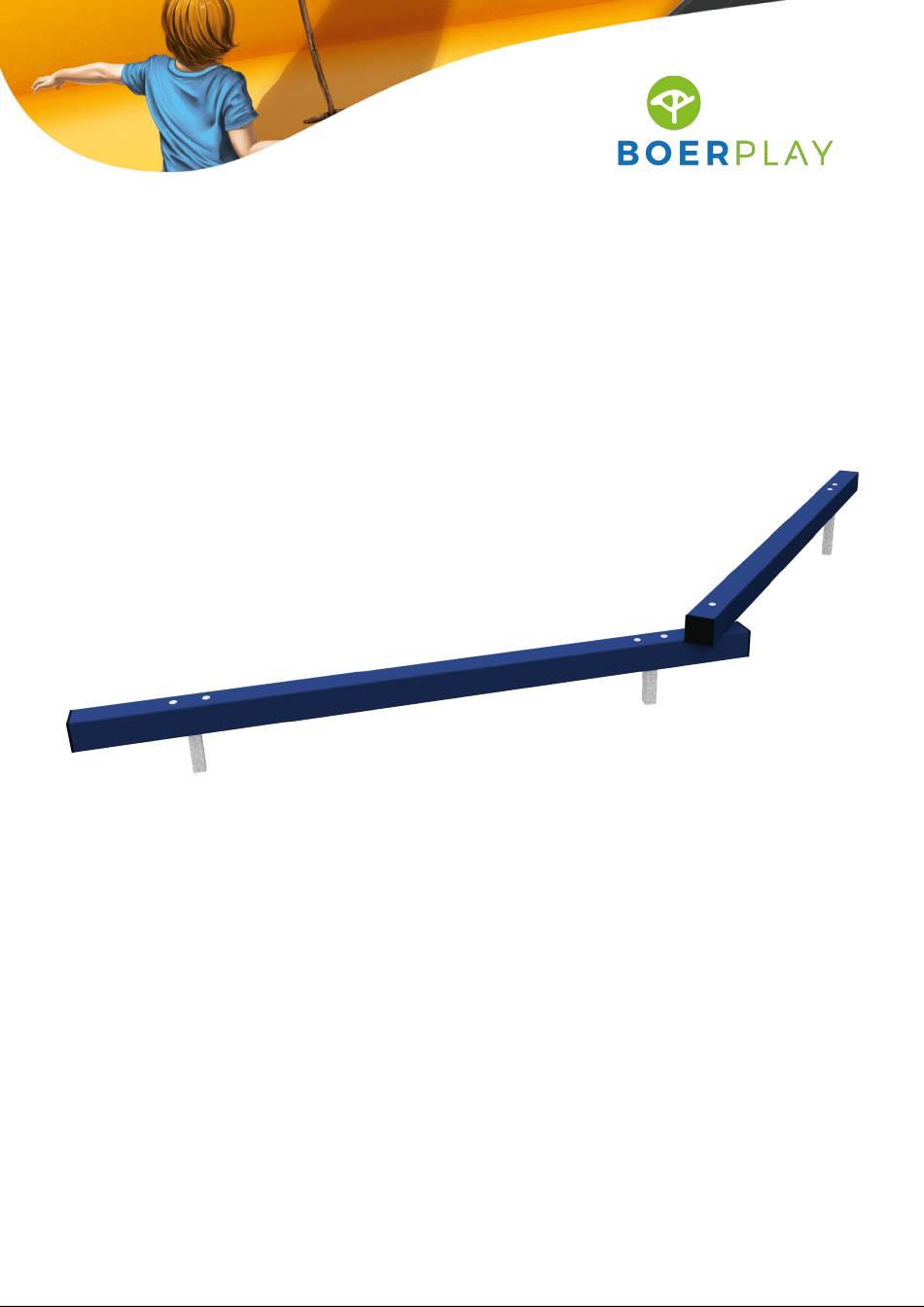

- Page 1 Balance beam duo BBPE045.2A...
-
Page 2: Main Dimensions
Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 3,68 m 2,27 m 2,14 m 0,00 m 0,35 m 0,25 m 0,00 m BBP 045 2A © Copyright BOERplay 31-5-2022 Revision: A... - Page 3 Zona libre de obstáculos Zone libre d’obstacles 4,61 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBP 045 2A © Copyright BOERplay 31-5-2022 Revision: A...
- Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 1,78 m 1,26 m 1,58 m 0,20 m Grondmarkering Ground level marker 0,40 m 0,30 m BBP 045 2A © Copyright BOERplay 31-5-2022 Revision: A...
-
Page 5: Order Of Assembly
2 - Controleer de afmetingen van de valbodem t.o.v. het toestel Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Balansbalk aanbouw Boer Basic Play Balans solo Boer Basic Play BBP 045 2A © Copyright BOERplay 31-5-2022 Revision: A... - Page 6 LOGBOOK Type indication Basic Play Article number BBPE045.2A Product Name Balance beam duo Maximum fall height 0,4 m Construction year 2023 Certificate 133369 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 Rev. Benaming Volgnr. Opmerking Borgdopmoer M10 - VZ 8.8 Slotbout M10 x 120 - VZ 8.8 SLUITRING M10 VZ Lamellenstop 100 x 100 mm Balansbalk Koker 100x4 L= 2250 Grondanker Goal MOD BBP 836 A © Copyright BOERplay 31-5-2022 Revision:...
- Page 12 Grondmarkering Ground level marker 1775 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Borgdopmoer M10 - VZ 8.8 M10 x 220 - VZ 8.8 Slotbout Slotbout M10 x 120 - VZ 8.8 Sluitring M10 - VZ 8.8 Lamellenstop 100 x 100 mm Balansbalk aanbouw Boer Basic play Grondanker...
