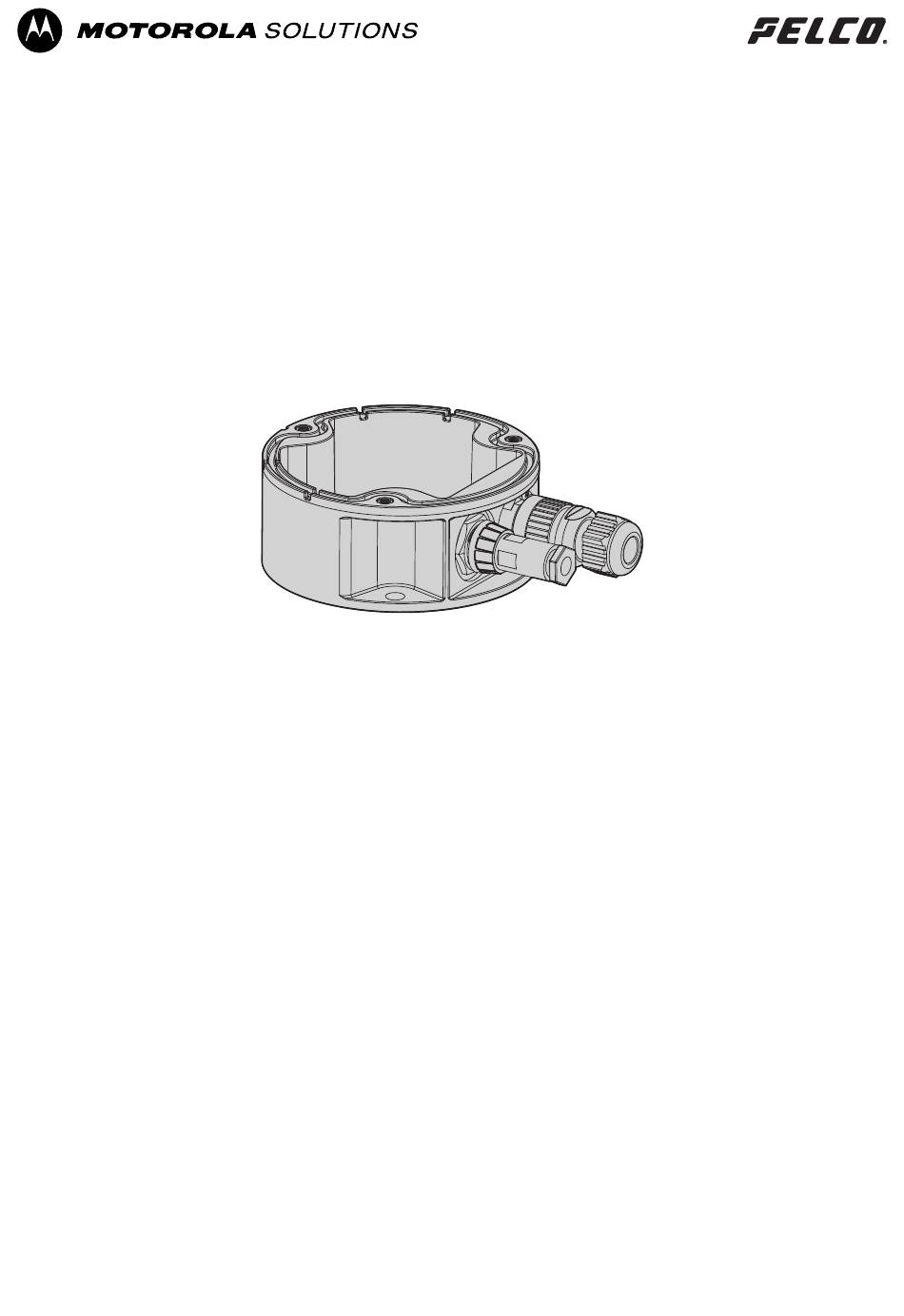

- Page 1 UEBP4 - UEBP7 Installation Manual Document number: MNLKUEBP4_2330 Publication date: 01/24...
- Page 2 ENGLISH UEBP4 - UEBP7 Parapet support with quick connectors 1 About this manual 3 Safety rules Read all the documentation supplied carefully CAUTION! Device installation and before installing and using this product. Keep the maintaining must be performed by manual in a convenient place for future reference. specialist technical staff only.
- Page 3 6 Installation 5.1 Unpacking When the product is delivered, make sure that the 6.1 Mounting the bracket package is intact and that there are no signs that it has been dropped or scratched. Take special care when attaching and If there are obvious signs of damage, contact the fastening down the apparatus.
- Page 4 6.2 Cable management Use the screws and washers provided. Connect the Ethernet cable supplied to the Ethernet connector of the support. Apply thread-locker into the holes for screws (Loctite 222®). Pay attention to the fixing. Tightening torque: 4.5Nm (±0.2Nm). Fig. 4 Remove the cable gland.
- Page 5 6.3 Fixing the base to the support 6.5 Mobile connectors cabling (Ethernet) Use the screws and washers provided. Use of Ethernet cables with the following characteristics is highly recommended: Apply thread-locker into the holes for • Cable diameter: from 5mm (0.2in) up to 6mm screws (Loctite 222®).
- Page 6 Delicately pull the Ethernet cable (05) until the RJ45 connector (06) is completely inserted in the compartment of the mobile connector body. After inserting the cage and the gasket, tighten the sealing nut (07). Pay attention to the fixing. Tightening torque (sealing nut 07): from 0.9Nm up to 1Nm.
- Page 7 6.6.2 7-pole connector Fasten the sealing nut (06). For 7-pole connectors, weld the conductors in the Pay attention to the fixing. Tightening pins. torque: 2.5Nm. Fig. 16 Connect the mobile connector on the fixed connector and tighten the ring nut. 7 Technical data Fig.
- Page 8 8 Technical drawings The indicated measurements are expressed in millimetres. Fig. 17 UEBP4 - UEBP7. Pelco, Inc. 625 W. Alluvial Ave., Fresno, California 93711 United States (800) 289-9100 Tel (800) 289-9150 Fax +1 (559) 292-1981 International Tel +1 (559) 348-1120 International Fax www.pelco.com Pelco, the Pelco logo, and other trademarks associated with Pelco products referred to in this publication are trademarks of Pelco, Inc.
