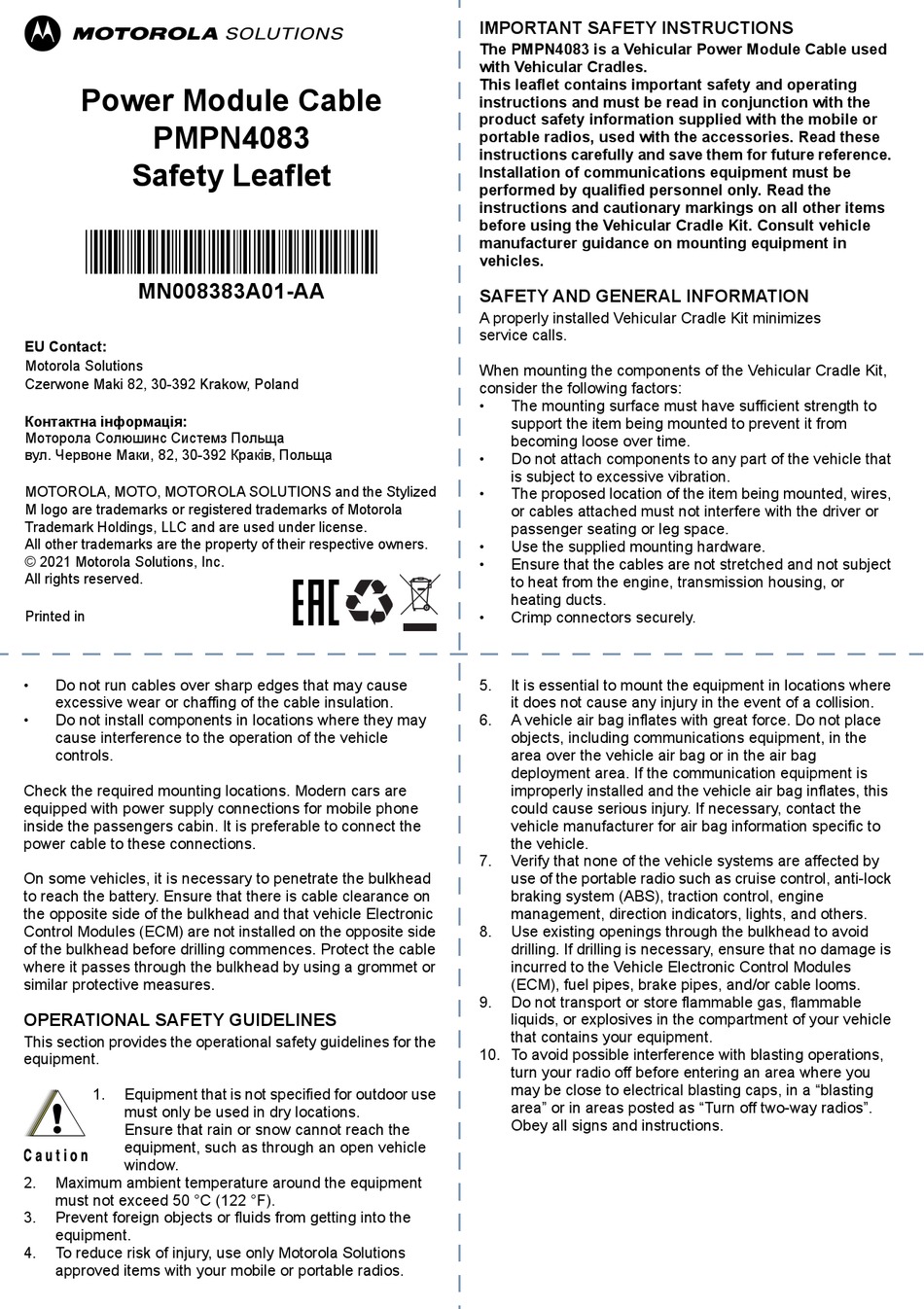

Motorola solutions PMPN4083 Safety Leaflet

m
Power Module Cable
PMPN4083
Safety Leaflet
*MN008383A01*
MN008383A01-AA
EU Contact:
Motorola Solutions
Czerwone Maki 82, 30-392 Krakow, Poland
Контактна інформація:
Моторола Солюшинс Системз Польща
вул. Червоне Маки, 82, 30-392 Краків, Польща
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized
M logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license.
All other trademarks are the property of their respective owners.
© 2021 Motorola Solutions, Inc.
All rights reserved.
Printed in
• Do not run cables over sharp edges that may cause
excessive wear or chaffing of the cable insulation.
• Do not install components in locations where they may
cause interference to the operation of the vehicle
controls.
Check the required mounting locations. Modern cars are
equipped with power supply connections for mobile phone
inside the passengers cabin. It is preferable to connect the
power cable to these connections.
On some vehicles, it is necessary to penetrate the bulkhead
to reach the battery. Ensure that there is cable clearance on
the opposite side of the bulkhead and that vehicle Electronic
Control Modules (ECM) are not installed on the opposite side
of the bulkhead before drilling commences. Protect the cable
where it passes through the bulkhead by using a grommet or
similar protective measures.

OPERATIONAL SAFETY GUIDELINES

This section provides the operational safety guidelines for the
equipment.
1. Equipment that is not specified for outdoor use
!
must only be used in dry locations.
Ensure that rain or snow cannot reach the
a u t i o n
equipment, such as through an open vehicle
window.
2. Maximum ambient temperature around the equipment
must not exceed 50 °C (122 °F).
3. Prevent foreign objects or fluids from getting into the
equipment.
4. To reduce risk of injury, use only Motorola Solutions
approved items with your mobile or portable radios.

IMPORTANT SAFETY INSTRUCTIONS

The PMPN4083 is a Vehicular Power Module Cable used
with Vehicular Cradles.
This leaflet contains important safety and operating
instructions and must be read in conjunction with the
product safety information supplied with the mobile or
portable radios, used with the accessories. Read these
instructions carefully and save them for future reference.
Installation of communications equipment must be
performed by qualified personnel only. Read the
instructions and cautionary markings on all other items
before using the Vehicular Cradle Kit. Consult vehicle
manufacturer guidance on mounting equipment in
vehicles.

SAFETY AND GENERAL INFORMATION

A properly installed Vehicular Cradle Kit minimizes
service calls.
When mounting the components of the Vehicular Cradle Kit,
consider the following factors:
• The mounting surface must have sufficient strength to
support the item being mounted to prevent it from
becoming loose over time.
• Do not attach components to any part of the vehicle that
is subject to excessive vibration.
• The proposed location of the item being mounted, wires,
or cables attached must not interfere with the driver or
passenger seating or leg space.
• Use the supplied mounting hardware.
• Ensure that the cables are not stretched and not subject
to heat from the engine, transmission housing, or
heating ducts.
• Crimp connectors securely.
5. It is essential to mount the equipment in locations where
it does not cause any injury in the event of a collision.
6. A vehicle air bag inflates with great force. Do not place
objects, including communications equipment, in the
area over the vehicle air bag or in the air bag
deployment area. If the communication equipment is
improperly installed and the vehicle air bag inflates, this
could cause serious injury. If necessary, contact the
vehicle manufacturer for air bag information specific to
the vehicle.
7. Verify that none of the vehicle systems are affected by
use of the portable radio such as cruise control, anti-lock
braking system (ABS), traction control, engine
management, direction indicators, lights, and others.
8. Use existing openings through the bulkhead to avoid
drilling. If drilling is necessary, ensure that no damage is
incurred to the Vehicle Electronic Control Modules
(ECM), fuel pipes, brake pipes, and/or cable looms.
9. Do not transport or store flammable gas, flammable
liquids, or explosives in the compartment of your vehicle
that contains your equipment.
10. To avoid possible interference with blasting operations,
turn your radio off before entering an area where you
may be close to electrical blasting caps, in a "blasting
area" or in areas posted as "Turn off two-way radios".
Obey all signs and instructions.
