Display
Digit 1

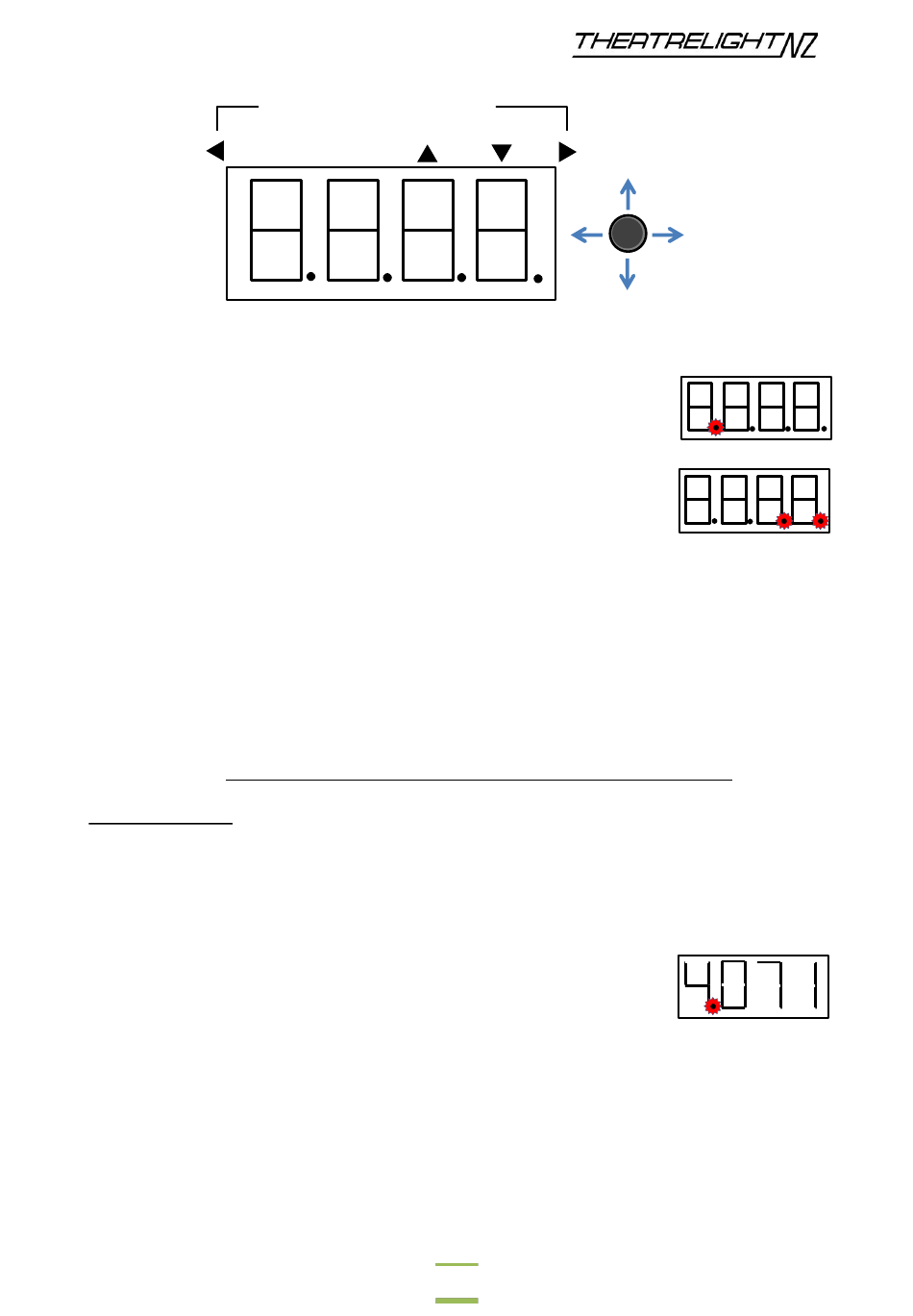

The Quadbox LED display has 2 menu options, accessed using the Joystick:
1. DMX PATCH Menu: sets each Relay DMX address in the range 1-512
DMX Patch menu is distinguished by the decimal point of digit 1 flashing
2. MODE Menu: sets each Relay Mode and its delays.
Mode menu is distinguished by the decimal point of digits 3 & 4 flashing
To move between DMX Patch and Mode menu:
 Press joystick Left if the flashing cursor is on digit 1 or press joystick Right if the flashing cursor
is on digit 4
o The Display defaults to Mode Menu on Power-up for after display sleep
!
To reset QuadBox to default settings press Joystick in for 5 seconds until the display flashes:
All relay channels are set to DMX Patch mode, DMX addresses set to 1 2 3 4 and all delays set to Instant
!
Display and Indicators will fade out after five minutes after the last Joystick input

DMX PATCH Menu:

The DMX Patch menu is used to set individual DMX addresses for each relay
 Press joystick Left if the flashing cursor is on digit 1 or press joystick Right if the flashing cursor
is on digit 4 (digit 3 & 4 decimal point flashing)
 Select Relay Channel (1-4) displayed on digit 1 using up/down Joystick
 Set that Relay DMX address using right Joystick to scroll to digits 2-4
and the up/down Joystick to select the address number (1-512)
 Press Joystick to Save
!
DMX Patch addresses are only used if that Relay Channel is set to DMX Patch mode (d) - See Mode Menu Setup
Chn DMX Address
Chn Mode Delay
Digit 2 Digit 3
Delay
Digit 4
1
Joystick (push to save)
E.g. Relay 4, DMX 071
Relay DMX Address
No.
(1-512)
