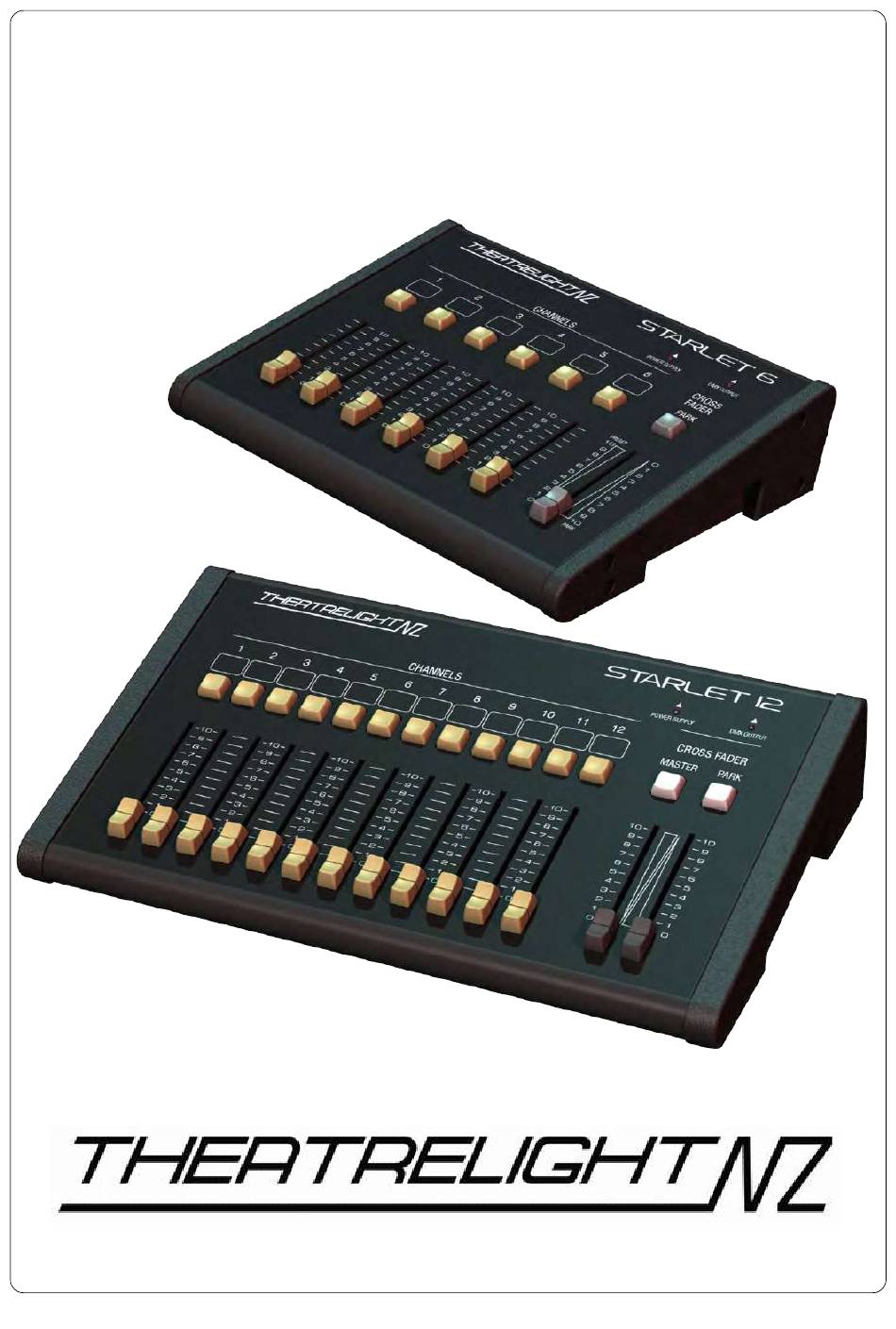

- Page 1 ST ARLET 6 & 12 Operators Manual...
- Page 2 Overview: The Starlet 6 & 12 are simple lighting control consoles. They have 6 or 12 channel faders each with a flash button. A Park facility allows two preset operation. Output levels are sent by industry standard DMX512. Package contents:...
- Page 3 Operation: Power Supply: DMX Output: Power supply OK. DMX512 OK Cross fader: i) In the PRESET position (up) the preset faders 1-6 (or 1-12) are active and will the output ii) In the PARK position (down) the output is derived from the PARK memory. Preset faders 1- 6 or 1-12: These faders control the output channels 1-6 or 1-12 The CROSSFADER must be in the preset position (up).
- Page 4 DMX512 (1990) Output Connector: 5 pin XLR socket Power supply: 110- 230 VAC Size: Starlet 6: 283mm x 217mm x 64mm Starlet 12: 364mm x 217mm x 64mm Weight: Starlet 6: 1.8Kg Starlet 12: 2.8Kg Pin 1: Shield Pin 2: Data -...
