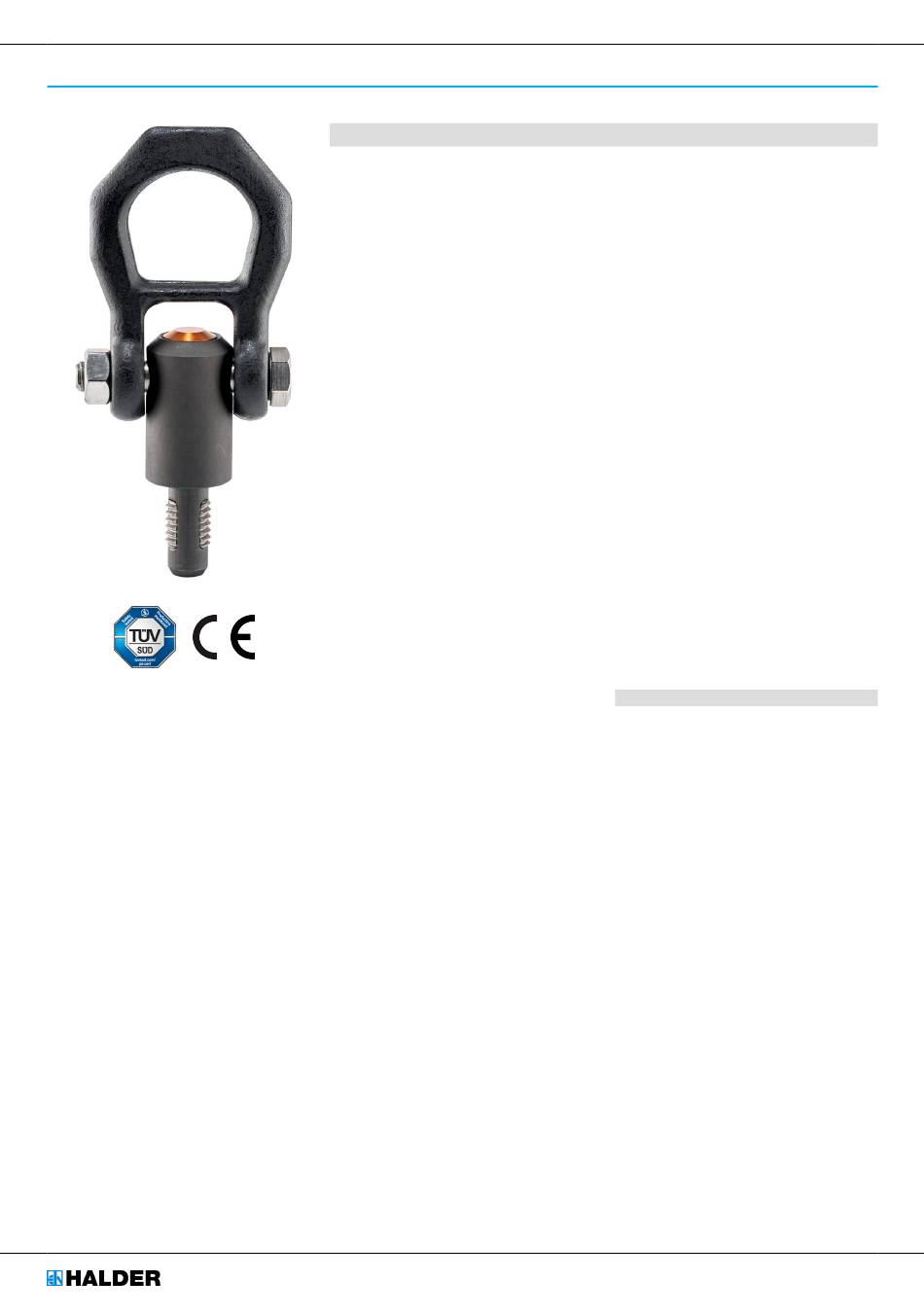

HALDER 22352.0008 Quick Start Manual

Threaded Lifting Pins
22352.0008
self-locking
•
Product Description
Heavy-duty lifting element for quick and easy use, with moveable shackle and locking stud to
provide protection against unintentional unlocking. For lifting loads, the threaded lifting pin is
inserted into a threaded hole. In contrast to a ringbolt, time-consuming screwing in and out is
therefore unnecessary.
All versions are corrosion-protected. The version made of stainless steel is also resistant to
corrosion and weathering, so it is also suitable for external use. In addition, the high-strength,
precipitation-hardened pin makes extreme loads possible.
Material
Pin part
• Heat-treated steel, tempered, manganese
phosphated
Press button
• Aluminium, orange, anodised
Threaded element
• Stainless steel 1.4542, precipitation-
hardened
Shackle
• Heat-treated steel, tempered, manganese
phosphated
Spring
• Stainless Steel
Halder, Inc.
Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Assembly
Threaded lifting pins can be mounted into a
thread that is true to gauge.
Mounting:
1. Press in the button and hold it down.
2. Insert the threaded lifting pin.
3. Release the button (The button must be
back in its original position.).
4. Tighten the threaded lifting pin by hand, until
it bears compleately on the bearing surface.
5. It must be ensured that the threaded
segments are engaged in the mounting
thread.
Dismantling:
1. Unscrew the threaded lifting pin approx. a
quarter of a turn anticlockwise.
2. Press in the button and hold it down.
3. Remove the threaded lifting pin.
4. Release the button.
Operation
Each threaded lifting pin contains an
instruction manual with an EC Declaration of
Conformity.
More information
Further products
• Lifting Pins, self-locking
• Lifting Pins, self-locking, stainless steel
• Threaded Lifting Pins, self-locking, for
centre holes according to DIN 332
• Threaded Lifting Pins, self-locking, with
rotatable shackle
• Threaded Lifting Pins, self-locking - INCH
• Threaded Lifting Pins, self-locking, with
rotatable shackle - INCH
