Summary of Contents for elinvision iQube s

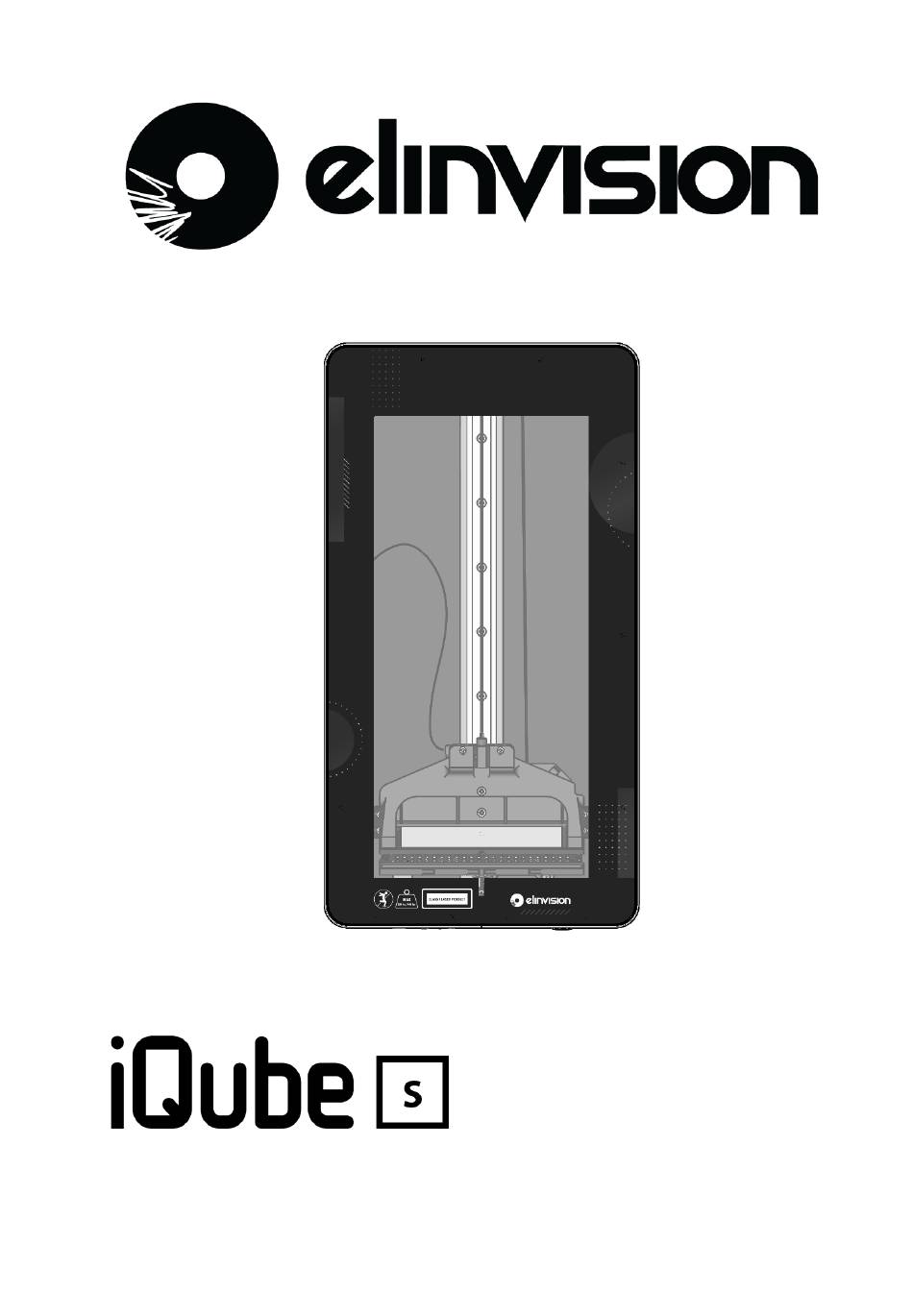

- Page 1 Model VAS-44M ___________________________ Installation and User Guide 001-UG-0002-R07 2022-11-08...
- Page 2 © 2022 UAB Elinvision Information in this guide is subject to change without notice. No part of this document may be reproduced or transmitted in any way without the express written permission of UAB Elinvision. Registered trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ............................. 4 1.1. About this guide ............................4 1.2. Contact information ..........................4 1.3. Product description ..........................5 1.4. Product overview ............................ 6 General information ..........................7 2.1. Symbols ..............................7 2.2. Requirements ............................8 2.3. General safety information ........................ -
Page 4: Introduction
Congratulations on your new purchase. The 3D Foot Scanner is intended to obtain foot dimensions for shoe size measurement and selection. This guide will assist you with the installation and usage of the 3D Foot Scanner model iQube S VAS-44M. The installation consists of: ✓... -
Page 5: Product Description
1.3. Product description The 3D Foot Scanner uses laser triangulation technology combined with 2D color images for a precise 3D representation of the feet. A camera and line laser are used to capture the 3D image and texture. This allows precise and fast scans of feet in normal ambient light conditions. -
Page 6: Product Overview
1.4. Product overview The 3D Foot Scanner iQube S VAS-44M package includes: • iQube S 3D Foot Scanner • USB 2.0 cable A-B Do not use any other USB cable! • Power cord with a C5 plug, the other side will be country specific •... -
Page 7: General Information
2. General information 2.1. Symbols The following symbols may appear on the product, packaging or documentation: Caution, read these instructions carefully If used on the product label: Caution, consult accompanying documentation Manufacturer Date of manufacturing Consult the installation and user guide (this document) Type B applied part, the glass plate of the 3D foot scanner is designated as type B applied part Regulatory Mark for the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) -
Page 8: Requirements
2.2. Requirements Refer to the Installation Guide and User Manual for the software. 2.3. General safety information This section contains instructions regarding safety. Please read carefully. • Prior to a measurement session, instruct the client how to stand on the 3D Foot Scanner. The client should only step or stand on the designated scan area. -
Page 9: Laser Safety
• WARNING: Do not modify this equipment without authorization of the manufacturer. • No serviceable pars inside. 2.4. Laser safety • The 3D Foot Scanner uses Class 1 laser light, do not stare into the laser beam or view directly with optical instruments. -
Page 10: European Union (Eu) Customer Information
equivalent to new in performance and reliability. • Repair or exchange as provided under this warranty is the sole and exclusive remedy of the consumer and The Company’s sole and exclusive liability in respect of defects in the Product. • Customer shall contact The Company support department to initiate the warranty service procedure. -
Page 11: Unpacking And Installation
3. Unpacking and installation • Place the scanner at the point of use. • Place the scanner level on a solid flat surface. Do not place under direct lighting or sunlight. • For measurements in (semi) unloaded position or with clients in a seated position, the scanner can be mounted on a video camera tripod or ,,Vesa’’... -
Page 12: Software Installation
4. Software installation Do not connect the 3D Foot Scanner to the USB port of the PC until the software is installed Download and run file "Foot3dt-setup.exe" from http://www.elinvision.com/support-center/ to install the software. Refer to the Installation Guide and User Manual for the installation of the software. -
Page 13: Start The Software
6. Start the software Start "Foot3dt" software by running "Foot3dt" in the directory you chose to install the software. Refer to the Installation Guide and User Manual for the "Foot3dt" software. 7. Your first measurement Once you have installed the software and set up the 3D Foot Scanner, you are ready to take your first measurement. -
Page 14: System Specifications
9. System specifications Dimensions (L x W x H): 545.2 x 293.5 x 88.6 mm (21.46 x 11.55 x 3.48 in.) Weight: 5.5 kg (12.12 lbs.) 340 x 180 x 80 ±5 mm (13.70 x 7.08 x 3.15 ± 0.20 in) Scanning area (L x W x H): ±1 mm (0.04 in.) Accuracy:... - Page 15 • Power button: lets user to switch the 3D Foot Scanner on or off, when power is on and mains connected power symbol on button will lit green • AC adapter input: connects to AC adapter which must be connected to mains in order power 3D Foot Scanner •...
-
Page 16: Appendices
10. Appendices 10.1. Troubleshooting The power switch light does not light up ✓ Check if AC adapters power cord is plugged in to the AC outlet ✓ Check if AC adapter is plugged to scanner The PC does not recognize the scanner ✓...
