TECHNICAL SPECIFICATIONS
Call 01255 555200
Email info@durite.co.uk
Visit www.durite.co.uk

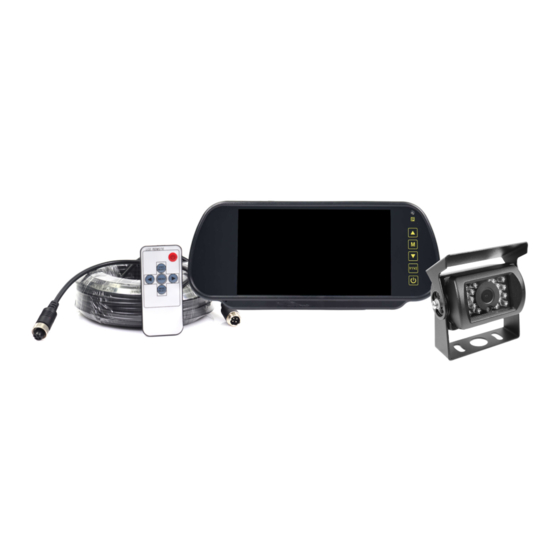

0-775-00 - 7" 1080p AHD Mirror Monitor Camera System
Durite 7" 1080p AHD Mirror Monitor Camera system. Sony 1/2.8" AHD CMOS IMX307, IP68 with microphone. Supplied with
20M extension cable and remote. UKCA, CE. E Marked R10 EMC.
THE TRUSTED QUALITY BRAND FOR PROFESSIONALS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0-775-00 and is the answer not in the manual?

Questions and answers

Related Manuals for Durite 0-775-00

Summary of Contents for Durite 0-775-00

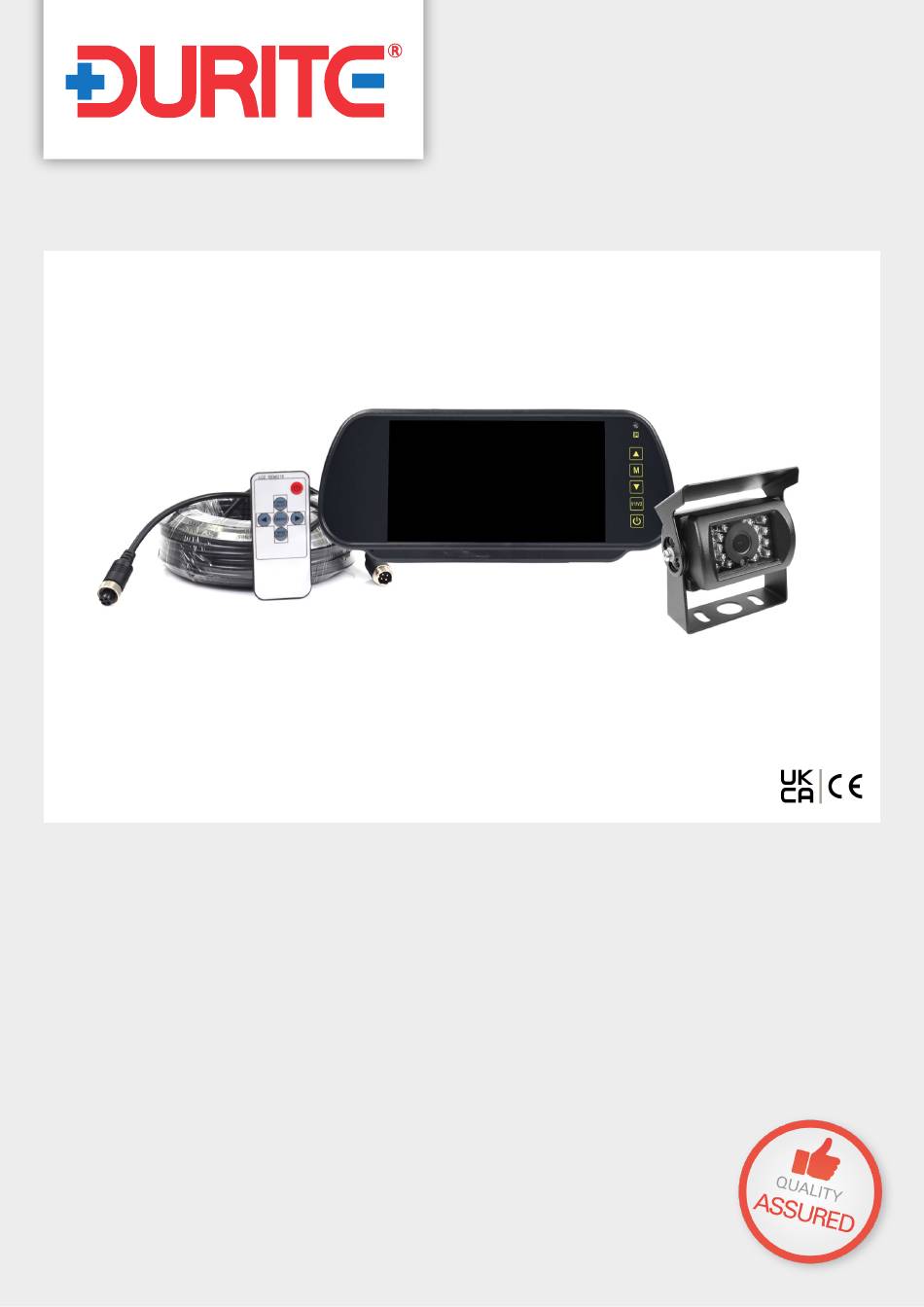

  • Page 1 Visit www.durite.co.uk 0-775-00 - 7” 1080p AHD Mirror Monitor Camera System Durite 7” 1080p AHD Mirror Monitor Camera system. Sony 1/2.8” AHD CMOS IMX307, IP68 with microphone. Supplied with 20M extension cable and remote. UKCA, CE. E Marked R10 EMC.
  • Page 2 PRECAUTIONS • Please ensure you are familiar and comply with local traffic and driving regulations. • Connection - The camera should only be connected to a Durite cctv system. • Heat - Do not install the camera near heat sources.
  • Page 3 OPERATION...
  • Page 4 PARKING GUIDELINES This CCTV reversing system has the option for parking guidelines. These can be turned on/off in the main menu. To turn on/off select MENU > GUIDE LINE> ON/OFF . The guidelines will only appear while trigger 1 (Yellow) or trigger 2 (Blue) are engaged. SYSTEM DIAGRAM CAMERA 4 PIN MONITOR 4 PIN...
  • Page 5 TECHNICAL SPECIFICATIONS - Monitor Display Device 7” Colour TFT LCD Interface Digital TTL Luminance (Nits) System PAL / NTSC (auto) Video signal format type CVBS / AHD P/N system resolution 1024 x RGB x 700 Video frame 60FPS Contrast Ratio 500:1 Power Consumption 5W Max...
  • Page 6 TECHNICAL SPECIFICATIONS Call 01255 555200 Email info@durite.co.uk Visit www.durite.co.uk TECHNICAL SPECIFICATIONS - Camera Image sensor 1/2.8” Sony AHD1080P CMOS IMX307 Resolution 1920(H)X1080(V) pixels Lens 2.8mm Video Mode 60FPS Viewing angle 120° H, 95° V TV System Sensitivity 0 LUX with IR on...
