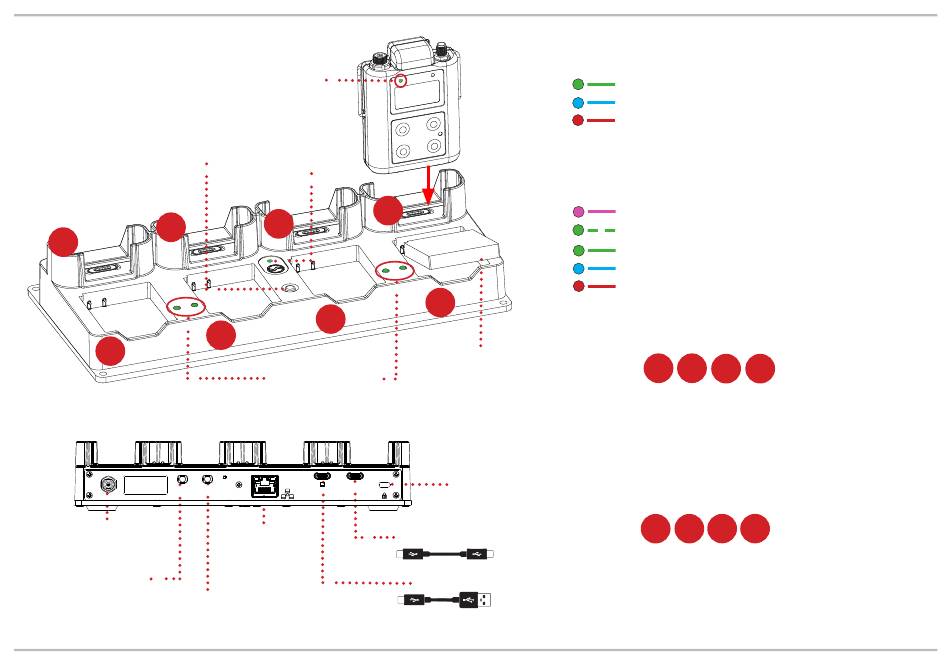

WisyCom LBC61 Quick User Manual page 2

COMMAND BUTTON
Quick press for bodypacks
general info. Press and hold to
start bulk timecode jamming
2
1
A
8÷17 Vdc
POWER LTC SYNC
Power Supply
Timecode Input
Connect here the Timecode Output
timecode generator
Cascade timecode with
using a 3.5mm jack
MTP61
battery led (**)
Charger led (*)
4
3
C
B
Charger batteries
status led (**)
REAR VIEW
LINK / ACT 10 / 100
USB 2.0 HS
Ethernet
(to PC)
Type C
Type C
Warning: do not use type C to type C
a 3.5mm jack
(*) Charger LED
(**) Battery LED
D
Battery packs
LBP61
Kensingthon
Security Slot
USB cascade
Type C
USB 2.0
Type A
GREEN: unit ON
BLUE: connected to Wisycom Manager
RED: over temperature
PINK: no battery inside (MTP61 only)
GREEN BLINKING: in charge (<70%)
GREEN: in charge (>70%)
BLUE: fully charged (100%)
RED: battery failure
1 2
3 4
LBC61 BODYPACK SLOTS
When placed into a recharging slot
a unit enters a standby mode. It will
automatically begin charging. When
removed, the unti returns to the state it
was in prior to charging.
A B C D
LBC61 BATTERIES SLOTS
A full battery recharge should
take less than 2 hours.
