Main Accesories
(find more information at Wisycom.com )
LBP61:
rechargeable Lithium-ion battery
Model CS-BCE10,
Part No. CGA-S008E
3.7V, 1050 mAh, 3.9Wh,
Cameron Sino
Cascade via USB
17 Vdc
LINK / ACT
10 / 100
Cascade multiple LBC61 using the USB ports
OWER
LTC SYNC
USB 2.0 HS
update the firmware and download the recorded
17 Vdc
LINK / ACT
10 / 100
files on multiple MTP61 simultaneously.
OWER
LTC SYNC
USB 2.0 HS
Note: if you connect more than two LBC61 in cascade you
might experience a downloading speed reduction.
8÷17 Vdc
LINK / ACT
10 / 100
POWER
LTC SYNC
USB 2.0 HS
Secure Charger
Follow the instructions alongside to secure the
charger to the desired surface using the screws
and spacers available in the accessories bag.
Ethernet Connection
Default static IP address: 192.168.1.10
Reset procedure: with unit on, keep pushed the reset button
for more than 2 seconds to restore the default IP address.
We recommend using Ethernet cables of maximun 3m length.
EU DECLARATION OF CONFORMITY
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from:
wisycom.com/products/d/LBC61
USA and CANADA
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1 - This device may not cause harmful interference, and
2 - This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
LBC61

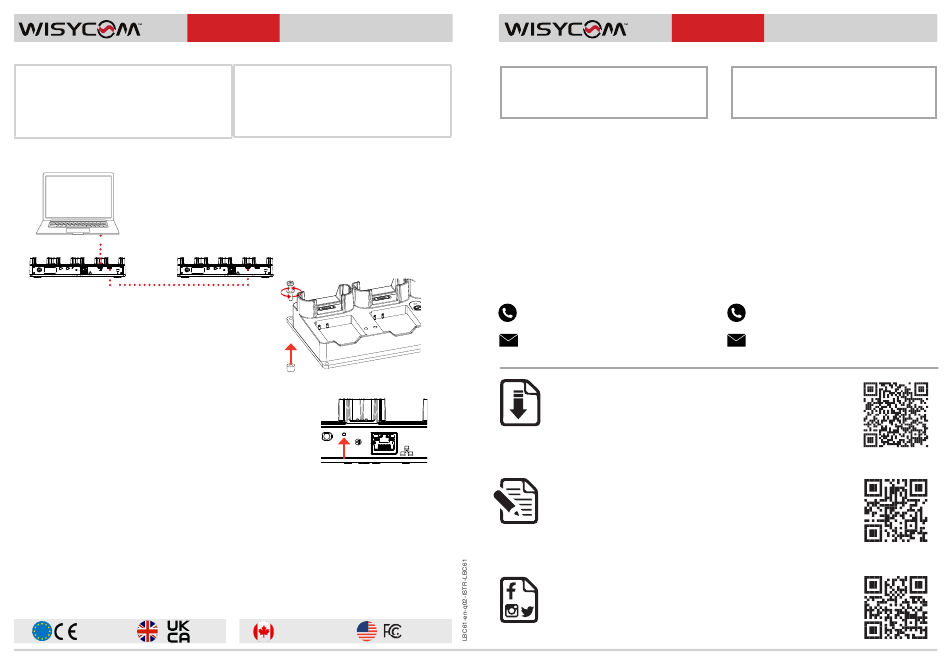

QUICK USER GUIDE
PSP15V4A0-H:
Power supply 9-17Vdc,
DC Connector, screw Type 5.5x2.1mm.
Included with LBC61.
We recommend only using the Wisycom power
supply.
8÷17 Vdc
LINK / ACT
10 / 100
POWER
LTC SYNC
USB 2.0 HS
8÷17 Vdc
POWER
LTC SYNC
IC
Serial Number:
This guide is intended to assist you with initial quick setup and
operation of your Wisycom product.
to
You can refer to Wisycom Autorized Distributors for technical
Support and information about service and repairs available in your
area or contact us directly by email.
WISYCOM S.r.l.
Via Tiepolo 7/E
35019 Tombolo (PD) - ITALY
+39 0424 382605
support@wisycom.com
sales@wisycom.com
LINK / ACT
10 / 100
USB 2.0 HS
LBC61
Purchase Date:
WISYCOM INC.
14301 Sullyfield Circle, Suite C
Chantilly, VA 20151- USA
Download Documentation and Firmware
Get declarations, user manual, specifica-
tions and softwares on the download page:
wisycom.com/products/d/LBC61
Product Registration and Warranty
Register your product to extend your warranty
and receive update on latest firmware:
wisycom.com/registration
Keep up with Wisycom online
Follow us on Facebook and Instagram. You
can also subscribe on Youtube for more.
wisycom.com/social
QUICK USER GUIDE
+1 703-574-7505
support.us@wisycom.com
sales.us@wisycom.com
