QUICK START
Plug a phone line into the jack marked LINE
1)
Plug the A/C line cord into an outlet.
2)
The MP-420 requires a 20 service feed and NEMA 5-20R outlet.
Connect any A/C powered devices into the outlets on the MP-415, MP-420.
3)
The maximum current rating for all of the devices connected to the
MP-415 cannot add up to more than 12 Amps.
The maximum current rating for all of the devices connected to the
MP-420 cannot add up to more than 16 Amps.
4) Call the phone number connected to the unit. The switch will answer with "PAL READY"
5) Enter '1' The MP-4xx will respond with ' 1 On'
6) Enter '#' Outlet 1 will turn off and the MP-4xx will respond with '1 Off '
7) Repeat steps 5 and 6, entering 1 - 4 for the desired outlet.
8) Hang up when finished
9) Read the rest of the manual. There are many more features and options.
GENERAL DESCRIPTION
The MultiPAL Remote Controlled
Power Strip, models MP-415 and
MP-420 allow an operator with a
tone dial telephone to access,
interrogate and control four A/C
power outlets. (Except were noted
both models will be refered to as
the MP-415 in this manual) Each of
the four outlets on the MP-415 can
be independently turned on, off or
pulsed for power-on reset. The
unique MultiPAL controller allows
the switch to be placed in series with any normal telephony device (phone, fax, modem, etc.). Normal
calls can pass transparently through MP-415; only when you enter a DTMF (touch tone) code, will the MP-
415 respond and allow switch control.
To operate the MP-415, place a telephone call to the dial line connected to the unit. The MP-415 provides
three call answer modes and several security options. When the call is validated, MP-415 will read off the
current status of the switch and then prompt the caller to change the switch position. When a change is
made, the new status is repeated and additional changes can be made. When no more changes are
required, the caller can hang-up, or send an additional code to access any extension device connected to
the MP-415.
REF: PWR\MP-415_V030613D.DOC

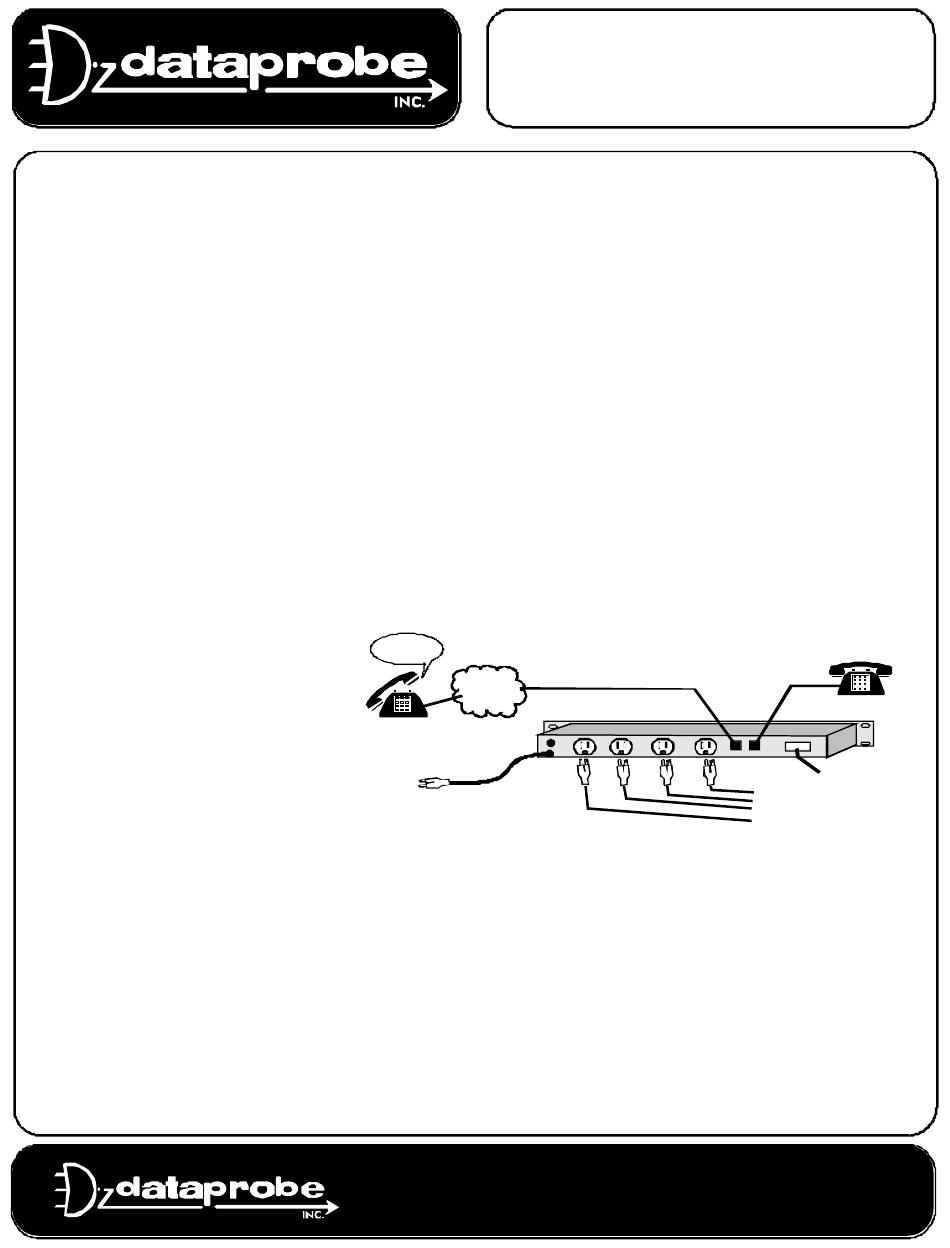

"Switch 1
