Global Industrial 244248 User Manual

Automatic label dispenser
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
USER MANUAL

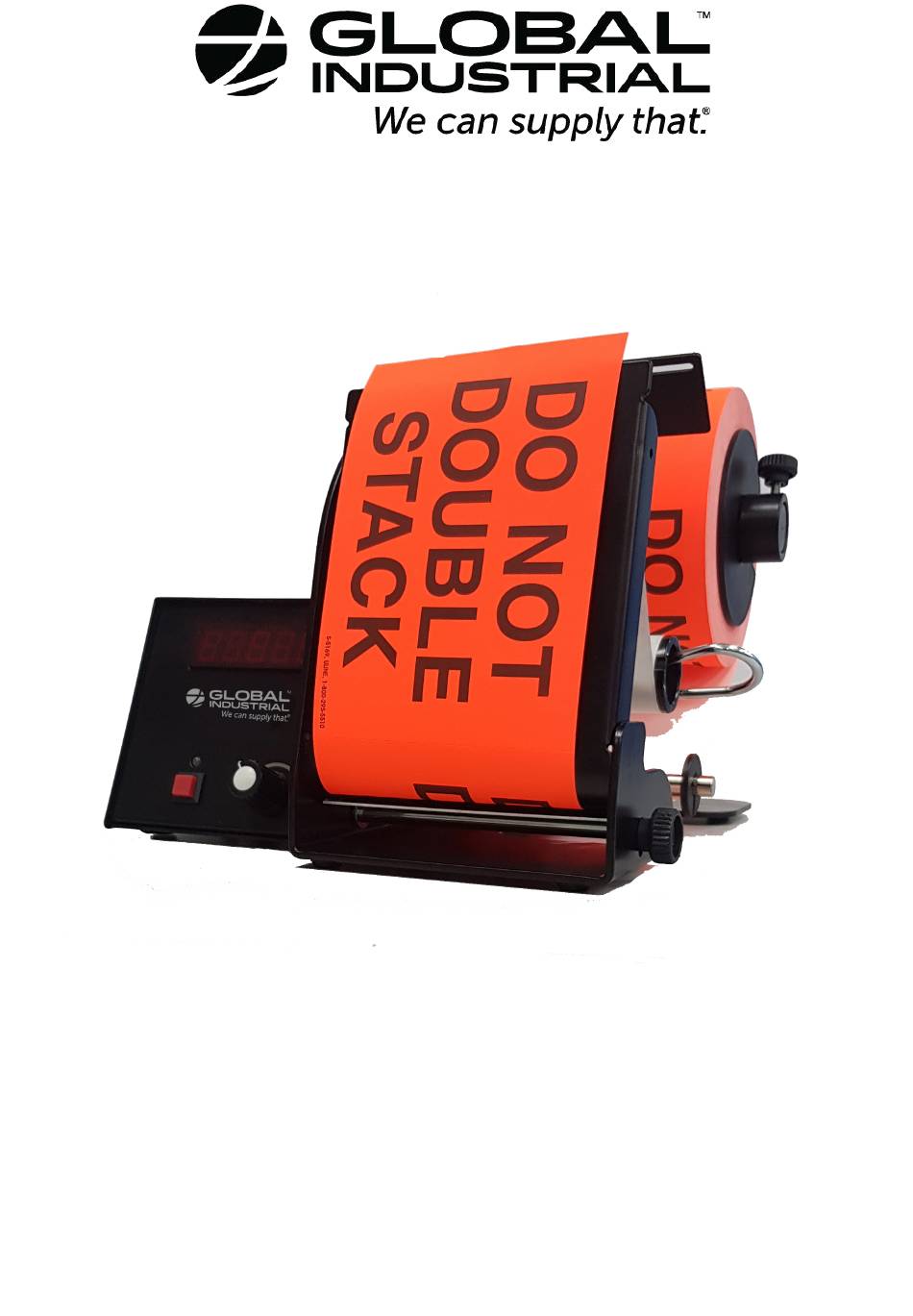

AUTOMATIC LABEL DISPENSER
MODEL NO. 244248

Advertisement

loading
Need help?

Need help?

Do you have a question about the 244248 and is the answer not in the manual?

Questions and answers

Related Manuals for Global Industrial 244248

Summary of Contents for Global Industrial 244248

  • Page 1 USER MANUAL AUTOMATIC LABEL DISPENSER MODEL NO. 244248...

  • Page 2: Specifications

    244248 Model Name Automatic Label Dispenser Voltage DC 12V Power IP Protection IP20 Speed 50~180rpm Torgue 2kg-cm Feed Speed 5~18m/min Label Length 20mm~230mm Label Width 6mm~100mm Weight 3.8kg L/W/H 320x270x203mm pA=61.3 dB(A), wA=72.3 dB(A) Noise Value =3 dB(A) Model no.244248...
  • Page 3 Take-Up Hub Roller Screw Spring Clip Spool Rod Core Holder Shield Sensor Bracket Knob Collar Spring Sensor Screw Wire Clip Self-Adhesive Wire Clip Rubber Foot AC Adapter Model no.244248 Keep tool well oiled and clean. Please order parts by number and name.
  • Page 4 Model no.244248...
  • Page 5 Always turn off the tool and remove the plug from socket Label feeding speed can be adjusted by turning speed when not in use. control knob.Turn clocwise to increase speed.Turn counter-clockwise to decrease speed. Model no.244248...

  • Page 6: Photoelectric Sensor

    3 seconds .If the error signal still shown,please contact service team. 4. Turn off the on/off button at back of tool to stop the machine if urgency happened. Photoelectric Sensor Sensitivity adjuster & Operation mode switch Optical axis (The setting is completed, do not adjust unless necessary) Model no.244248...
