Global Industrial 641519 Assembly Instructions

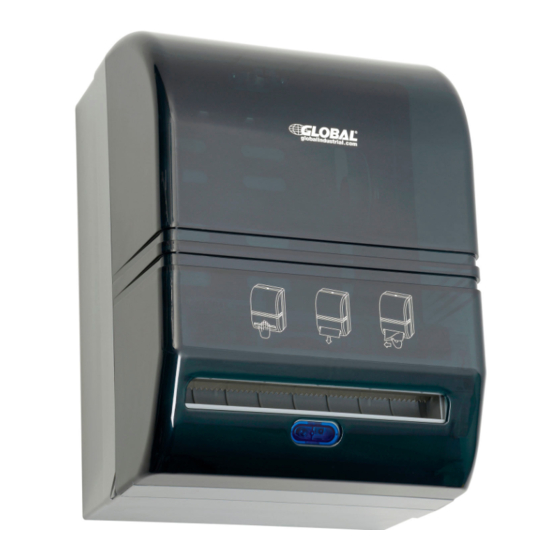

Plastic Automatic Roll Paper Towel Dispenser

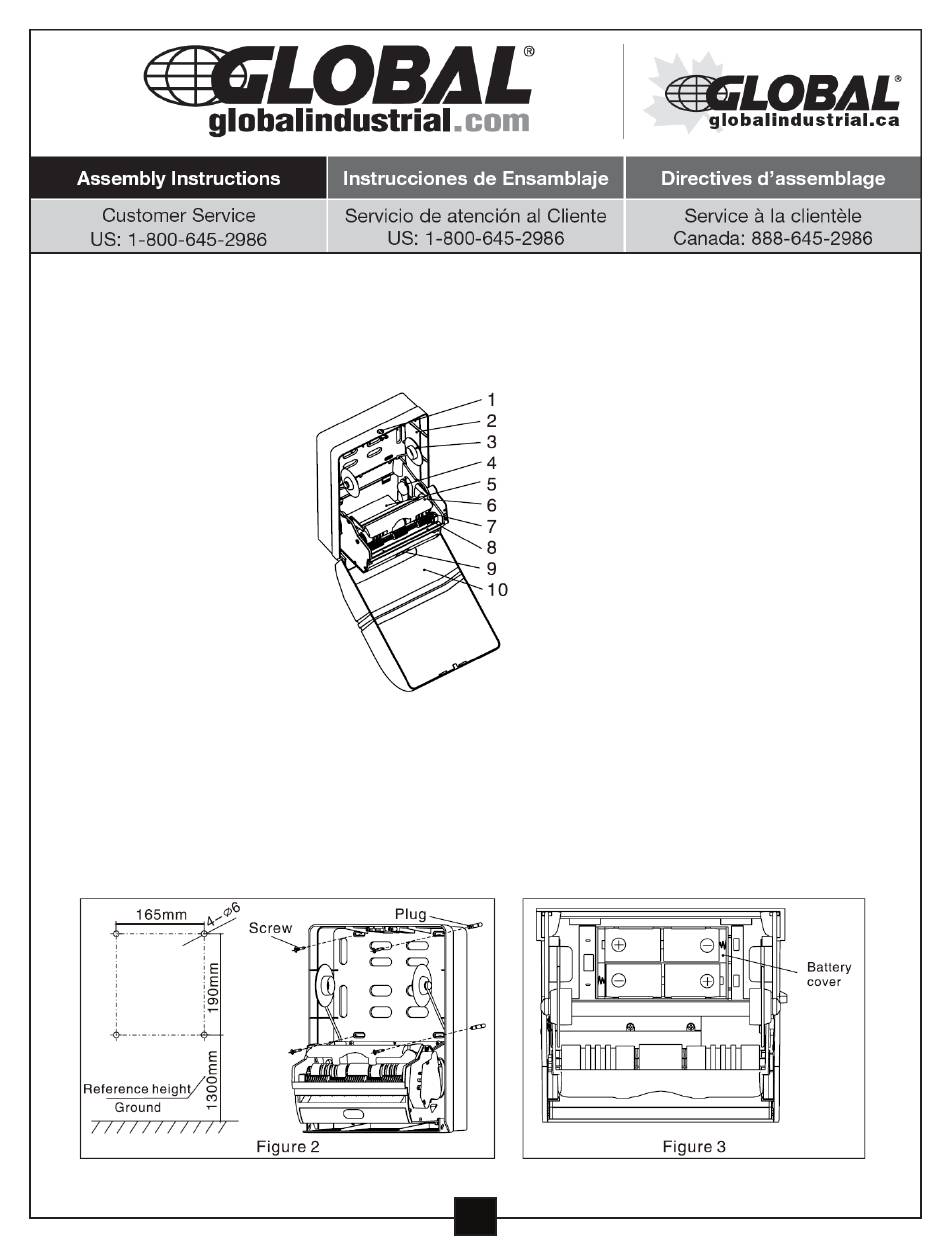

Components
1. Lock
2. Base
3. Top paper holder wheel
4. Bottom paper holder
5. Battery cover
6. Transfer bar
7. Rubber wheel
8. Small wheel
9. Sensor
10. Cover
Installation
Unlock the cover with the key.
Drill 4 holes of 6mm diameter as
shown in Figure 2. Position the
dispenser on the wall and insert
the wall anchors and screws.
Battery Requirement
Dispenser is powered by 4 "D" size alkaline batteries (not included). The dispenser will not work if
the batteries are incorrectly installed. Low battery is indicated by one flash per second. The
battery is out of electricity when the indicator flashes twice per second.
Installation Manual
Package
• Auto dispenser - Qty. 1
• User manual - Qty. 1
• 6mm plastic wall anchor – Qty. 4
• 4mmx25mm self thread screws - Qty. 4
• Key – Qty. 1
Specifications
• Power: DC 4 x 1.5V R20S
• Sensing distance: 8 ± 1 cm
• Paper dispenser length: 7-7/8", 9-7/8",
• Roll width: 8" (205mm)
• Roll Length: 800 ft (244m)
• Roll diameter: 8" (205mm)
• Core Diameter: 3.5" (90mm)
Figure 1

Model no. 641519
11-7/8" (200mm,250mm,300mm)
