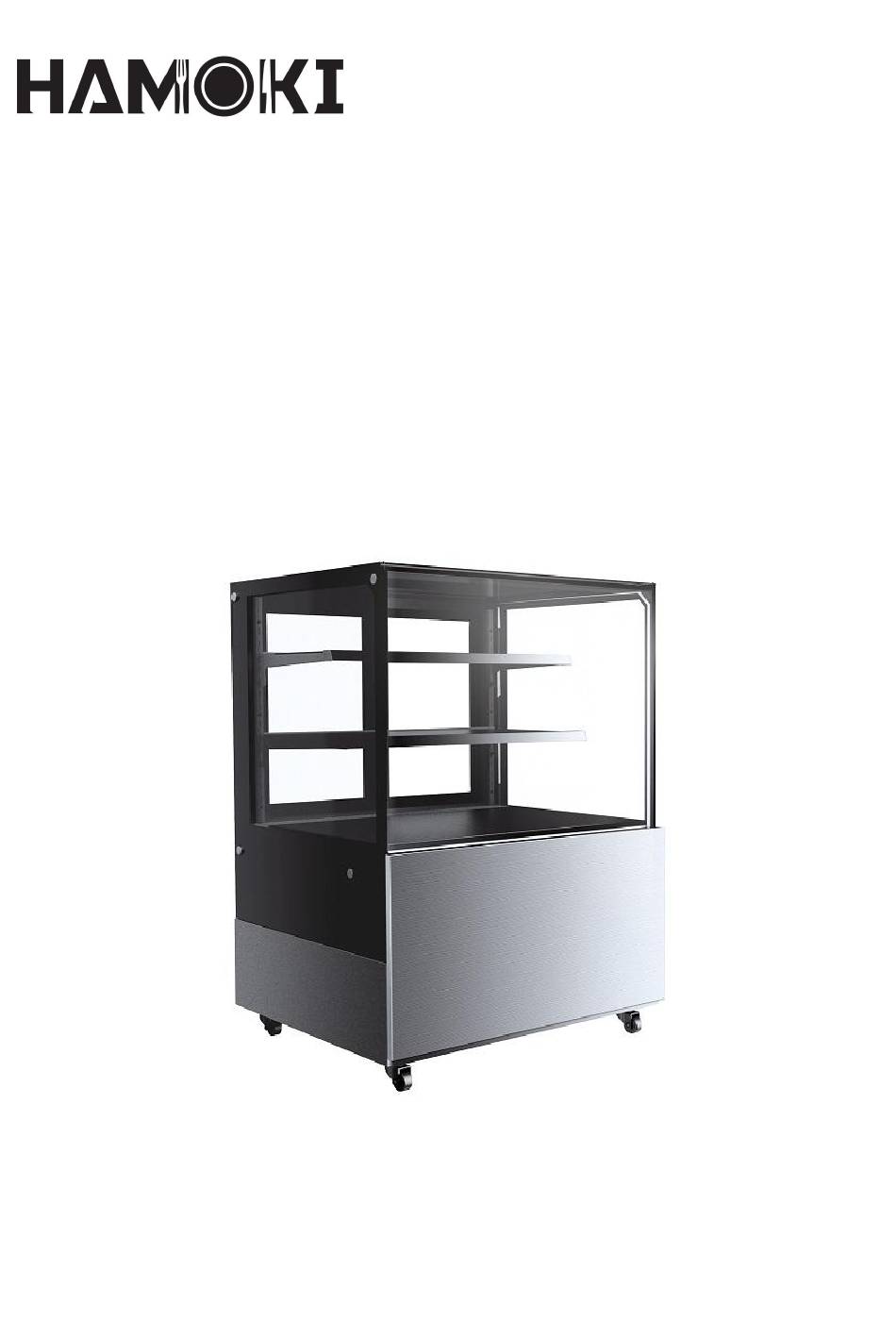

Cake Showcase
Operation instructions
HA-900Z
HA-1200Z
HA-1500Z
Art. No.:251014
Art. No.:251015
Art. No.:251016
Thank you for choosing and purchasing our product. Please carefully read the operation instructions
before use for a correct application and satisfactory effect.
1
Advertisement
Table of Contents
Related Manuals for HAMOKI HA-900Z
Summary of Contents for HAMOKI HA-900Z
- Page 1 Hamoki Limited www.hamoki.co.uk Cake Showcase Operation instructions HA-900Z HA-1200Z HA-1500Z Art. No.:251014 Art. No.:251015 Art. No.:251016 Thank you for choosing and purchasing our product. Please carefully read the operation instructions before use for a correct application and satisfactory effect.
-
Page 2: Table Of Contents
Contents General Structure and Parts Handle and Erection Preparation and Power Supply Use and Caution Maintenance Trouble Shooting Principle of Refrigeration System and Electric Circuit Diagram Major Parameters... -
Page 3: Structure And Parts
General 1. Top brand fully enclosed compressor is used on the standing refrigerator. The refrigerant R290 is of an environmentally friendly agent. It features a rational configuration of refrigeration system with blower forced air cooling. The temperature is quite even inside the refrigerator. 2. -
Page 4: Handle And Erection
Handle and Erection Handle with care Unplug the wall socket first. Never tilt it over 45 degree during handling Dry place Always locate the refrigerator at a dry place. Sufficient space The distance from both sides and back of refrigerator to wall or other substance must not less than 10cm.The refrigeration capability might be decreased if its surround space is too small to circulate air. -
Page 5: Preparation And Power Supply
No hole making Never make hole on the refrigerator. Never install other matter on the refrigerator. Stable location Unpacking and locate the refrigerator on a flat and solid place. Preparation and Power Supply Exclusive power socket Normally, the power supply should be 220-240V, single phase AC with exclusive single phase three pin receptacle (250V 10A) and fuse (6A).The power receptacle must have a reliable earth connection. -
Page 6: Use And Caution
Never give the refrigerator surface a flush otherwise current leakage might be resulted. Prevent from flammables and explosive Never put any flammable or explosive inside the refrigerator such as ether, gasoline, alcohol, adhesive and explosive. Never put dangerous product nearby the refrigerator. No spray To spray the flammables such as paint or coating nearby the refrigerator is not allowed, otherwise fire might be resulted... - Page 7 Front Panel Operation 1、 Set temperature Press „set“ button, the set temperature is displayed. Press button to modify and store the displayed value. Press „set“ button to exit the adjustment and display the cold-room temperature. 2、 If no more button is pressed within 10 seconds, the cold-room temperature will be displayed. 3、...
-
Page 8: Maintenance
Maintenance 1、 Notice Often keep the refrigerator clean and periodical maintenance is necessary. Always unplug the socket before maintenance Never use damaged plug or loose socket to prevent from electric shock or short circuit. Never flush the refrigerator. Never use alkali detergent, soap, gasoline, acetone or brush. 2、... -
Page 9: Principle Of Refrigeration System And Electric Circuit Diagram
Principle of Refrigeration System and Electric Circuit Diagram The principle of compression refrigeration consists of “compression”, “condensation”, “throttling” and “vaporization”. The compression is undertaken by compressor, the condensation is completed by condenser, the throttling valve is executed by capillary and the vaporization is implemented by evaporator. When the coolant is circulating in the closed refrigeration system, the compressor sucks coolant, which has absorbs heat in evaporator, the coolant becomes a high pressure and high temperature gas. -
Page 10: Major Parameters
Major Parameters Model HA-900Z HA-1200Z HA-1500Z Art No. 251014 251015 251016 Rated Input Power (W) Refrigeration temperature(Cº) Rated Frequency(Hz) Rated Current (A) Refrigerant & Injection(g) R290(105) R290(120) R290(130) Type of Climate Protected Mode Rated Voltage(V) 220-240~ 220-240~ 220-240~ Foaming agent...
