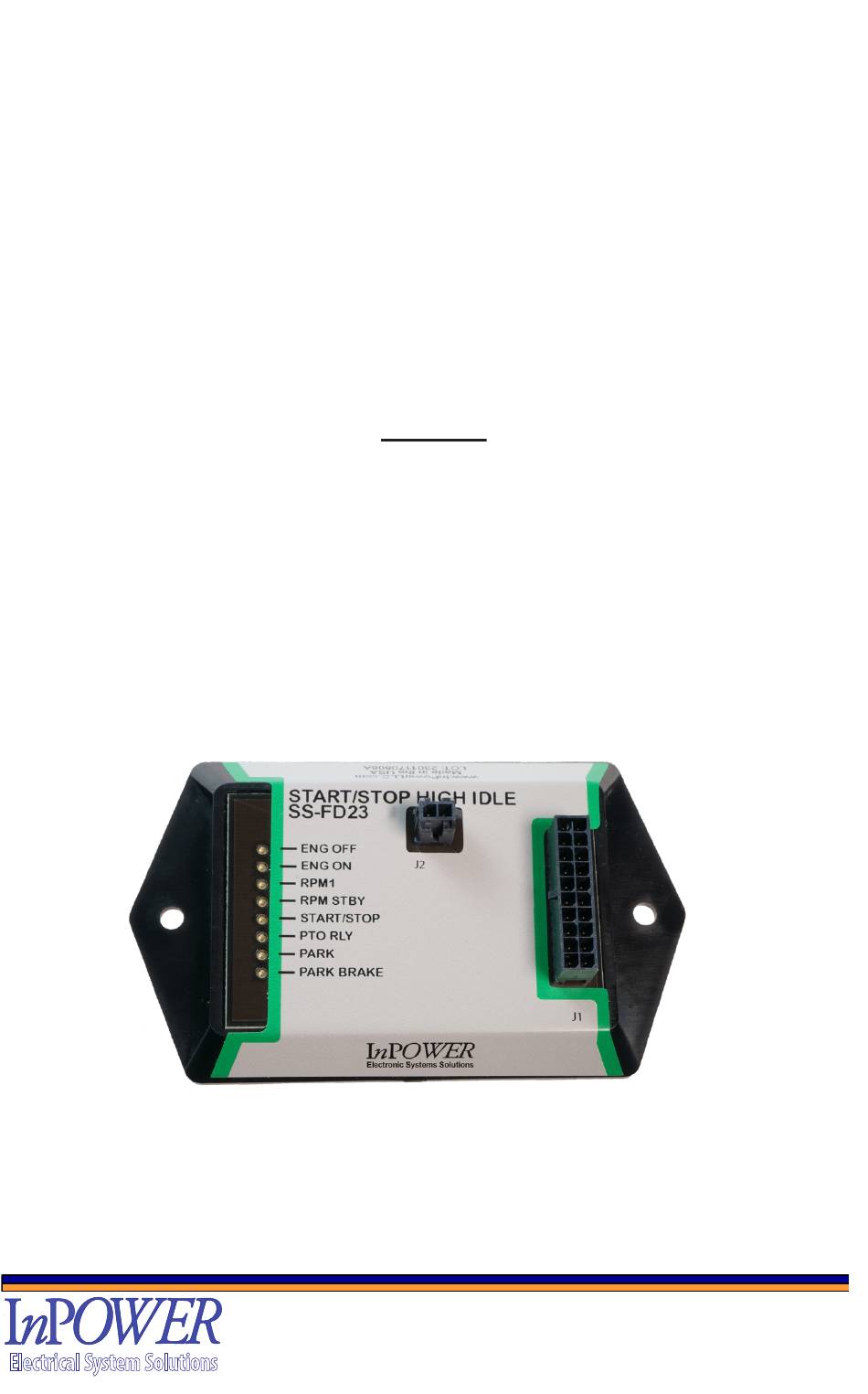

Electronic Start/Stop/Elevated Idle Control Module
1. Introduction........................................ .................... 2
2. Installation Procedures........................... ............... 3
3. Operation ............................................................... 6
4. Mechanical Drawing .............................................. 10
5. Status LED and Troubleshooting ........................... 11
6. Installation Location ............................................... 13
7. Start/Stop Ignition/BCM/SS-FD23 Wiring .............. 16
8. Contact Information ............................................... 16
Electrical System Solutions
© Copyright 2023 InPower LLC
OWNERS MANUAL
InPower Model SS-FD23
for Ford 2023 F250-F600
InPower LLC
8311 Green Meadows Drive
Lewis Center, Ohio 43035 USA
740-548-0965
www.InPowerLLC.com
Contents
SS-FD23 Owner's Manual
Page
Document: OM-255 Version Code: B
1 of 16
Date: May 31, 2023 Date: Aug 31, 2023
Advertisement
Table of Contents
Related Manuals for InPOWER SS-FD23
Summary of Contents for InPOWER SS-FD23
- Page 1 2. Installation Procedures.......... 3 3. Operation ............... 6 4. Mechanical Drawing ..........10 5. Status LED and Troubleshooting ......11 6. Installation Location ..........13 7. Start/Stop Ignition/BCM/SS-FD23 Wiring ....16 8. Contact Information ..........16 SS-FD23 Owner’s Manual InPower LLC Page...
- Page 2 Ignition Switch (Group 1) via Blunt Cut Wires for controlling the engine. Control Interface (Group 2) Blunt Cut Wires connect the control inputs and outputs for the SS-FD23-02 and to the PTO. Cable 1 also provides connections to Battery and Ground, and also provides decoded PARK and PARK BRAKE signals.
-
Page 3: Interface Selection
The cable 2 connects to the Trailer Brake Controller Module (See Page 12) and picks up the Data Bus via a T-Harness. This provides PARK and PARK BRAKE data to the SS-FD23-04 which provides discrete wires to the user for those signals. Truck Body Builder Advisory Service: www.fleet.ford.com/truckbbas/... -
Page 4: Installation
2.1 Safety Precautions This electronic Start/Stop/Elevated Idle product has been designed and manufactured to meet the intended application requirements and specifications. Any modifications to the product or to the installation procedure can be dangerous and will void InPower’s warranty. •... - Page 5 The customer needs to supply switches for the ENABLE, START/STOP, and RPM1 modes. These modes are selected by wires in the Group 1 bundle. The RUN-IN line provides power for the SS-FD23 and if not present, places the unit in an ultra low power state (micro Amperes).
- Page 6 Current State of PARK Output (GND True). Output available if RUN is True. (1A Sink Max) ENABLE 12V Pink IN1- Enable 12V - Wakes up SS-FD23-02 and Enables Functions 1st Gnd Pulse will select RPM1, 2nd Gnd Pulse will return the RPM1 (GND) module to RPMSTBY Violet 12V activates RPM1 as long as it’s present.
-
Page 7: Operation
SS-FD23 Owner’s Manual InPower LLC Page 8311 Green Meadows Drive Document: OM-255 Version Code: B Lewis Center, Ohio 43035 USA 7 of 16 740-548-0965 Date: May 31, 2023 Date: Aug 31, 2023 Electrical System Solutions www.InPowerLLC.com © Copyright 2023 InPower LLC... - Page 8 SS-FD23 Owner’s Manual InPower LLC Page 8311 Green Meadows Drive Document: OM-255 Version Code: B Lewis Center, Ohio 43035 USA 8 of 16 740-548-0965 Date: May 31, 2023 Date: Aug 31, 2023 Electrical System Solutions www.InPowerLLC.com © Copyright 2023 InPower LLC...
- Page 9 The Uninterrupted Ignition Output (Yellow/Red Wire, Group 2) provides a 12V output for equipment that needs a continuous ignition signal. This output is rated at 5A. SS-FD23-02 IGNITION and ENABLE Control for Module Operation Turn On...
- Page 10 SS-FD23 SW Operational Flow Chart Running Engine Stopped Engine Engine Engine Running? RPM Running? RPM via Data Bus via Data Bus RUN Conditions RUN Conditions Check Check Chassis Chassis Conditions Conditions Chassis Conditions Chassis Conditions Met? Met? No vehicle speed...
-
Page 11: Mechanical Drawing
Owners Manual OM-255 Trailer Brake for Location Controller 0.8” Module 0.4” Electrical System Solutions 32” SS-FD23-02 (-04) I/O Harness 72” 0.7” GROUP 3 - SEIC Interface Blunt Cut Wires Lt Blue PTO RLY GROUP 3 - SEIC Wire Color Function... - Page 12 SS-FD23 Owner’s Manual InPower LLC Page 8311 Green Meadows Drive Document: OM-255 Version Code: B Lewis Center, Ohio 43035 USA 12 of 16 740-548-0965 Date: May 31, 2023 Date: Aug 31, 2023 Electrical System Solutions www.InPowerLLC.com © Copyright 2023 InPower LLC...
- Page 13 SS-FD23 Owner’s Manual InPower LLC Page 8311 Green Meadows Drive Document: OM-255 Version Code: B Lewis Center, Ohio 43035 USA 13 of 16 740-548-0965 Date: May 31, 2023 Date: Aug 31, 2023 Electrical System Solutions www.InPowerLLC.com © Copyright 2023 InPower LLC...
- Page 14 SS-FD23 Owner’s Manual InPower LLC Page 8311 Green Meadows Drive Document: OM-255 Version Code: B Lewis Center, Ohio 43035 USA 14 of 16 740-548-0965 Date: May 31, 2023 Date: Aug 31, 2023 Electrical System Solutions www.InPowerLLC.com © Copyright 2023 InPower LLC...
- Page 15 SS-FD23 Owner’s Manual InPower LLC Page 8311 Green Meadows Drive Document: OM-255 Version Code: B Lewis Center, Ohio 43035 USA 15 of 16 740-548-0965 Date: May 31, 2023 Date: Aug 31, 2023 Electrical System Solutions www.InPowerLLC.com © Copyright 2023 InPower LLC...
- Page 16 SS-FD23 Owner’s Manual InPower LLC Page 8311 Green Meadows Drive Document: OM-255 Version Code: B Lewis Center, Ohio 43035 USA 16 of 16 740-548-0965 Date: May 31, 2023 Date: Aug 31, 2023 Electrical System Solutions www.InPowerLLC.com © Copyright 2023 InPower LLC...
