InPOWER ITM129 Manual

A.

Product Description

This product is intended for installation in 2015 Ford Transit chassis with FMVSS
403/404 compliant, commercial public use platform lifts manufactured by The Braun
Corporation, Ricon Corporation or Maxon Mobility. If another type of lift is to be used,
contact the lift manufacturer to determine its compatibility.

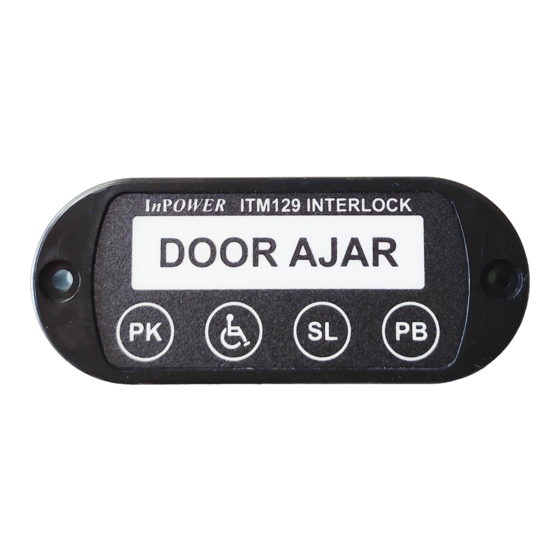

The ITM129 interlock system consists of a control module with integral drivers display
and a chassis wiring harnesses. The system monitors the platform lift door and three
additional doors. If any door is not fully closed the DOOR AJAR light will fl ash. If the
lift door is not fully closed, the shifter will also be locked. The lift will be enabled when
the vehicle is in Park, the parking brake is set and the lift door is opened.
The chassis wiring harness contains two plug-and-play T-cables that connect to the
parking brake switch and shift lock solenoid located under the dash. A set of 60 inch
blunt-cut wires interfaces with the platform lift system and the door switches.
B.

Interlock System Operation

Step 1 - Turn the Ignition Switch on and start the engine.
Step 2 - Press the service brake and place shifter in Park.
Step 3 - Set the parking brake.
• The Shift Lock will activate
Step 4 - Open lift door.
• The display Door Ajar indicator will fl ash
• The Lift Enable will activate allowing operation of platform lift.
Step 5 - The platform lift may now be operated (Refer to the platform
lift operating instructions).
• During the Lift Enable sequence, if the parking brake is
released the Lift Enable will be deactivated, preventing lift
operation.
Step 6 - When the lift cycle is completed return the lift to its fully
stowed position.
Step 7 - Close the lift door.
Step 8 - Release parking brake. When released, the shift lock will be
automatically released.
Step 9 - The cycle is now complete and the vehicle can be taken out
of Park and driven.
Notes:
1. Anytime Doors #1, #2 or #3 are opened (or ajar) the Door Ajar indicator will
fl ash, but the shifter will not lock unless the parking break is also set.
Continued...
Model ITM129
Platform Lift Interlock
2015+ Ford Transit
A. Product Description
This product is intended for installation in 2015 Ford Transit chassis with FMVSS
403/404 compliant, commercial public use platform lifts manufactured by The Braun
Corporation, Ricon Corporation or Maxon Mobility. If another type of lift is to be used,
contact the lift manufacturer to determine its compatibility.
The ITM129 interlock system consists of a control module with integral drivers display
and a chassis wiring harnesses. The system monitors the platform lift door and three
additional doors. If any door is not fully closed the DOOR AJAR light will fl ash. If the
lift door is not fully closed, the shifter will also be locked. The lift will be enabled when
the vehicle is in Park, the parking brake is set and the lift door is opened.
The chassis wiring harness contains two plug-and-play T-cables that connect to the
parking brake switch and shift lock solenoid located under the dash. A set of 60 inch
blunt-cut wires interfaces with the platform lift system and the door switches.
B. Interlock System Operation
Step 1 - Turn the Ignition Switch on and start the engine.
Step 2 - Press the service brake and place shifter in Park.
Step 3 - Set the parking brake.
• The Shift Lock will activate
Step 4 - Open lift door.
• The display Door Ajar indicator will fl ash
• The Lift Enable will activate allowing operation of platform lift.
Step 5 - The platform lift may now be operated (Refer to the platform
lift operating instructions).
• During the Lift Enable sequence, if the parking brake is
released the Lift Enable will be deactivated, preventing lift
operation.
Step 6 - When the lift cycle is completed return the lift to its fully
stowed position.
Step 7 - Close the lift door.
Step 8 - Release parking brake. When released, the shift lock will be
automatically released.
Step 9 - The cycle is now complete and the vehicle can be taken out
of Park and driven.
Notes:
1. Anytime Doors #1, #2 or #3 are opened (or ajar) the Door Ajar indicator will
fl ash, but the shifter will not lock unless the parking break is also set.
Continued...
Model ITM129
Platform Lift Interlock
2015+ Ford Transit
