OWNER'S MANUAL
LALIZAS Inflatable Lifejackets Lamda, SOLAS/MED
LALIZAS Inflatable Lifejacket Lamda, Auto, 150N, SOLAS/MED (code: 71107)
LALIZAS Inflatable Lifejacket Lamda, Auto, 150N, with Zipper, SOLAS/MED (code: 711071)

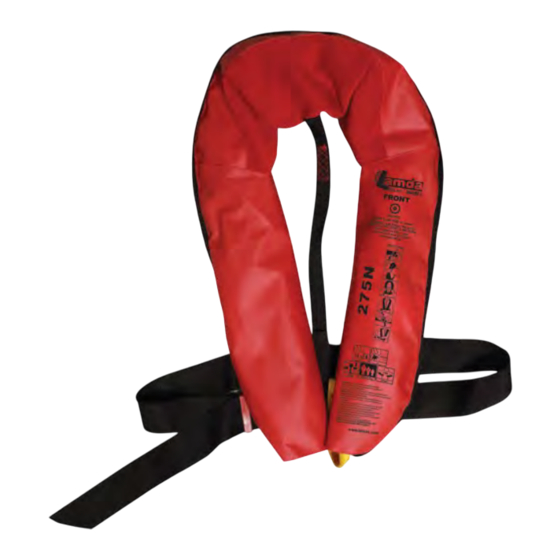

LALIZAS Inflatable Lifejacket Lamda, Auto, 275N, SOLAS/MED (code: 71216)
LALIZAS Inflatable Lifejacket Lamda, Auto, 275N, with Zipper, SOLAS/MED (code: 712162)
LALIZAS Inflatable Lifejacket Advanced Lamda, Auto, 330N, with Crotch Strap, SOLAS/MED (code: 72114)
LALIZAS Inflatable Lifejacket Advanced Lamda, Auto, 330N, with Sprayhood & Crotch Strap, SOLAS/MED (code: 72115)
DO NOT REMOVE PRIOR TO SALE!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lalizas 71107
Summary of Contents for Lalizas 71107
- Page 1 LALIZAS Inflatable Lifejacket Lamda, Auto, 275N, with Zipper, SOLAS/MED (code: 712162) LALIZAS Inflatable Lifejacket Advanced Lamda, Auto, 330N, with Crotch Strap, SOLAS/MED (code: 72114) LALIZAS Inflatable Lifejacket Advanced Lamda, Auto, 330N, with Sprayhood & Crotch Strap, SOLAS/MED (code: 72115) DO NOT REMOVE PRIOR TO SALE!
-
Page 2: Important Message
Cylinder 33 or 60 gram in accordance with the relevant model, 1/2-inch thread Available in one adult size, which can be easily adjusted to passengers with chest size up to 175cm or more, with the use of the LALIZAS Waist Belt Extender (71161) - Page 3 In order to don your lifejacket, follow the below steps: 1. Remove the lifejacket from the storage bag. Unfasten the stainless steel interlocking buckle/buckles. 2. Wear the lifejacket as you would wear a jacket. 3. Fasten the buckle/buckles. 4. Tighten the waist belt. Adjust the strap. 5.
- Page 4 In case the zipper has dents, cracks, missed teeth, damaged zipper slider or the zipper slider is stuck then contact a LALIZAS authorized Service Station, in order to perform service of the lifejacket Make sure that LALIZAS lifejacket light SOLAS and LALIZAS whistle are attached and that retroreflective tapes SOLAS have no signs of deterioration.
-
Page 5: Service Intervals
Examine the inflation mechanism status indicators. The Inflation Mechanism Status Indicators will tell you if the inflation mechanism is properly ARMED/REARMED and ready for activation. See below for a description of the inflator status indicators: includes the indications to when a LALIZAS automatic inflator is ready for use (OK) and to when it should be serviced (STOP). - Page 6 Then repeat 3.10 to check its function. Note: LALIZAS recommends that in every annual inspection of the lifejacket, the water-activated device (code 00340) should be checked for its good condition and if necessary you replace it.
- Page 7 DO NOT TWIST OR WRING INFLATABLE CHAMBER/s TO DEFLATE. If for any reason the oral valve remains open, depress it several times. If it does not release, discontinue use of this lifejacket and take it to a LALIZAS authorised Service Station.
- Page 8 For models 150N (code 711071) & 275N (code 712162) with zipper: For models 330N (code 71214) & 330N (code 71215) with hook and loop fastener: Assembly and packing instructions of the LALIZAS Sprayhood for SOLAS Inflatable Lifejackets (code 72113):...
-
Page 9: Freezing Temperatures
Suitable for LALIZAS Lamda & Delta inflatable lifejackets as per the table below: Code Description 71107 LALIZAS Inflatable Lifejacket Lamda, Auto, 150N, SOLAS/MED 711071 LALIZAS Inflatable Lifejacket Lamda, Auto, 150N, w/ Zipper, SOLAS/MED 71216 LALIZAS Inflatable Lifejacket Lamda, Auto, 275N, SOLAS/MED... - Page 10 1. Physical Inspection of Cover, Straps and Chambers - Examine outer shell fabric, seams, webbing attachments, buckles, slides, etc. Fabric fading can indicate a loss of strength. Check for strength by pulling seams and attachments snugly. If device shows any signs of damage, return to a LALIZAS authorised Service Station or replace the entire lifejacket.
- Page 11 Using the 2 oral & relief tube (double) LALIZAS recommends that you purchase automatic rearming kits. The rearming kit for this device is available upon request. By doing this, you demonstrate that the automatic inflation system is still working properly and reduce the likelihood of premature inflation and its associated dangers. The only check of the 2 manual inflation system (with CO2 cylinder and green indicator tab removed) would be to determine that the lever and piercing pin move freely when moving the lever (attached to the manual lever) several times down and up, as explained previously in this manual.
- Page 12 • Lithium battery: Ensures 5 year lifetime and more than 8 hours of continuous operation. Smoother and easier waste batteries management Code 72349 Code 72348 LALIZAS Lifejacket LED flashing light “Safelite IV” LALIZAS Lifejacket LED flashing light “Alkalite II” ON-OFF water activated, USCG/SOLAS/MED...
