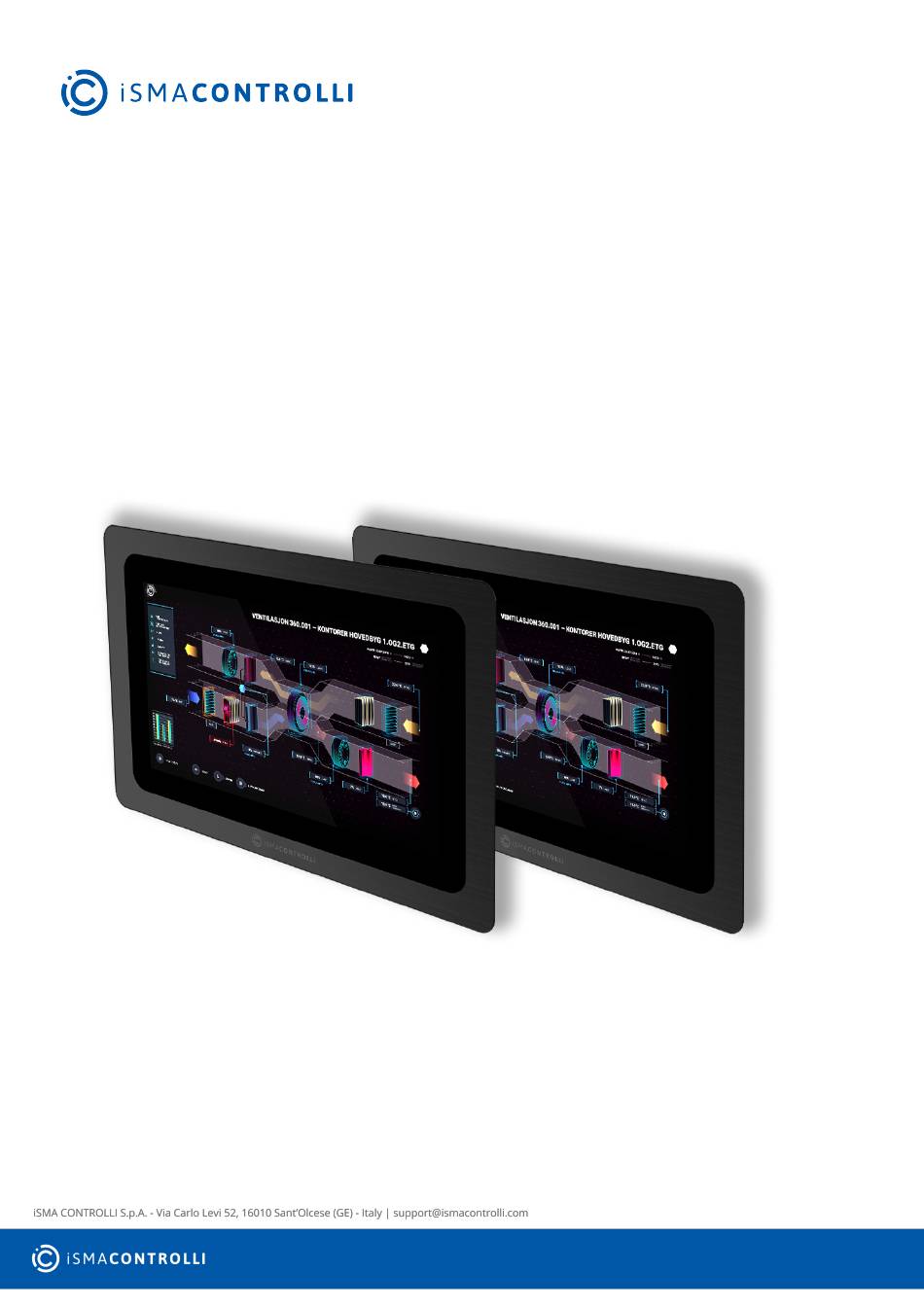

- Page 1 User Manual Industrial LCD Panel www.ismacontrolli.com DMP222en | 1st Issue rev. 3 | 11/2023...
-
Page 2: Table Of Contents
User Manual Table of Contents Introduction ............................ 3 Revision History............................3 Safety Rules............................. 4 Technical Specification ......................... 5 Standards and Norms ........................7 Dimensions ............................. 8 Interfaces............................9 Operation Guide ..........................10 Rear Navigation Buttons ........................10 OSD Options - Adjustment........................ 10 Installation .............................13... -
Page 3: Introduction
User Manual 1 Introduction The iSMA-D-PD10C-B1 is 10.1'' is an industrial LCD panel, which has been designed to simplify the use of MAC36 controllers, iSMA-B-MAC36NL and iSMA-B-MAC36PRO. The LCD panel is equipped with multiple interfaces to accelerate the connection with the master controller. -
Page 4: Safety Rules
User Manual 2 Safety Rules • Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on. • Before wiring or removing/mounting the product, make sure to turn the power off. -
Page 5: Technical Specification
User Manual 3 Technical Specification Panel Type HD industrial TFT LCD Screen Type LED; backlight lifetime ≥50000 h, Size 10.1’’ Aspect Ratio 16:9 Luminance 300 nit, up to 800 nit Contrast 800:1 Active Area 222.7x125.2 mm Display Color 16.7 M Point Distance 0.264 mm... - Page 6 User Manual Humidity Operation humidity: 10% to 80% Storage humidity: 10% to 90% Anti-static 4 KV-8 KV; (customized MAX 16 KV) Rated Voltage 100 V AC～240 V to 12 V-24 V DC Rated Frequency 50 Hz/60 Hz Power Supply 110-240 V AC, 50/60 Hz Power Power consumption ≤...
-
Page 7: Standards And Norms
User Manual 4 Standards and Norms EN 55032:2015 Electromagnetic compatibility of multimedia equipment. Emission Requirements. EN 61000-3-2:2014 Electromagnetic compatibility (EMC). Limits for harmonic current emissions for equipment input current ≤ 16 A per phase). EN 61000-3-3:2013 Electromagnetic compatibility (EMC). Limits for voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤... -
Page 8: Dimensions
User Manual 5 Dimensions Figure 2. Dimensions of iSMA-D-PD10C-B1 www.ismacontrolli.com DMP222en | 1st Issue rev. 3 | 11/2023 page 8 of 13... -
Page 9: Interfaces
User Manual 6 Interfaces The monitor recognizes and selects the signal automatically. Figure 3. Interface details www.ismacontrolli.com DMP222en | 1st Issue rev. 3 | 11/2023 page 9 of 13... -
Page 10: Operation Guide
User Manual 7 Operation Guide 7.1 Rear Navigation Buttons The rear navigation buttons are used to turn the device on and off. Brightness +/- buttons are prepared for future development: Figure 4. Rear navigation buttons Symbol Name Instruction Left... - Page 11 User Manual Figure 5. Images adjustment Figure 6. Menu adjustment Figure 7. Settings adjustment www.ismacontrolli.com DMP222en | 1st Issue rev. 3 | 11/2023 page 11 of 13...
- Page 12 User Manual Figure 8. Information menu www.ismacontrolli.com DMP222en | 1st Issue rev. 3 | 11/2023 page 12 of 13...
-
Page 13: Installation
User Manual 8 Installation • Do not place the monitor next to the radiator or heat source. • Do not let any objects press or twine around the power cable or VGA cable. • Do not place the monitor near to water source or humid places.
