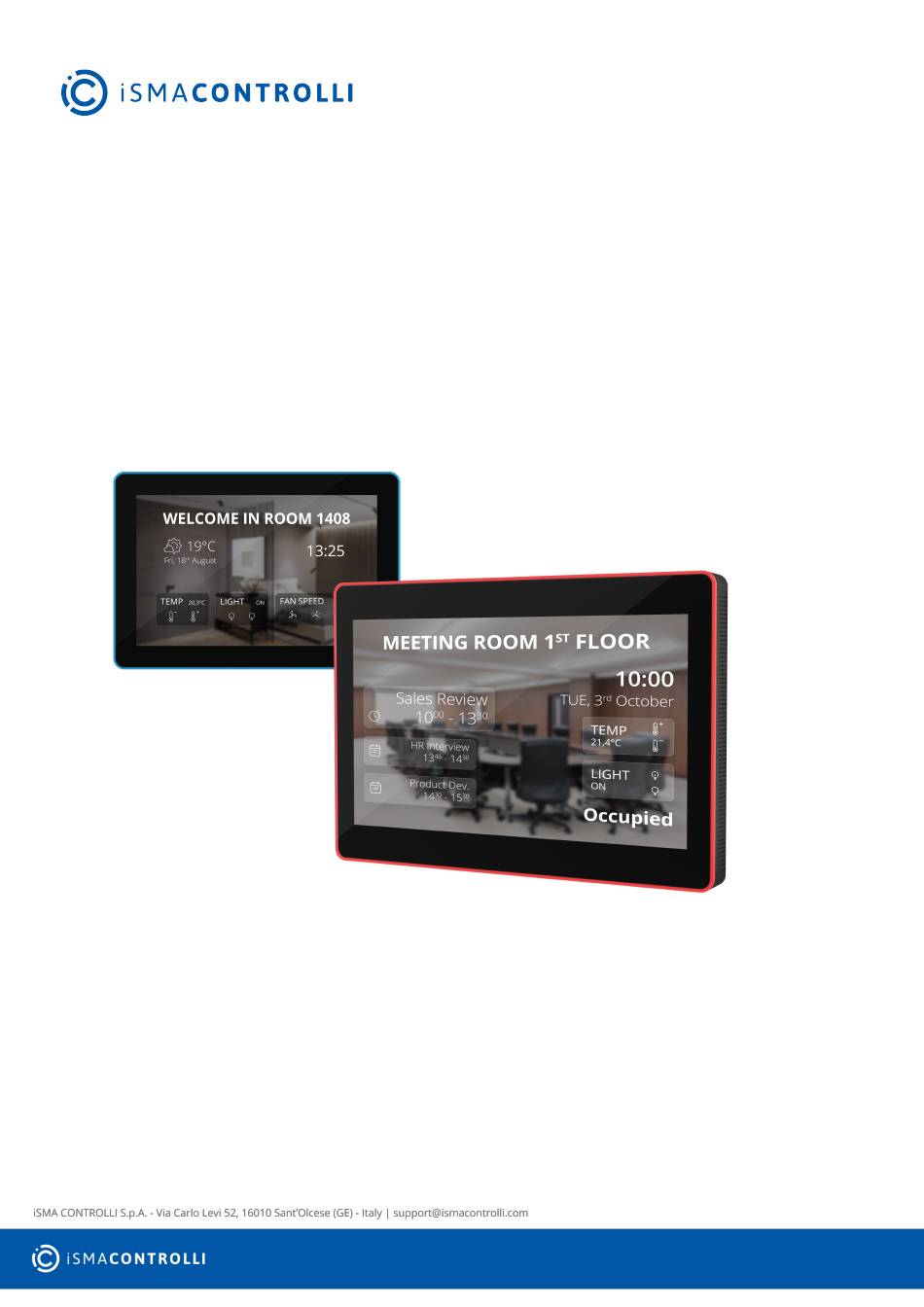

- Page 1 PA-LED User Manual Android LED Panels www.ismacontrolli.com DMP298en | 1st Issue rev. 0 | 11/2023...
-
Page 2: Table Of Contents
PA-LED User Manual Table of Contents Introduction ............................ 3 Revison History ............................3 Safety Rules............................. 4 Technical Specification ......................... 5 PA-LED10 ..............................5 PA-LED13 ..............................6 Standards and Norms ........................8 EN 55022:2010+AC:2011 ........................8 EN 61000-3-2:2014 ..........................8 EN 61000-3-3:2013 ..........................8 EN 55024:2010 + A1:2015 ........................8 EN 60950-1:2006 + A11:2002 + A1:2010 + A12:2011 + A2:2013..........8... -
Page 3: Introduction

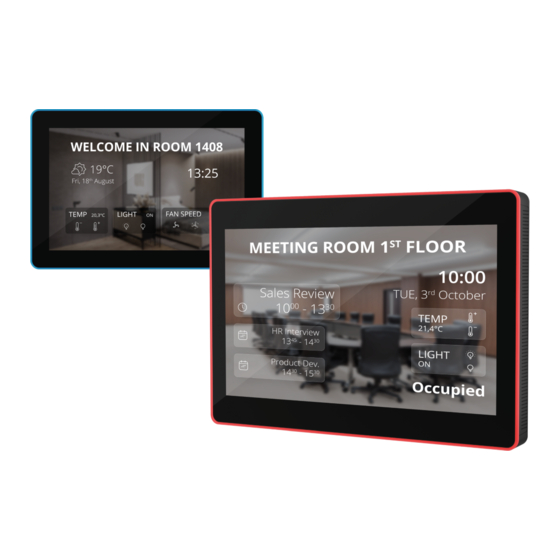

PA-LED User Manual 1 Introduction The PA-LED family are LCD room panels with LED bars, designed for commercial applications. Powered by the Android operating system and equipped with the dedicated iC SmartView application, these panels offer excellent operation in a variety of... -
Page 4: Safety Rules
PA-LED User Manual 2 Safety Rules • Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on. • Before wiring or removing/mounting the product, make sure to turn the power off. -
Page 5: Technical Specification
PA-LED User Manual 3 Technical Specification 3.1 PA-LED10 Power supply Power input 12 V DC / 1.5 A PoE+ IEEE802.3at, class 4, 25.5 W Power adapter for EU, US, and UK UL listed 100-240 V AC Platform Operating system Android 11... -
Page 6: Pa-Led13
PA-LED User Manual RJ45 RJ45 with PoE+ (IEEE802.3at), class 4, 25.5W WiFi 802.11 b/g/n Bluetooth Bluetooth 4.2 Audio 3.5 mm earphone 2 speakers, 1.5 W Temperature Operating 0°C to 40°C/32°F to 104°F Storage -20°C to 60°C/-4°F to 140°F Humidity Relative humidity... - Page 7 PA-LED User Manual Contrast 800:1 Luminance 250 cd/m2 Active area 293.76 x 165.24 mm / 11.57 x 6.51 in View angle 85/85/85/85 LED light bar LED light bar with RGB and mixed colors Media Audio MP3/WMA/AAC, etc. Video MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1,VP8, etc., support up to 4K...
-
Page 8: Standards And Norms
PA-LED User Manual 4 Standards and Norms 4.1 EN 55022:2010+AC:2011 Electromagnetic compatibility of multimedia equipment. Emission Requirements. 4.2 EN 61000-3-2:2014 Electromagnetic compatibility (EMC). Limits for harmonic current emissions for equipment input current ≤ 16 A per phase). 4.3 EN 61000-3-3:2013 Electromagnetic compatibility (EMC). -
Page 9: Dimensions
PA-LED User Manual 5 Dimensions 5.1 PA-LED10 Figure 2. PA-LED10 dimensions www.ismacontrolli.com DMP298en | 1st Issue rev. 0 | 11/2023 page 9 of 15... -
Page 10: Pa-Led13
PA-LED User Manual 5.2 PA-LED13 Figure 3. PA-LED13 dimensions www.ismacontrolli.com DMP298en | 1st Issue rev. 0 | 11/2023 page 10 of 15... -
Page 11: Interfaces
PA-LED User Manual 6 Interfaces 6.1 PA-LED10 Figure 4. PA-LED10 interfaces 6.2 PA-LED13 Figure 5. PA-LED13 interfaces www.ismacontrolli.com DMP298en | 1st Issue rev. 0 | 11/2023 page 11 of 15... -
Page 12: Installation
PA-LED User Manual 7 Installation 7.1 PA-LED10 Figure 6. PA-LED10 installation www.ismacontrolli.com DMP298en | 1st Issue rev. 0 | 11/2023 page 12 of 15... -
Page 13: Pa-Led13
PA-LED User Manual 7.2 PA-LED13 www.ismacontrolli.com DMP298en | 1st Issue rev. 0 | 11/2023 page 13 of 15... - Page 14 PA-LED User Manual Figure 7. PA-LED13 installation www.ismacontrolli.com DMP298en | 1st Issue rev. 0 | 11/2023 page 14 of 15...
-
Page 15: Android System
In case any custom modifications or any other changes are introduced to the Android system originally installed on the equipment, the warranty automatically expires. The only exception is when the iSMA CONTROLLI itself announces the possibility of introducing custom modifications to the Android system originally installed on the equipment precisely specifying the range of such modifications.
