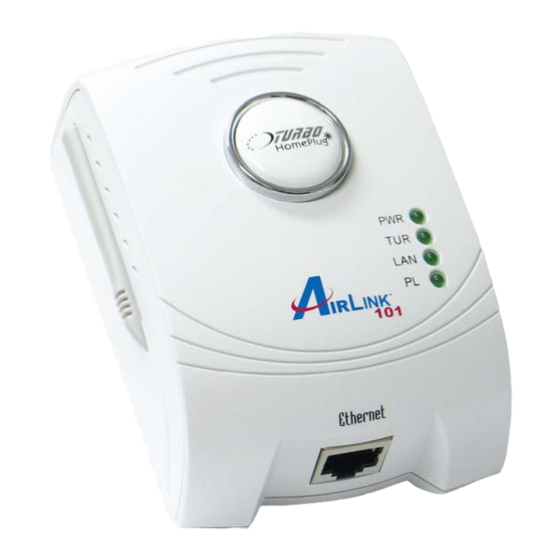

Turbo 85 Mbps Powerline Ethernet Adapter
Model # APL8511

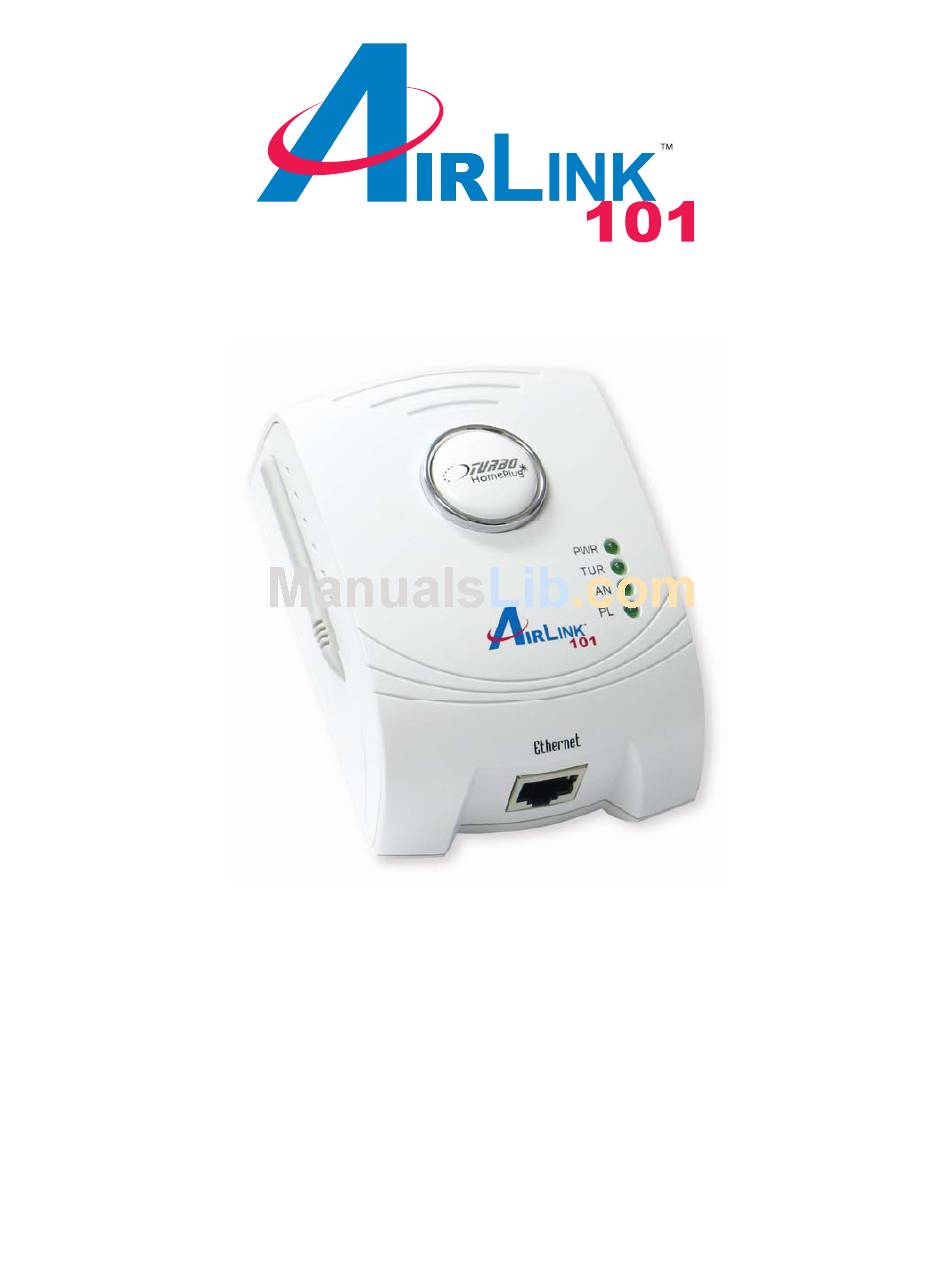

User's Manual
Ver. 1A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APL8511 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airlink101 APL8511

Summary of Contents for Airlink101 APL8511

  • Page 1 Turbo 85 Mbps Powerline Ethernet Adapter Model # APL8511 User’s Manual Ver. 1A...

  • Page 2: Table Of Contents

    1. Introduction... 3 1.1 Package Contents ... 3 1.2 Features ... 3 2. Installing Adapters ... 4 3. Installing Security Software... 5 4. Using the Powerline Security Software ... 6 4.1 Main Tab... 6 4.2 Encryption Tab... 9 4.3 Diagnostics Tab ... 11 4.4 About Tab ...

  • Page 3: Introduction

    1. Introduction Thank you for purchasing the Turbo 85 Mbps Powerline Ethernet Adapter. This adapter transforms your home’s powerline into an instant home network, allowing you to easily share high-speed Internet access, online gaming, videos and much more within seconds. Just follow the quick and easy steps in this guide to setup your home network. 1.1 Package Contents Before you begin the installation, please check the items of your package.

  • Page 4: Installing Adapters

    PC, gaming console, or other network device and connect the other end to the Powerline Adapter. Plug the Powerline Adapter into an electrical outlet. Your home network is ready for use! For maximum performance and compatibility, use additional AirLink101™ Powerline Adapters as needed.

  • Page 5: Installing Security Software

    3. Installing Security Software The Powerline Adapter includes an optional security software you can install to protect your home network against eavesdroppers and hackers. Follow the instructions in this section to install the security software. Step 1 Insert the provided CD into your CD drive and select Install Utility from the menu.

  • Page 6: Using The Powerline Security Software

    4. Using the Powerline Security Software Double-click on the PowerLine Icon on your desktop to start the software. 4.1 Main Tab The Main Tab displays your local powerline adapter as well as other remote adapters detected by the software. The Local Device is the powerline adapter connected directly to your computer. All other powerline adapters are listed under the Powerline Devices list.
  • Page 7 Enter Password: In order to configure another adapter remotely, you’ll need to enter its physical password first. Select the desired adapter from the list and click on the Enter Password button. The adapter’s password is printed on the back label. Once the password is successfully entered, it will appear in the device list.
  • Page 8 Add: To manually add an adapter to the device list, click on the Add button. Enter the Device Name and its password and click OK. The newly added adapter will appear in the device list. Scan: Click on the Scan button to scan for all available powerline adapters.

  • Page 9: Encryption Tab

    4.2 Encryption Tab The Encryption tab allows you to setup security encryption for your network. You need to connect the adapter directly to your computer to configure the encryption setting. All adapters in your home must use the same Encryption Key. Step 1 With the adapter plugged into the electrical outlet, connect the adapter directly to your computer and go to the Encryption tab.
  • Page 10 To check if your network is secured, go to the Main tab and verify that the Network Type is Private.

  • Page 11: Diagnostics Tab

    4.3 Diagnostics Tab The Diagnostics tab displays information about all the powerline adapters in your home. To generate a text report, click on the Text Report button. You can also save or print the report by clicking on the respective buttons.

  • Page 12: About Tab

    4.4 About Tab The About tab displays the version number of the Powerline Security Software. If you wish to disable Auto-scanning of powerline adapters upon startup, uncheck the AutoScan check box.

  • Page 13: Specifications

    5. Specifications Connectivity • Data rate up to 85Mbps • 10/100 auto sensing for Ethernet port Powerline • HomePlug v1.0 compliant • 56-Bit DES Hardware Encryption • Intellon chip • Compliant with IEEE 802.3/802.3u Software Utility • Security control • Monitoring tool Software Requirements (optional) •...

  • Page 14: Technical Support

    Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Web Site: www.airlink101.com * Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Copyright ©2006...
