PACKAGE CONTENTS
A- 15 in. Telecommunication Center
with UL Rated Fire Safety Tape
B- (4) Surface Mounting Brackets
C- (4) Surface Mounting Bracket Screws
Flush Mount Installation
1
PLACING THE ENCLOSURE
Place the Telecommunications Center (A) in the install
location. For the flush mount install you will not need
Surface Mounting Brackets (B) or Surface Mounting
Bracket Screws (C). It is normal for the enclosure to flex so
that it can fit between the studs.
3
INSTALLING THE ENCLOSURE
Secure the two tabs to the studs using the included Metal
Wood Screws (F) and a Phillips Head Screwdriver.
Safety Information
Please read all instructions and safety information before use.
Retain this manual for future reference.
CAUTION: When using tools always follow the
manufacturer's safety guidelines.
ETL LISTED
CONFORMS TO
UL STANDARD 2416
CERTIFIED TO
CSA STD C22.2 NO
5015295
60950-1
D- (4) Screw Cover Screws
E- (1) Plastic Screw Cover
F- (4) Metal Wood Screws
G- (1) Cardboard Dust Cover
2
A
4
F
The back of the enclosure is covered with UL Rated Fire Safety Tape
to comply with safety standards. To install modules and components,
simply push them through the UL Rated Fire Safety Tape.
NOTE: this enclosure is a distribution panel for low voltage
wiring systems. It is not designed to be used as an AC power
distribution panel. Use only Class 2 powered or passive
devices.
Never install low voltage wiring during lightning storms.
Never install low voltage wiring in wet locations unless the
wire is specifically designed for wet locations
On-wall maximum load rating: 10kg (22lbs)
RoHS Compliant

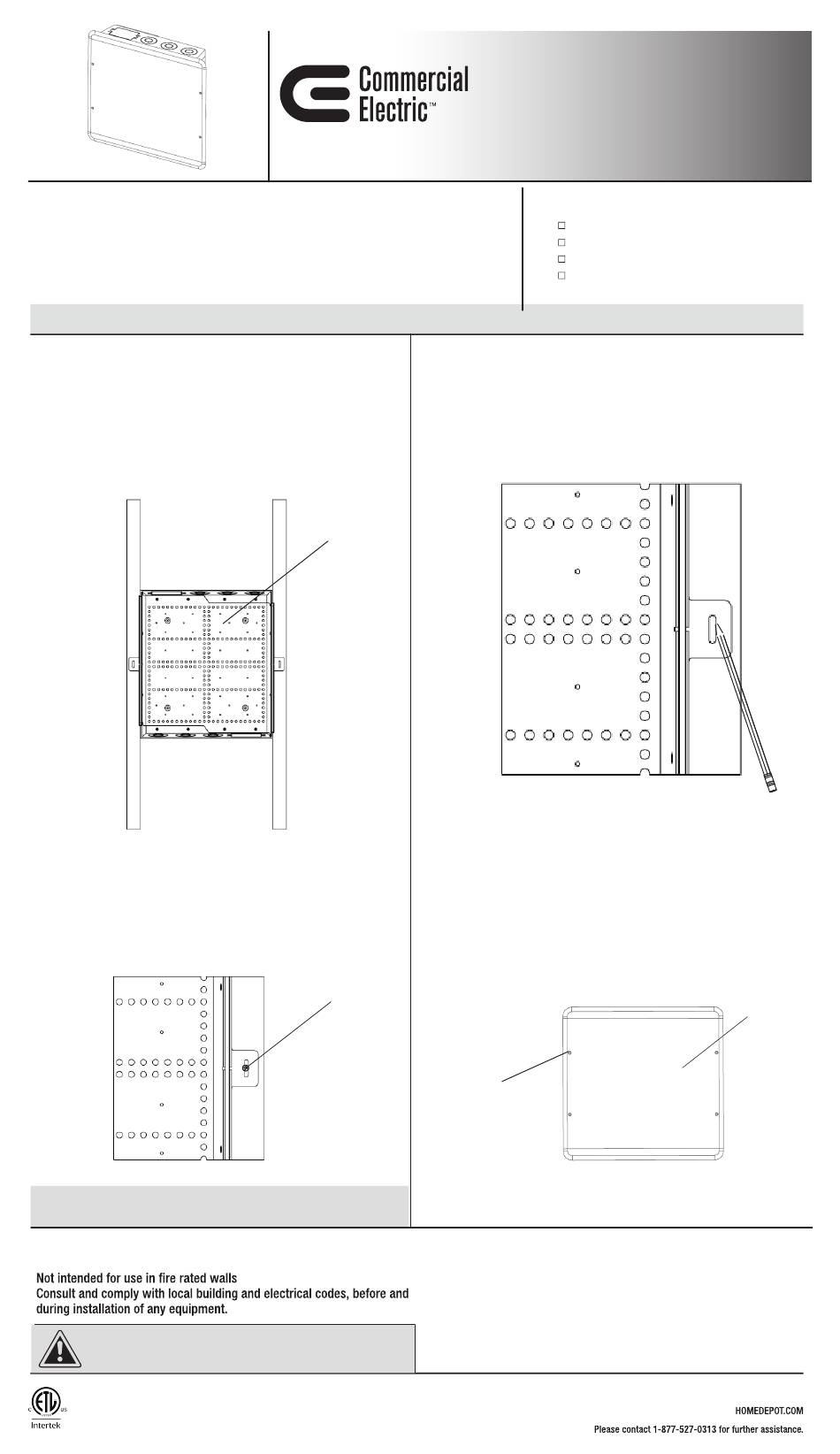

Installation Guide
15 inch Telecommunication Center
TOOLS NEEDED
Phillips Head Screwdriver
Utility Knife
Pencil/Pen
Level
MARKING THE SCREW LOCATIONS
Make sure the Telecommunication Center is level and
mark the two screw locations on the studs using a pen or
pencil.
INSTALLING THE SCREW COVER
Once you have run wires and loaded the enclosure, you can install
the cardboard dust guard (G) by slipping the cardboard edges
straight back into the enclosure. Install the drywall over the
location. After sanding and painting the drywall, you can remove
the cardboard dust guard. Complete installation by securing the
cover (E) to the enclosure using the included Cover Screws (D) and
a Phillips Head Screwdriver.
D
Item # 1005485166
Model #5516-VN
E
Rev. 01/06/2023
