injected mounting bracket system

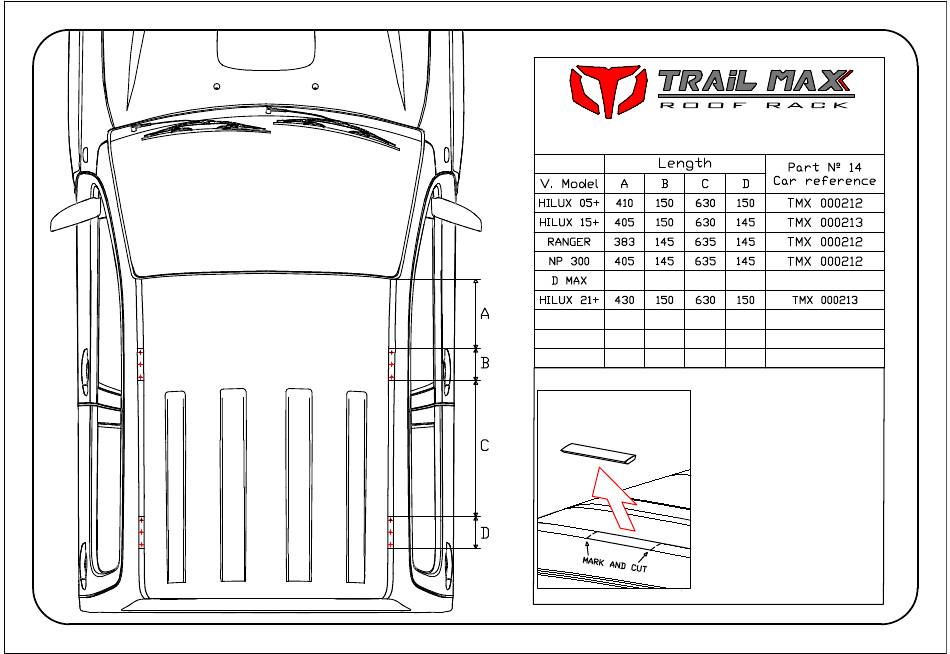

Position brackets using
measurements from previous
table.
Cut crossing the rubber over
the ditch ensuring you do not
damage painted vehicle
surface, them remove
sections "B" and "D" to fit item
14.
Inspect for paint scratch and fill
with anti-corrosive spray paint.
