IMPORTANT! Read entire instruction sheet
before you start installation and assembly.
• Installer must verify that the wall will safely support four times the combined weight of all attached equipment and
hardware.
• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.
Installations:
To Wood Stud Walls .......................................................................................................... page 3
To Solid Concrete, Cinder Block, or Brick Walls ................................................................. page 4
Visit the Westinghouse Web Site at www.westinghousedigital.com

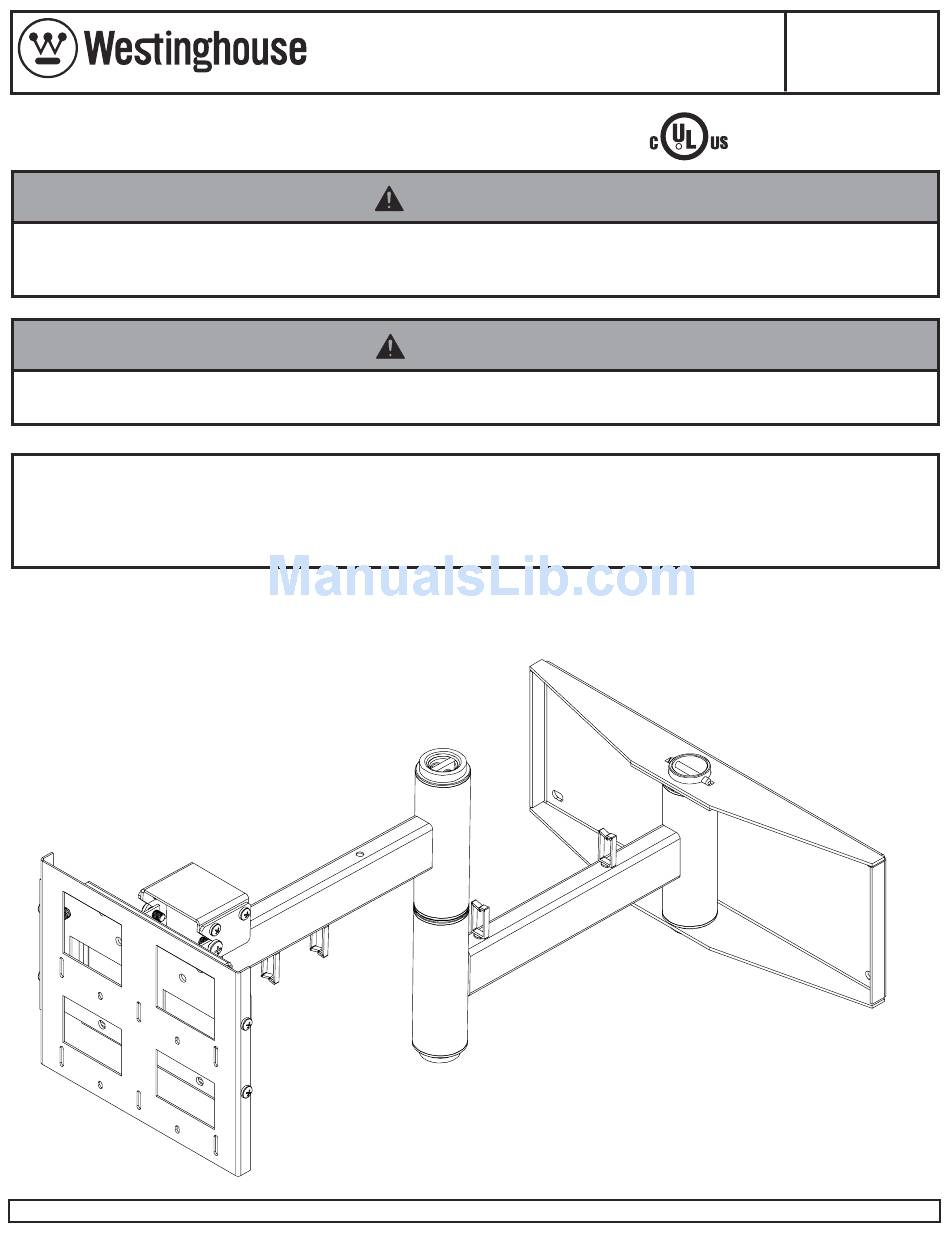

Installation and Assembly - Adjustable Flat
Panel Wall Arm
MAX LOAD CAPACITY: 90 lb (40.9 kg)
WARNING
WARNING
1 of 9
Model:
MT90 ARM29
This product is UL Listed. It
must be installed by a qualified
R
professional installer.
ISSUED: 05-21-04 SHEET #: 201-9226-1
For customer service call 1-866-287-5555.
Advertisement
Related Manuals for Westinghouse MT90 ARM29
Summary of Contents for Westinghouse MT90 ARM29
- Page 1 Installations: To Wood Stud Walls ... page 3 To Solid Concrete, Cinder Block, or Brick Walls ... page 4 Visit the Westinghouse Web Site at www.westinghousedigital.com Installation and Assembly - Adjustable Flat Panel Wall Arm MAX LOAD CAPACITY: 90 lb (40.9 kg)
-
Page 2: Parts List
M4 x .7 x 16 mm phillips screw S 590-1116 .5 OD x .44 ID x .19 bushing Some parts may appear slightly different than illustrated. Visit the Westinghouse Web Site at www.westinghousedigital.com 2 of 9 ISSUED: 05-21-04 SHEET #: 201-9226-1 For customer service call 1-866-287-5555. - Page 3 • Make sure that mounting screws are anchored into the center of the studs. The use of an "edge to edge" stud finder is highly recommended. Visit the Westinghouse Web Site at www.westinghousedigital.com 3 of 9 ISSUED: 05-21-04 SHEET #: 201-9226-1...
- Page 4 If plaster/drywall is thicker than 5/8", custom fasteners must be supplied by installer. CORRECT mounting concrete plate plaster/ dry wall Visit the Westinghouse Web Site at www.westinghousedigital.com WARNING INCORRECT concrete mounting plate plaster/ dry wall 4 of 9...
- Page 5 Insert swivel weldment (B) through swing arm (E). Align holes in swivel bracket (D) with holes in swivel weldment (B) and secure with four M6 x 10 mm phillips screws (M) as shown. Visit the Westinghouse Web Site at www.westinghousedigital.com WARNING 5 of 9...
- Page 6 Bottom plate (Q) will also have one set of threaded holes on one side and a set of non-threaded holes on the other side. All four M6 screws (M) should pass through non-threaded holes first and into threaded holes. Visit the Westinghouse Web Site at www.westinghousedigital.com FOR VESA 100 X 200 MOUNTING PATTERN...
- Page 7 1/4" Hook roll pitch assembly (F)/flat panel onto swivel bracket (D). Visit the Westinghouse Web Site at www.westinghousedigital.com Attach roll pitch assembly (F) to top plate (P) using four M10 x 15 mm phillips screws (O). FLAT PANEL MAY APPEAR DIFFERENT...
- Page 8 Snap four cable clips (G) into swing arm assembly (E) as shown. 8 of 9 ISSUED: 05-21-04 SHEET #: 201-9226-1 Visit the Westinghouse Web Site at www.westinghousedigital.com For customer service call 1-866-287-5555.
- Page 9 REPAIR OR REPLACEMENT – For a period of five (5) years from the original date of purchase, Westinghouse Digital Electronics will repair any defect in material or workmanship in the Product, or, at its option, replace a defective Product.
