Summary of Contents for ExBrite ZPFL5215DCFMLED

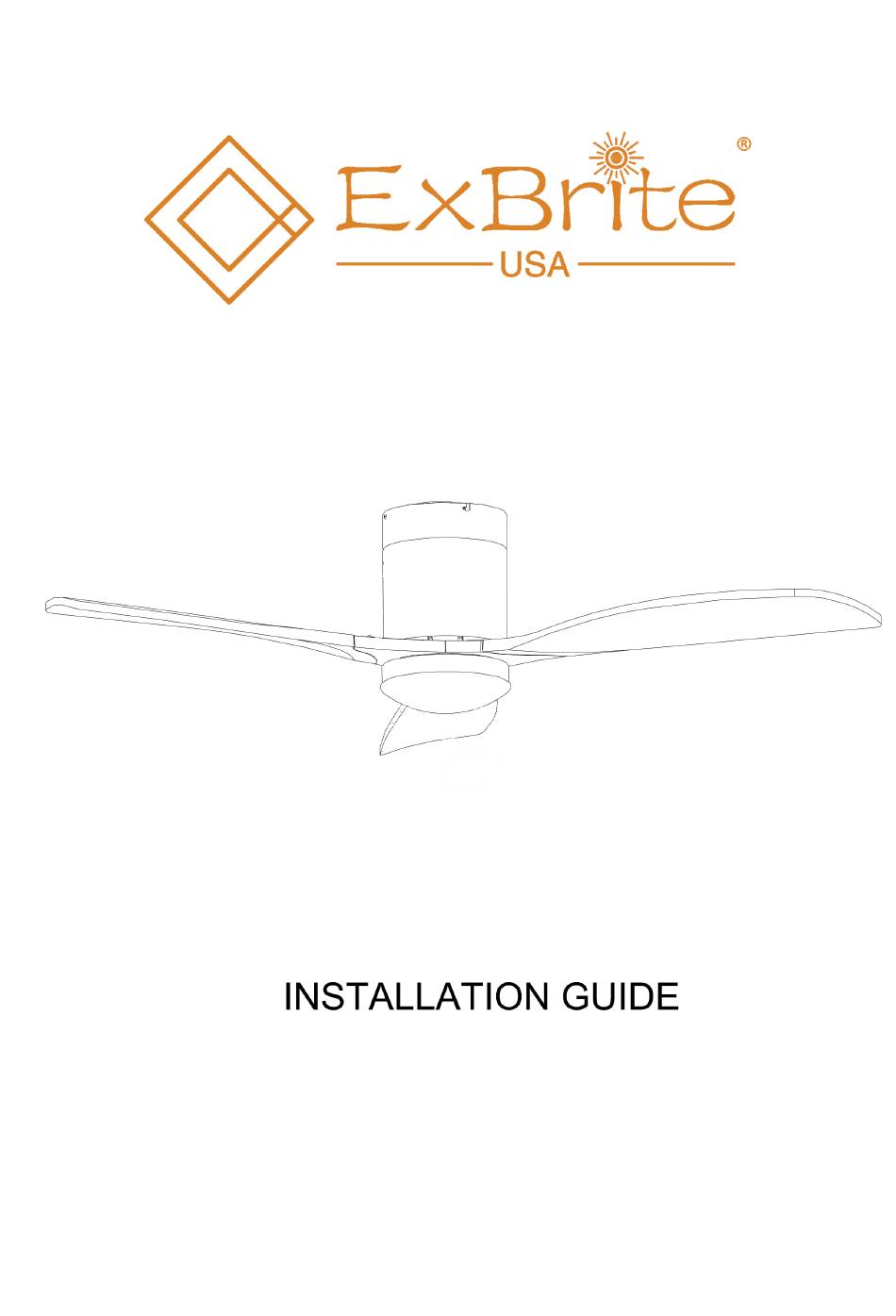

- Page 1 ZPFL5215DCFMLED...
- Page 2 ExBrite ExBrite...
- Page 3 Installation Guide Balance pieces Ceiling plate x1 Remote control x1 Lamp panel x1 Motor x1 Blade x3 Leaf Fork X3 LED light source x1 Glass shade x1...
-
Page 4: Ceiling Plate
Step1: Use self-tapping screws to lock the hanger to the wood ceiling Ceiling plate... - Page 5 Step2: Input L Input N 1.The remote control receiver is wired according to the diagram above. After connecting, put the remote control receiver on the motor 2.Align the latch on the top of the motor with the screw on the ceiling plate and turn it to the right 3.Use screws to lock the motor and ceiling plate...
- Page 6 → Pack screw Align the blade holes with the motor screw holes, tighten the screw and secure all blades. Place a paper pad on each screw and then secure the blade arm to the blade. Note: Tighten the blade screw twice...
- Page 7 snge-pnpug Turn the glass lampshade to lock the lamp pan...
