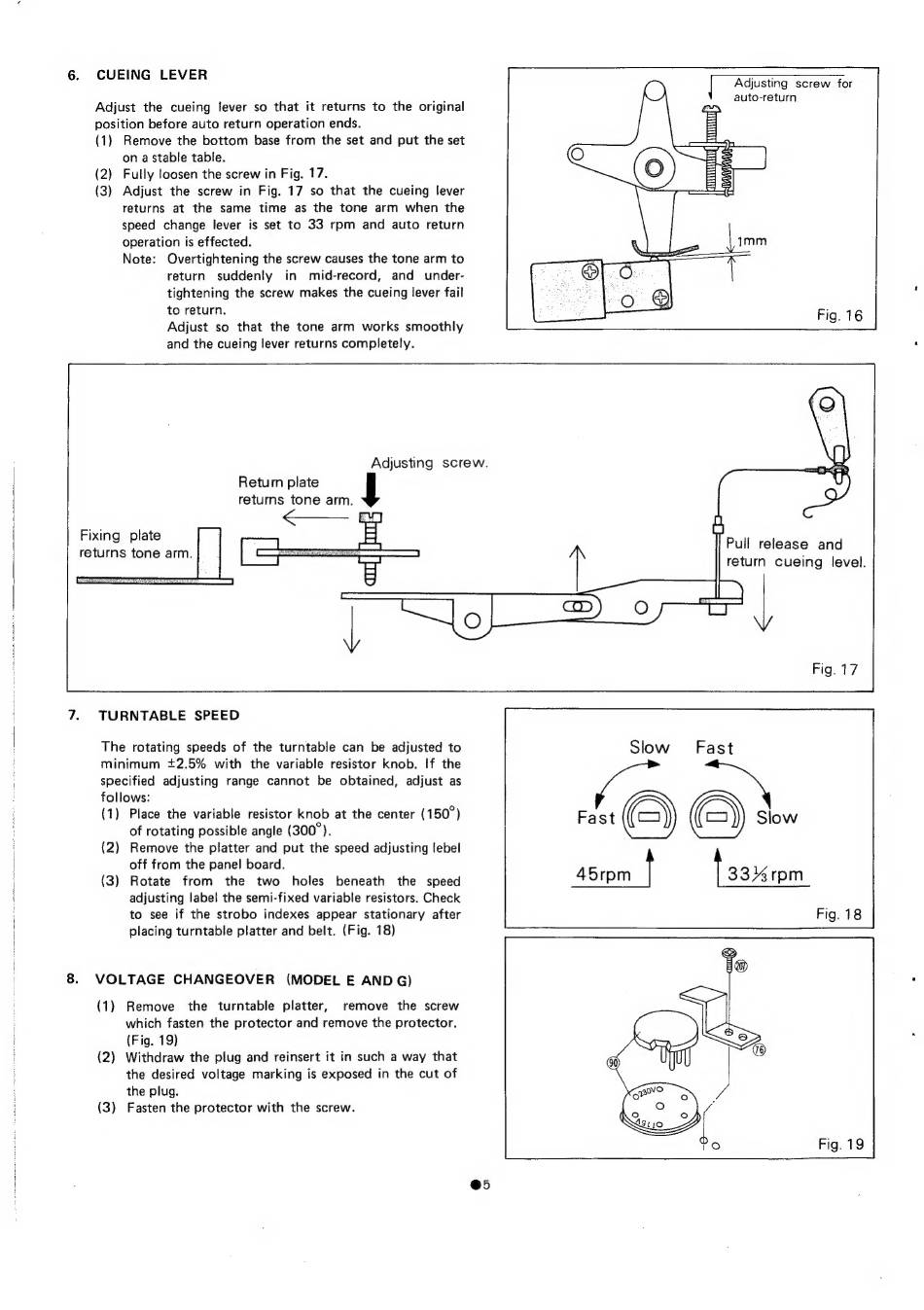

6. CUEING LEVER
Adjusting screw for
auto-return
Adjust the cueing lever so that it returns to the original
position before auto return operation ends.
(1) Remove the bottom base from the set and put the set
on a stable table.
(2) Fully loosen the screw in Fig. 17.
(3) Adjust the screw in Fig. 17 so that the cueing lever
returns at the same time as the tone arm when the
speed change lever is set to 33 rpm and auto return
operation is effected.
Note: Overtightening the screw causes the tone arm to
return suddenly in mid-record, and under-
tightening the screw makes the cueing lever fail
to return.
Adjust so that the tone arm works smoothly
and the cueing lever returns completely.
Adjusting screw.
Retum plate
returns tone arm.
Fixing plate
returns tone arm.
Pull release and
return cueing level.
7. TURNTABLE SPEED
The rotating speeds of the turntable can be adjusted to
minimum +2.5% with the variable resistor knob. If the
specified adjusting range cannot be obtained, adjust as
follows:
(1) Place the variable resistor knob at the center (150°)
of rotating possible angle (300°).
(2) Remove the platter and put the speed adjusting lebel
off from the panel board.
(3) Rotate from the two holes beneath the speed
adjusting label the semi-fixed variable resistors. Check
to see if the strobo indexes appear stationary after
placing turntable platter and belt. (Fig. 18)
8. VOLTAGE CHANGEOVER (MODEL E AND G)
(1) Remove the turntable platter, remove the screw
which fasten the protector and remove the protector.
(Fig. 19)
(2) Withdraw the plug and reinsert it in such a way that
the desired voltage marking is exposed in the cut of
the plug.
(3) Fasten the protector with the screw.
