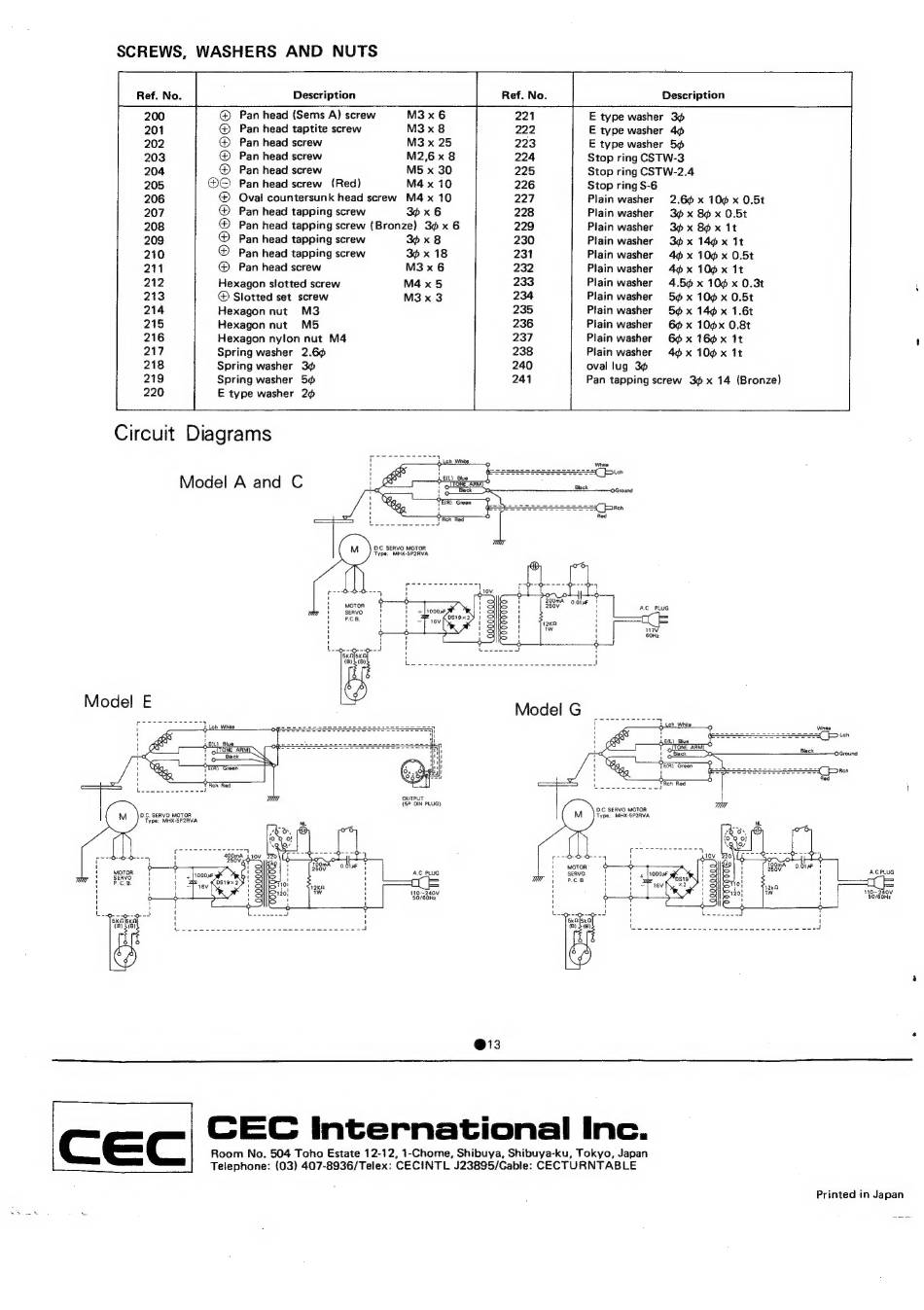

cec BD-5200 Service Manual page 12

SCREWS, WASHERS AND NUTS
Description Ref. No. Description
200 @ Pan head (Sems A) screw M3 x6 221 E type washer 30
201 @ Pan head taptite screw M3 x 8 222 E type washer 46
202 @® Pan head screw M3 x 25 223 E type washer 5@
203 @® Pan head screw M2,6x 8 224 Stop ring CSTW-3
204 @® Pan head screw M5 x 30 225 Stop ring CSTW-2.4
205 @© Pan head screw (Red) M4 x 10 226 Stop ring S-6
206 ® Oval countersunk head screw M4 x 10 227 Plain washer 2.6¢ x 10¢ x 0.5t
207 ® Pan head tapping screw 36 x 6 228 Plain washer 36x 8¢x 0.5t
208 ® Pan head tapping screw (Bronze) 3¢ x 6 229 Piain washer 3x 8x It
209 ® Pan head tapping screw 36x 8 230 Plain washer 36x 14¢x It
210 © Pan head tapping screw 3¢ x 18 231 Plain washer 46x 10¢ x 0.5t
211 @® Pan head screw M3 x 6 232 Plain washer 46x 10¢x It
212 Hexagon slotted screw M4x5 233 Plain washer 4.5¢ x 10@ x 0.3t
213 @ Slotted set screw M3 x 3 234 Plain washer 5¢@ x 106 x 0.5t
214 Hexagon nut M3 235 Plain washer 5x 146 x 1.6t
215 Hexagon nut M5 236 Plain washer 6x 10¢x 0.8t
216 Hexagon nylon nut M4 237 Plain washer 6x 16¢x 1t
217 Spring washer 2.66 238 Plain washer 4x 10@ x 1t
218 Spring washer 3¢ 240 oval lug 3¢
ij 219 Spring washer 5 241 Pan tapping screw 3¢ x 14 (Bronze)
220 E type washer 26 cin
Circuit Diagrams
Model A and C
D.C. SERVO MOTOR
Type: MHX-5P2RVA
ul
200mA
30078 0.01
AC PLUG
cr
PCB.
12ka
iw
ucpineeaee tceecee
SkAlsKa '
(B) 4 (B) Ee co whoee Sa coseboiewcs vecesetse stl !
Model E Model G
em
'
'
1
'
'
1
'
1
n
1
Lestgeanicsngeal
( }=2Rch
OUTPUT
(5P DIN PLUG)
D.C SERVO MOTOR
Type: MHX-5P2RVA
D.C. SERVO MOTOR
Type; MHX-5P2AVA
'200mA | en)
250Ve d10N
ToomA
Z880A 0.01
AC PLUG
42k
Ww
90/60Hz
a h Zz
i t '
~Yexapeay 5kQ[5Ka
(B) $(8). oe Bre Ahn, tin te Ba ES se ee Mise VWs scitte Dh Seeties acme Loo mame ese
\ 1
110~240V i
\
L
eran , tee areas at
@13
