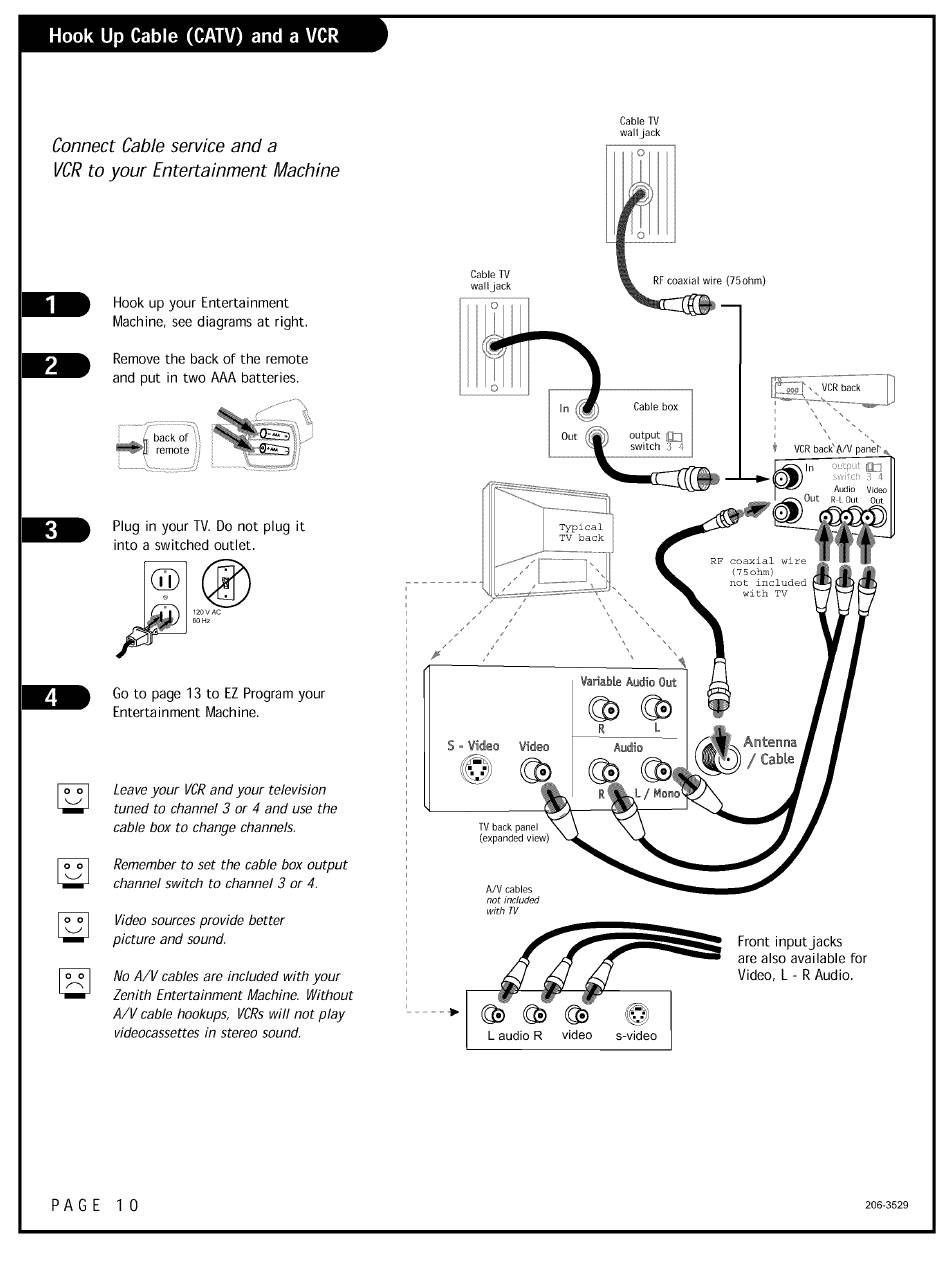

Connect Cable service and a
VCRto your Entertainment Machine
Cable TV
wall jack
L
F
Hook up your Entertainment
Machine, see diagrams at right.
Removethe back of the remote
and put in two AAA batteries.
L
F
L
F
Plug in your TV. Do not plug it
into a switched outlet.
6O Hz
L
F
Go to page 13 to EZProgram your
Entertainment Machine.
Leave your VCRand your television
tuned to channel 3 or 4 and use the
cable box to change channels.
Remember to set the cable box output
channel switch to channel 3 or 4.
Video sources provide better
picture and sound.
No A/V cables are included with your
Zenith Entertainment Machine. Without
A/V cable hookups, VCRswill not play
videocassettes in stereo sound.
Cable TV
wall jack
re (75ohm)
Cable box
S : V_deo Video
VCR back' _,/V
In _1_
Audio Video
Out R L Out Out
RF coaxial wire
(75ohm)
not included
with TV
TV back panel
(expanded view)
A/V cables
not included
with TV
L audio R
video s-video
Front input jacks
are also available for
Video, L - R Audio.
P A G E 1 0 206-3529
