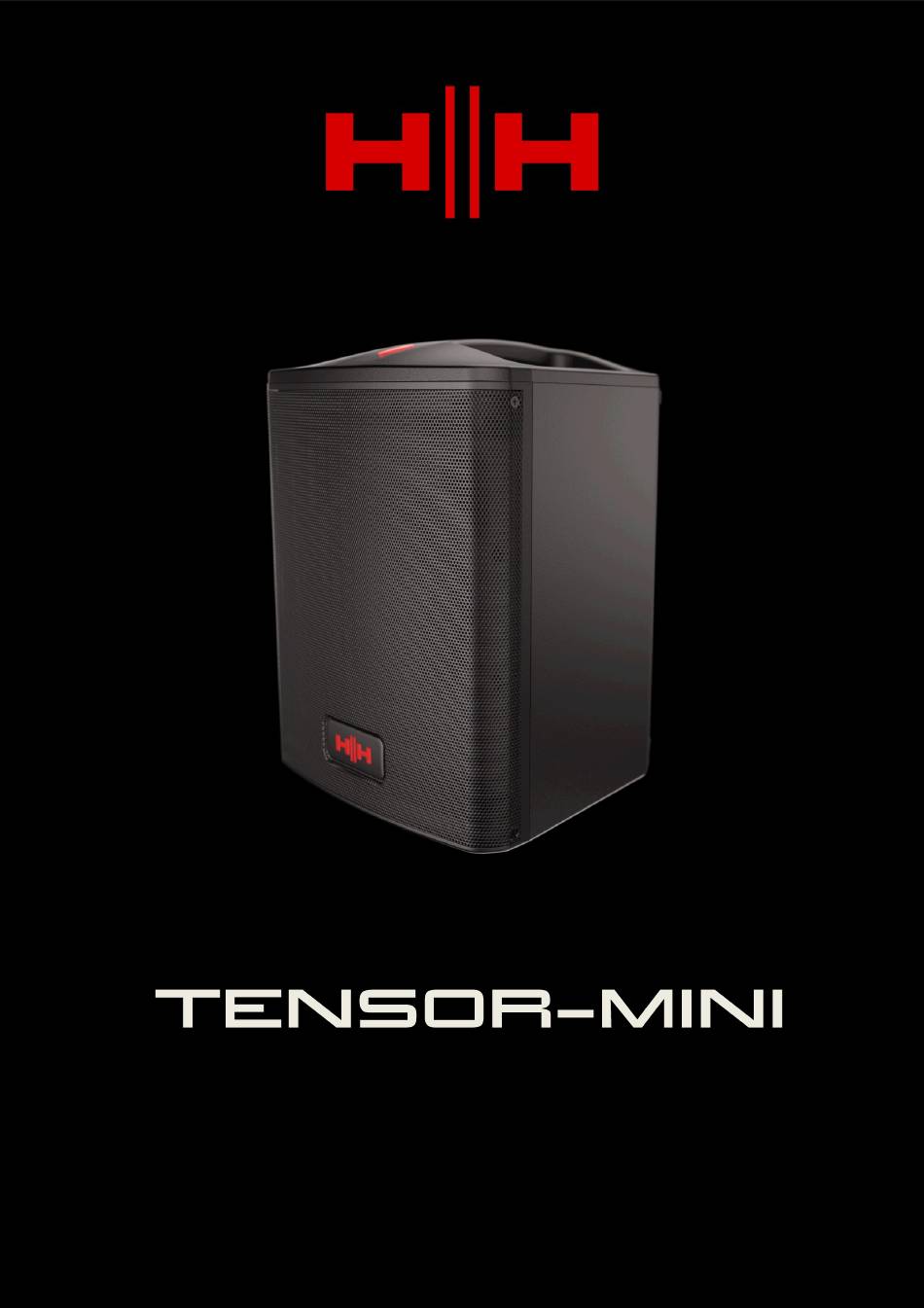

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS TENSOR-MINI OVERVIEW ..........................2 FEATURES ..............................2 CONTROLS ................................. 3 CHANNEL 1 & 2 ............................. 3 LINE OUT & CHANNEL 3 ..........................4 BLUETOOTH AND USB CONTROLS ......................5 MAINS INLET ..............................5 SETUP .................................. 6 MULTI-POSITION ............................6 BLUETOOTH CONNECTIVITY ........................ -
Page 3: Tensor-Mini Overview

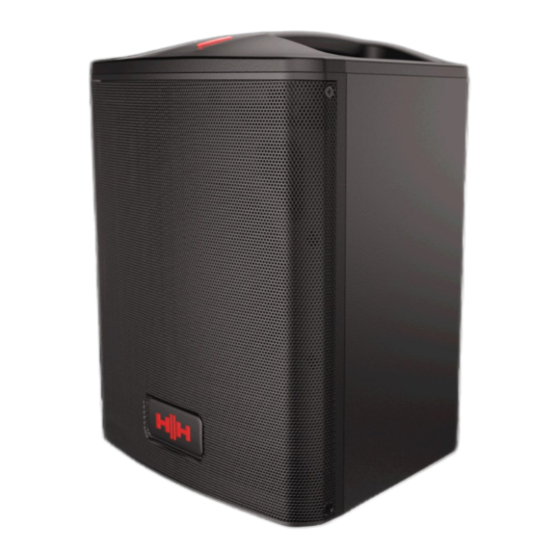

TENSOR-MINI OVERVIEW The ultra portable Tensor-MINI is an easy to carry, lightweight, high power PA loudspeaker with built in Li-Ion Battery. The versatile preamp includes a 3 channel mixer, DSP and reverb effects along with a Bluetooth/USB media player. Bluetooth also supports stereo linking of two units. The multi-angle cabinet can be used on the ground, as a monitor or on a pole stand and the user controlled EQ adjustment ensures you can always get optimal sound quality. -
Page 4: Controls
CONTROLS CHANNELS 1 & 2 1. XLR/6.3mm COMBI SOCKETS Channel 1 and 2 inputs take either XLR or 6.3mm jack. Can connect balanced or unbalanced signals. 2. TONE PRESET SWITCH Select between Mic, Instrument or Line mode for the channel. 3. -
Page 5: Line Out & Channel 3
Signal indicator LED shows green when a signal is present on the channel and red when the signal is clipping. Occasional red flashes are ok but avoid constant illumination of the red light. Turn the volume down on your input device or the Tensor-MINI if so. Page 4... -
Page 6: Bluetooth And Usb Controls
BLUETOOTH AND USB CONTROLS 8. USB SOCKET Connect your mobile phone or USB flash drive here to use USB channel of the Tensor-MINI. 9. PLAYBACK CONTROLS Used to control the playback for USB and Bluetooth audio, cycle through USB folders, set the mode for channel 3 and enter EQ adjustment. -
Page 7: Setup
SETUP MULTI-POSITION Depending on your use case, the Tensor-MINI can be used in various positions: BLUETOOTH CONNECTIVITY To connect a device, such as a mobile phone, press the MODE button so that the letters “bt” show on the LCD display, alongside a flashing Bluetooth symbol on the bottom left. - Page 8 To connect two Tensor-MINIs via TWS, have both speakers on Bluetooth mode and hold the shuffle button on one for 3 seconds to enter pairing mode. The screen will show “bt – n”. Hold down the same button on the other unit to activate TWS on it. Both Tensor-MINIs will pair together and their screens will show “bt-L”...
-
Page 9: Usb Playback
USB PLAYBACK A USB flash drive can be plugged into the USB socket on the back of the MINI to play audio from. The USB can contain multiple folders of music that can be played individually or shuffled together. Use the “MODE” button to cycle between the Bluetooth input and the USB input for channel 3. -
Page 10: Eq Settings
EQ SETTINGS All 3 channels can have their own bass, treble and reverb settings modified through the controls on the Tensor-MINI. For channels 1 and 2, push in the reverb knob to modify the EQ for the respective channel. For channel 3, hold the “MODE” button for 1-2 seconds until the “H”... -
Page 11: Specifications
SPECIFICATIONS Model Tensor-MINI System Type Ultra Portable Battery Powered PA Speaker Frequency Response 55-20kHz Max SPL (1M) 110 dB SPL, 121 dB SPL (Peak) Full Space Features Mixer 3 Channel Mixer Effects Reverb CH1/2 Bass/Treble and Tone Preset for Mic/Instrument modes. -
Page 12: Dimensions (In Mm)
DIMENSIONS (in mm) Page 11... -
Page 13: Safety And Warnings
23) The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Headstock Distribution Ltd is under license. Other trademarks and trade names are those of their respective owners. HH Electronics Ltd. - Page 14 CE Mark (93/68/EEC), Low Voltage 2014/35/EU, EMC (2014/30/EU), RoHS (2011/65/EU), RED (2014/30/EU), ErP 2009/125/EU SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, HH Electronics declares that the radio equipment is in compliance with Directives 2014/53/EU, 2011/65/EU, 2009/125/EU Full text of the EU declaration of conformity is available at the following internet address: http://support.hhelectronics.com/approvals...
- Page 15 HH ELECTRONICS LTD. STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD HH ELECTRONICS PART OF HEADSTOCK GROUP FOR THE LATEST INFORMATION PLEASE VISIT IN THE INTEREST OF CONTINUED DEVELOPMENT, HH RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION.
