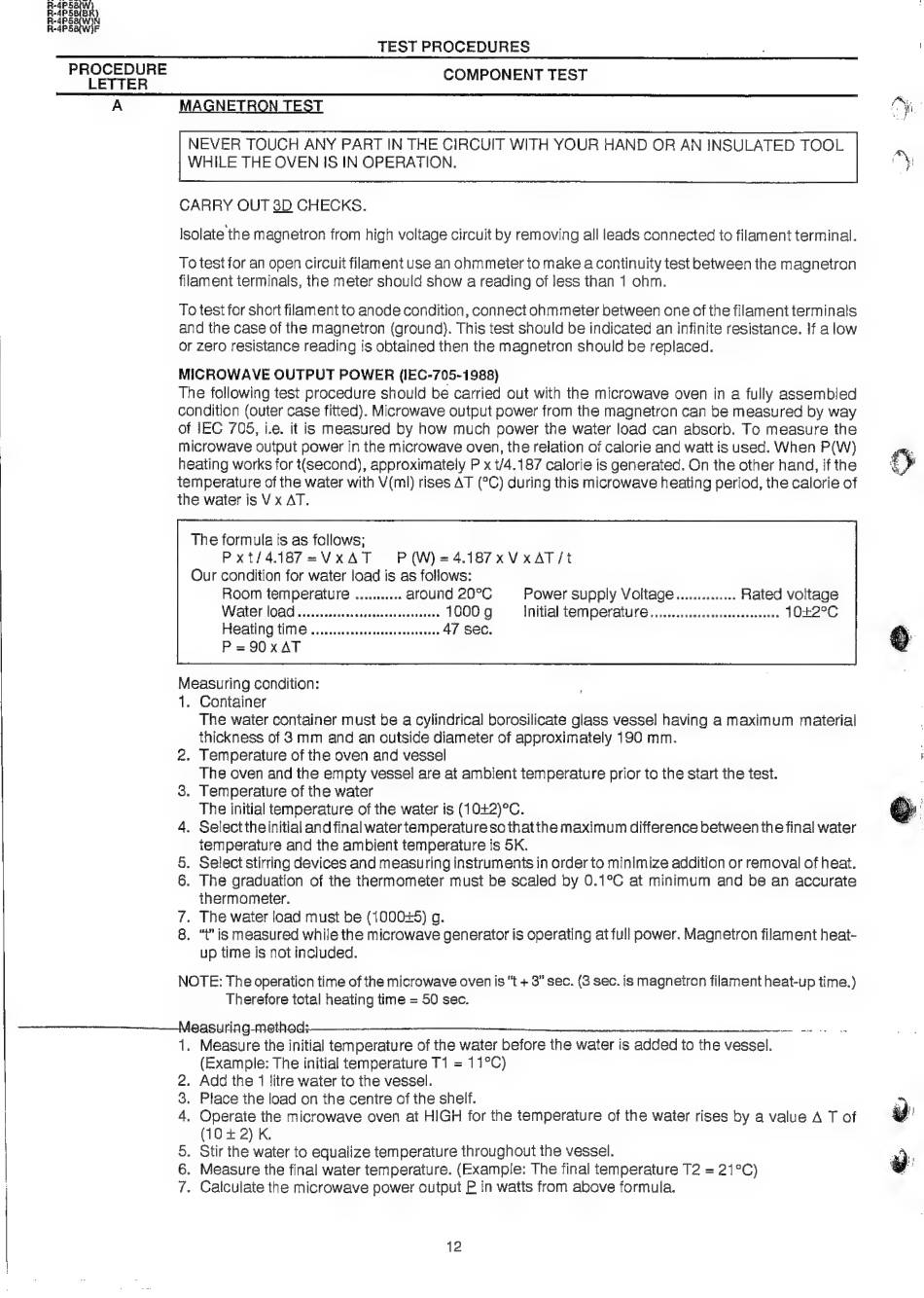

TEST PROCEDURES
PROCEDURE
eceou
COMPONENT TEST
|
A
MAGNETRON TEST
Ni
NEVER TOUCH ANY PART IN THE CIRCUIT WITH YOUR HAND OR AN INSULATED TOOL
,
WHILE THE OVEN IS IN OPERATION.
ON:
CARRY OUT 3D CHECKS.
Isolate the magnetron from high voltage circuit by removing all leads connected to filament terminal.
To test for an open circuit filament use an ohmmeter to make a continuity test between the magnetron
filament terminals, the meter should show a reading of less than 1 ohm.
To test for short filament to anode condition, connect ohmmeter between one of the filament terminals
and the case of the magnetron (ground). This test should be indicated an infinite resistance. If a low
or zero resistance reading is obtained then the magnetron should be replaced.
MIGROWAVE OUTPUT POWER (IEC-705-1988)
The following test procedure should be carried out with the microwave oven in a fully assembled
condition (outer case fitted). Microwave output power from the magnetron can be measured by way
of IEC 7085, i.e. it is measured by how much power the water load can absorb. To measure the
microwave output power in the microwave oven, the relation of calorie and watt is used. When P(W)
..
heating works for t(second), approximately P x t/4.187 calorie is generated. On the other hand, if the
Sy
temperature of the water with V(ml) rises AT (°C) during this microwave heating period, the calorie of
the water is V x AT.
The formula ts as follows;
Pxt/4.187=VxAT
P(W)=4.187xVxAT/t
Our condition for water load is as follows:
Room temperature
Power supply Voltage
Rated voitage
Water load
Initial temperature
Heating time
é
\.
P=90xAT
©
Measuring condition:
1. Container
The water container must be a cylindrical borosilicate glass vessel having a maximum material
thickness of
83mm and an outside diameter of approximately 190 mm.
2. Temperature of the oven and vessel
The oven and the empty vessel are at ambient temperature prior to the start the test.
3, Temperature of the water
22
The initial temperature of the water is (10+2)°C.
©
4. Select theinitial and final water temperature so thatthe maximum difference between the final water
;
temperature and the ambient temperature is 5K.
5. Select stirring devices and measuring instruments in order to minimize addition or removal of heat.
6. The graduation of the thermometer must be scaled by 0.1°C at minimum and be an accurate
thermameter.
7. The water load must be (1000+5) g.
8. "t" is measured while the microwave generator is operating at full power. Magnetron filament heat-
up time is not included.
NOTE: The operation time of the microwave oven is "t + 3" sec. (3 sec. is magnetron filament heat-up time.)
Therefore total heating time = 50 sec.
oo.
ipasuring-methed:
1. Measure the initial temperature of the water before the water is added to the vessel.
(Example: The initial temperature T1 = 11°C)
Add the 1 litre water to the vessel.
Place the load on the centre of the shelf.
'
Operate the microwave oven at HIGH for the temperature of the waier rises by a value A T of
ny
(1042) K.
. Stir the water to equalize temperature throughout the vessel.
ey
. Measure the final water temperature. (Example: The final temperature T2 = 21°C)
eo
. Calculate the microwave power output P in watts from above formula.
