Thank you for purchasing a new Orion Hunting Products Stand
and Fill Feeder.
It is our Overwhelming desire to ensure that you are satisfied with
this product.
We have taken great pride in every aspect of its design and
manufacturing right here in the U.S.A. and it is our hope that you
can take pride in owning it.
If it does not meet your expectations for any reason please give us
a call or text at (906)-767-0270 and may it truly Elevate your
Pursuit.

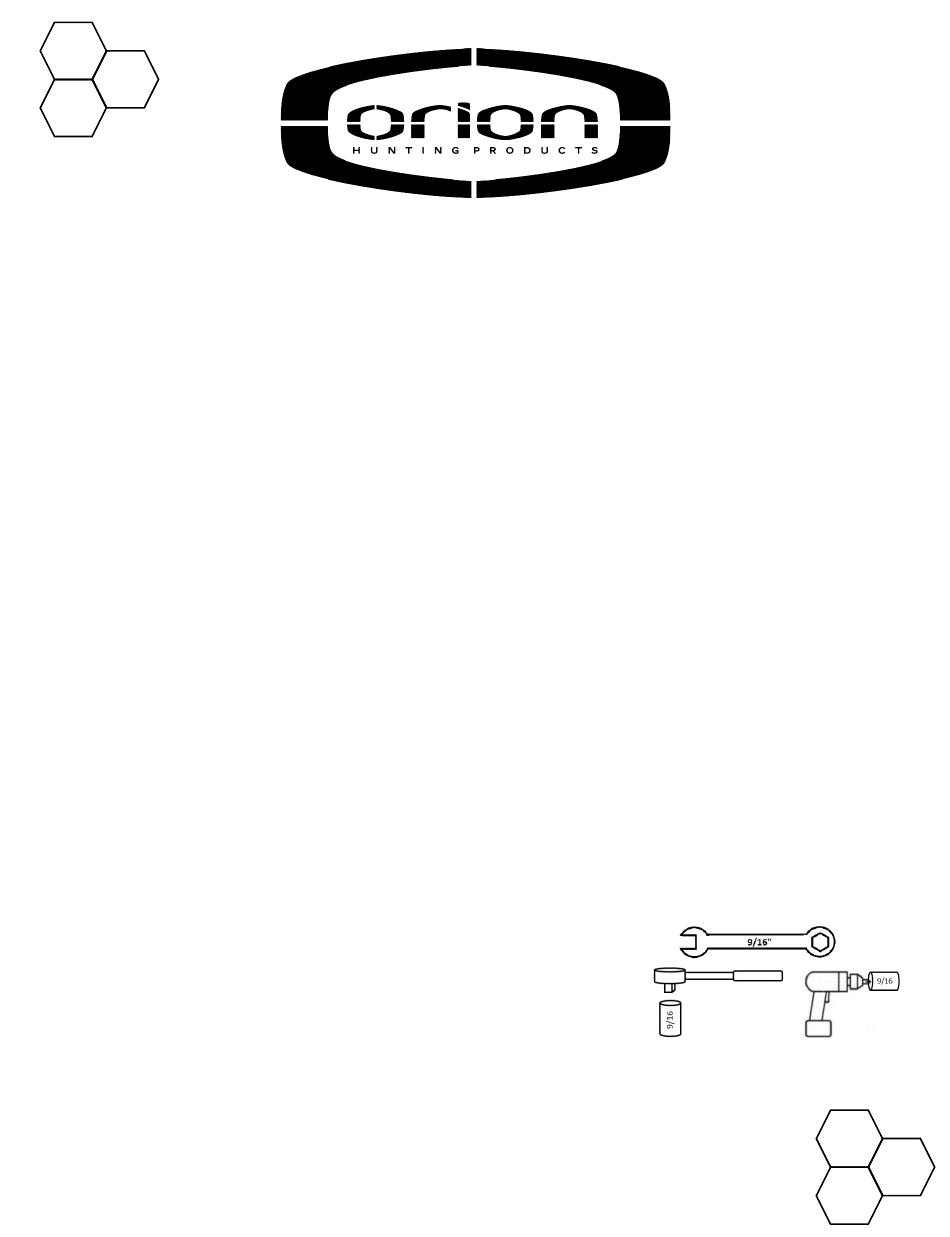

1) 9/16" Open End/Box End Combination Wrench
2) 9/16" Socket with Ratchet or Cordless Impact
drill preferred
3) Hammer
Stand and Fill Feeder Assembly Manual
Hunt safely without limits. Hunt Orion!
Tools Required
Page - 1 MSC005150
Advertisement
Related Manuals for Orion FDR1000150
Summary of Contents for Orion FDR1000150
- Page 1 Stand and Fill Feeder Assembly Manual Thank you for purchasing a new Orion Hunting Products Stand and Fill Feeder. It is our Overwhelming desire to ensure that you are satisfied with this product. We have taken great pride in every aspect of its design and manufacturing right here in the U.S.A.
- Page 2 150lb Stand and Fill Feeder Overview Feeder Base Box – FDR1000150 Please read through entire assembly instructions before beginning ⬣ Feeder Base [FDR1000150] ⬣ Broadcast Spreader [FDR1000500] Page - 2 MSC005150...
- Page 3 Contents Feeder Base FDR1000150 ⬣[1X] Feeder Side with Gate – ⬣ [4X] Trough – FDR1000101 ⬣[3X] Feeder Side – FDR1000102 FDR1000103 ⬣[1X] Broadcast Feeder– ⬣[1X] Feeder Gate – FDR1000107 ⬣[4X] Feeder Base – FDR1000104 FDR1000500 ⬣[1X] Base Plate – FDR1000106 ⬣[4X] Rebar Anchor –...
- Page 4 Elevated Hunting Stand Assembly **Finger tighten hardware initially** Parts 1x Broadcast Feeder Legs 1x Base Plate 4x 10-32 x ¾ Screws [A] 4x 10-32 Nylon Lock Nuts [B] Process Unscrew the wingnuts from the broadcast feeder to make assembly easier. Use the screws [A] and nuts[B] to attach the broadcast feeder to the base plate.
- Page 5 Parts 4x Feeder Base 4x 3/8-16 x ¾ Flange head bolts [D] 4x 3/8-16 Flange head nuts [E] Process Use the 3/8-16 bolts [D] and nuts [E] to join the 4 feeder bases together at the top hole location, do not bolt the bottom together. Page - 5 MSC005150...
- Page 6 Parts 1x Base Plate Assm 1x Feeder Side 1x Feeder Side with Gate 1x 3/8-16 x ¾ Flange head bolts [D] 1x 3/8-16 Flange head nuts [E] Process Hook the bottom of the feeder base plate into the feeder side and bolt the bottom of the assembly together.
- Page 7 Parts 2x Feeder Side 3x 3/8-16 x ¾ Flange head bolts [D] 3x 3/8-16 Flange nuts [E] Process Repeat step 3 for the remaining side. Page - 7 MSC005150...
- Page 8 Parts 1x Baseplate with attached spreader legs 4x 3/8-16 x ¾ Flange head bolts [D] Process Attach the baseplate to the base using the bolts [D]. Page - 8 MSC005150...
- Page 9 Parts 1x Broadcast feeder Process Re-assemble the broadcast spreader onto the legs using the wingnuts. Ensure that the door is facing the gate. Page - 9 MSC005150...
- Page 10 Parts 4x Feeder Trough 8x 3/8-16 x ¾ Flange head bolts [D] 8x 3/8-16 Flange nuts [E] Process Bolt together the top and bottom holes on all 4 sides of the feeder trough as shown. Do not fasten the middle holes Page - 10 MSC005150...
- Page 11 Parts 1x Feeder Trough Assembly 1x Base Assembly 4x 3/8-16 x ¾ Flange head bolts [D] 4x 3/8-16 Flange nuts [E] Process Flip the trough assembly and position into the base assembly as shown, fasten the trough to the base Page - 11 MSC005150...
- Page 12 Parts 1x Feeder Base Assembly Process Fasten all nuts and bolts Page - 12 MSC005150...
- Page 13 Parts 1x Feeder Faceplate 4x 3/8-16 x 1-1/4 Thumb Screw Process Attach the face plate using the thumb screws. Page - 13 MSC005150...
- Page 14 Parts 1x Feeder Top 4x 3/8-16 Flange nuts 4x 3/8-16 x 1-1/4 Thumb Screw Process Place the bin top on top of the feeder base assembly and line up the holes. Use the thumb screws and nuts to attach the top Page - 14 MSC005150...
- Page 15 Parts 1x Feeder Base Assembly 4x Rebar Anchors Process Pound in the 4 rebar anchors into the ground using a hammer Page - 15 MSC005150...
