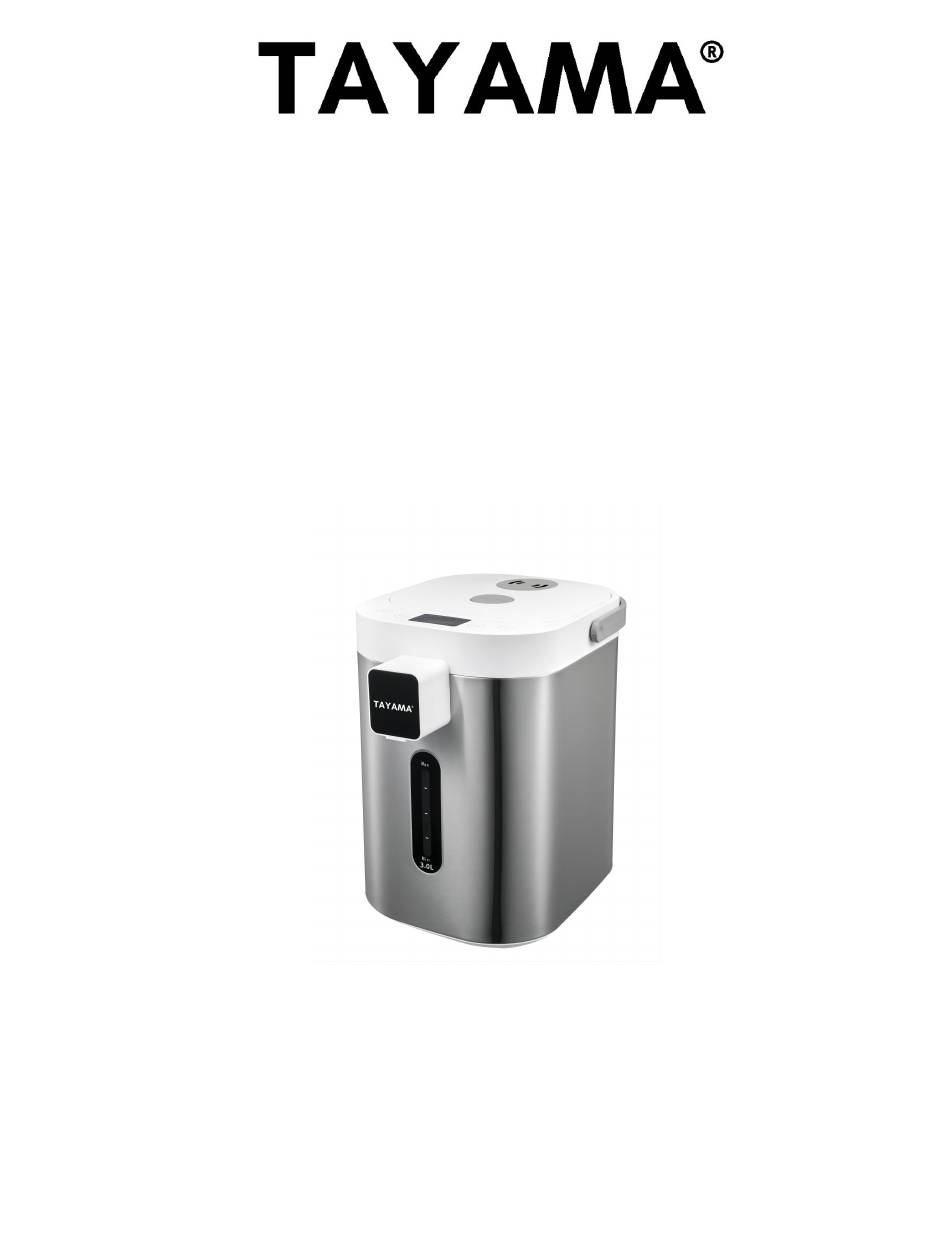

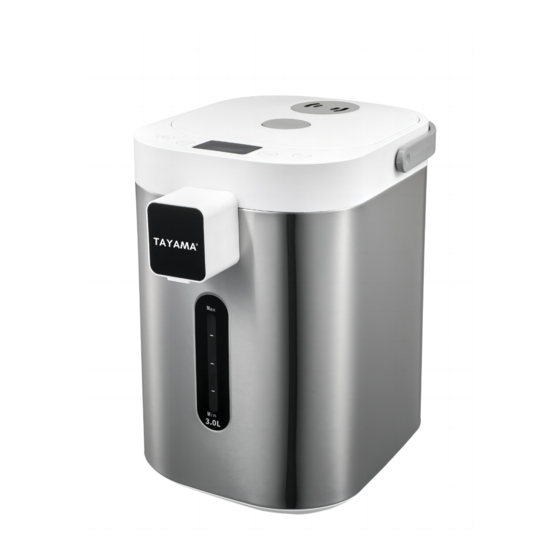

- Page 1 USER MANUAL ELECTRIC THERMO POT BOILER & DISPENSER Model No.: DSWB-320S Thank you for purchasing this product. Read all the information in this user manual before using the appliance. Keep this manual in a handy location for future reference.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions before use. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock, do not immerse cord or plug in water or other liquid. 4. - Page 3 SAVE THESE INSTRUCTIONS Servicing should be performed by an authorized service representative. This water boiler is intended for household use. A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Longer detachable power supply cords or extension cords are available and may be used if care is exercised in their use.
-
Page 4: How To Use
HOW TO USE Before First Use: 1. Read all the instructions and important safeguards. 2. Remove all packaging materials; check that all items are received in good condition. 3. Wash the stainless steel water tank with warm, soapy water using a sponge or dishcloth. - Page 5 Do not fill water directly under faucet to prevent wetting the control panel or power receptacle and causing malfunction. Use a separate container to fill the inner pot with water. Do not fill above the FULL line to avoid overflowing when boiling. ...
-
Page 6: Control Panel Functions
CONTROL PANEL FUNCTIONS PARTS IDENTIFICATION... - Page 7 Boil Water: 1. Always plug power cord to the thermos pot first and then to the wall outlet. After power is switched ON, water will start to boil immediately. Do not open top cover when water is boiling. Do not add water when appliance is still boiling. ...
-
Page 8: Temperature Setting
Dispense Function: 1. Auto Dispense Button a) Press the “Unlock” button once. The “Unlock” indicator symbol will come b) Touch the “Dispense” button to dispense hot water. 2. Cup Water Dispense Outlet a) Press the “Unlock” button once. The “Unlock” indicator symbol will come b) Bring your cup up to the cup switch located below the dispense spout and gently press to dispense hot water. - Page 9 Default temperature setting is 185℉. After water temperature has finished boiling and reached selected temperature setting, Keep Warm mode will turn on and maintain set temperature. Keep warm symbol will illuminate after boiling. If the water temperature is below the selected settings, water will be boiled again and boiling LED will illuminate.
-
Page 10: Temperature Setting Guide
Temperature Setting Guide: 104℉ Warm water 113℉ Milk 122℉ Lemon water 140℉ Fruit tea 158℉ Ginger tea 185℉ Green tea or Coffee Suitable for cooking hot instant food and 194℉ for hot beverages such as hot chocolate 212℉ Re-Boil function Storage: If you do not use the electric thermo pot for a long time, please: 1. - Page 11 To prevent damage to the thermo pot, do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent. Do not use any material such as a cleanser or scrubber for tough stains or mineral deposit;...
-
Page 12: Specification
Volatile oil or thinner. Abrasive cleaning powder, nylon brushes etc. The electric air pot is NOT dishwasher safe. STORAGE: Dry it thoroughly before prolonged storage. Specification: MODEL NO DSWB-320S RATED VOLTAGE 110-120V RATED POWER 680W FREQUENCY 60Hz CAPACITY 3.0L... - Page 13 Tayama Appliance USA Inc. www.tayama-usa.com...
