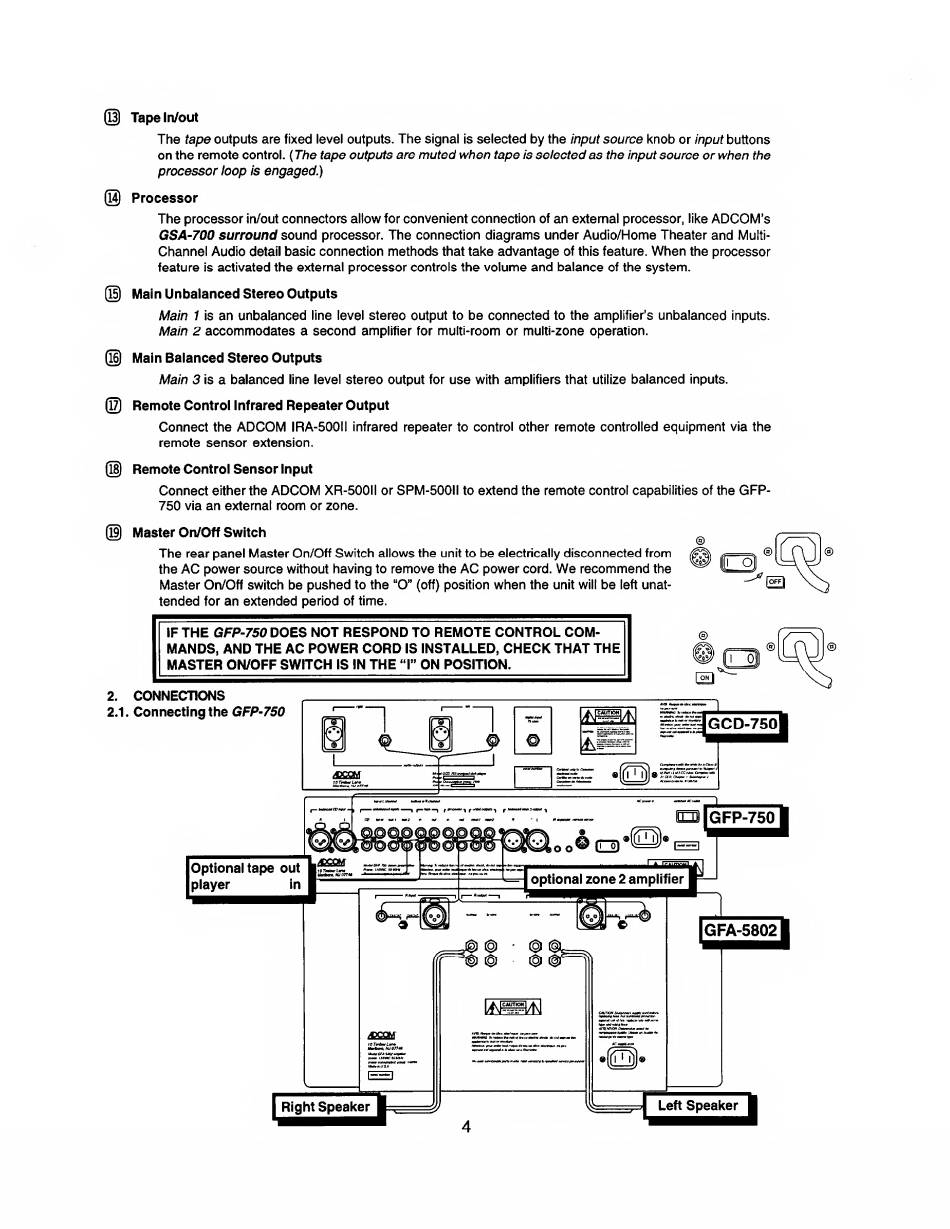

Adcom GFP-750 Owner's Manual page 5

@ Tapeln/out
The
tape
outputs are fixed level outputs. The signal is selected by the
input source
knob or
input
buttons
on the remote control.
{The tape outputs are muted when tape is selected as the input source or when the
processor loop is engaged.)
@ Processor
The processor in/out connectors allow for convenient connection of an external processor, like ADCOM's
GSA-700 surround
sound processor. The connection diagrams under Audio/Home Theater and Multi-
Channel Audio detail basic connection methods that take advantage of this feature. When the processor
feature is activated the external processor controls the volume and balance of the system.
@ Main Unbalanced Stereo Outputs
Main 1
is an unbalanced line level stereo output to be connected to the amplifier's unbalanced inputs.
Main 2
accommodates a second amplifier for multi-room or multi-zone operation.
@ Main Balanced Stereo Outputs
Main
3 is a balanced line level stereo output for use with amplifiers that utilize balanced inputs.
© Remote Control Infrared Repeater Output
Connect the ACCOM IRA-50011 infrared repeater to control other remote controlled equipment via the
remote sensor extension.
® Remote Control Sensor Input
Connect either the ACCOM XR-500II or SPM-500II to extend the remote control capabilities of the GFP-
750 via an external room or zone.
® Master On/Off Switch
The rear panel Master On/Off Switch allows the unit to be electrically disconnected from
the AC power source without having to remove the AC power cord. We recommend the
Master On/Off switch be pushed to the "O" (off) position when the unit will be left unat¬
tended for an extended period of time.
IF THE GFP-750 DOES NOT RESPOND TO REMOTE CONTROL COM¬
MANDS, AND THE AC POWER CORD IS INSTALLED, CHECK THAT THE
MASTER ON/OFF SWITCH IS IN THE "I" ON POSITION.
