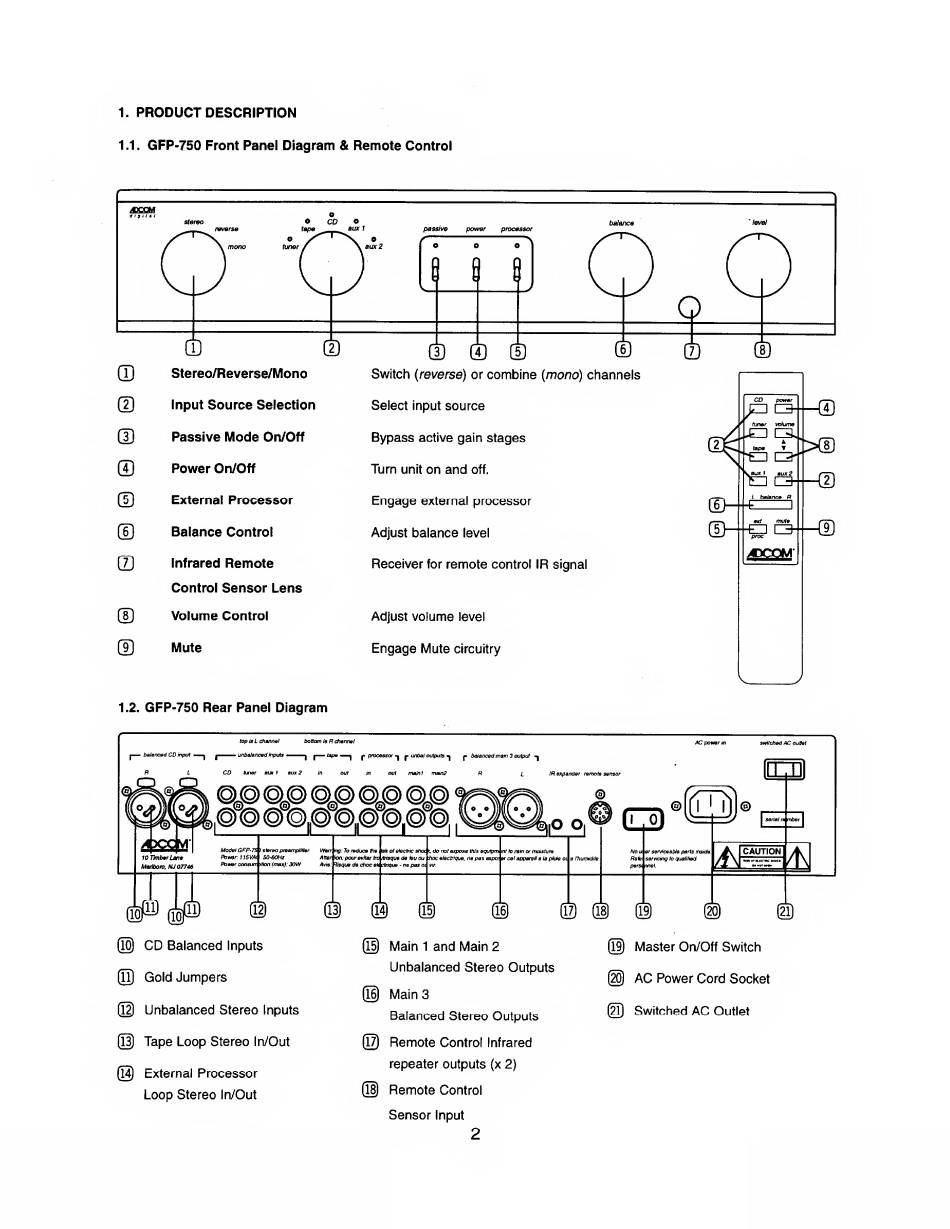

1. PRODUCT DESCRIPTION
1.1. GFP-750 Front Panel Diagram & Remote Control
Stereo/Reverse/Mono
Switch (reverse) or combine (mono) channels
Input Source Selection
Select input source
®
Passive Mode On/Off
Bypass active gain stages
Power On/Off
Turn unit on and off.
©
External Processor
Engage external processor
©
Balance Control
Adjust balance level
©
Infrared Remote
Control Sensor Lens
Receiver for remote control IR signal
©
Volume Control
Adjust volume level
©
Mute
Engage Mute circuitry
1.2. GFP-750 Rear Panel Diagram
@ CD Balanced Inputs
^l) Gold Jumpers
@ Unbalanced Stereo Inputs
@ Tape Loop Stereo In/Out
@ External Processor
Loop Stereo In/Out
@ Main 1 and Main 2
Unbalanced Stereo Outputs
@ Main 3
Balanced Stereo Outputs
(T^ Remote Control Infrared
repeater outputs (x 2)
(18) Remote Control
Sensor Input
Master On/Off Switch
@ AC Power Cord Socket
@ Switched AC Outlet
