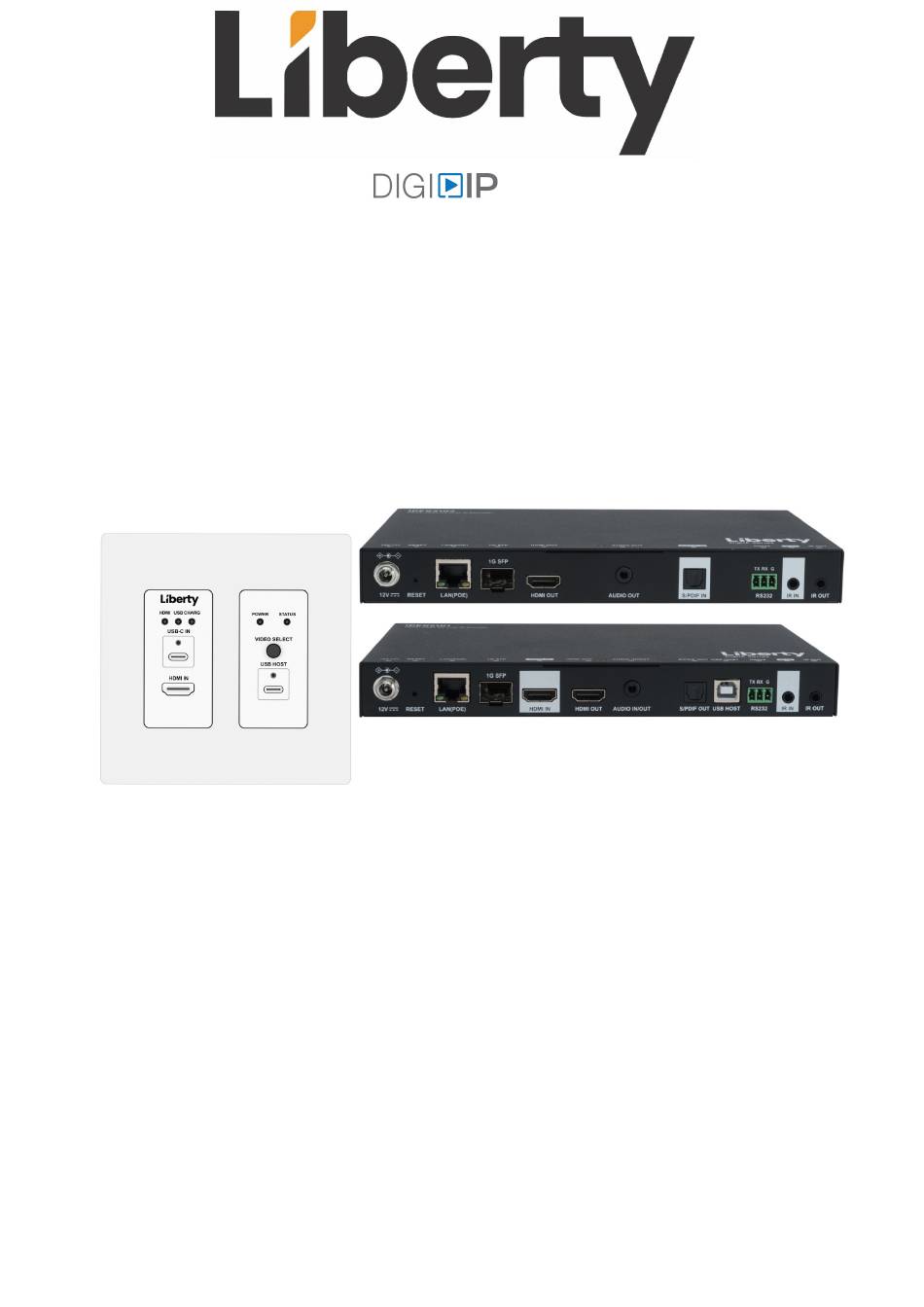

- Page 1 IPEX5100 Series Install Guide IPEX5101, IPEX5101UD-WP, IPEX5102 Rev 231122 1490 Garden of the Gods Suite F Toll-Free: 800-530-8998 Colorado Springs, CO 80907 Fax: 719-260-0075 supportlibav@libav.com...
-
Page 2: Product Overview
IPEX5100 Series Install Guide Product Overview IPEX5101 Encoder The Digitalinx IP IPEX5101 encodes / transmits HDMI video up to 4K60 4:4:4 and m u l t i - c h a n n e l audio over a 1 gigabit network infrastructure using JPEG2000 encoding with a variable data rate at an average of 650 Mbps with peak values up to 900Mbps. -
Page 3: Package Contents Per Device
IPEX5100 Series Install Guide IPEX5102 Decoder The Digitalinx IP IPEX5102 receives HDMI video and audio over a 1 gigabit network infrastructure using JPEG2000 encoding from the IPEX5101 and IPEX5101UD-WP encoder. The IPEX5102 outputs video signals natively from source or can be scaled to 1080p or 4K60 at 4:4:4 with HDR10, HDCP 2.2 and multichannel audio support. -
Page 4: Front And Rear Panels
IPEX5100 Series Install Guide Front and Rear Panels IPEX5101 Front Panel Power indicator Status indicator IPEX5101 Rear Panel 12V DC power input RESET button LAN connection with PoE support SFP Port supports single-mode or multi-mode fiber HDMI input HDMI output... - Page 5 IPEX5100 Series Install Guide IPEX5101UD-WP Front Panel HDMI LED • When SOLID: Valid HDMI input signal is detected and selected. • When Blinking: The HDMI input signal is selected while invalid. • When OFF:The HDMI input signal is not selected USB LED •...
- Page 6 IPEX5100 Series Install Guide IPEX5101UD-WP Rear Panel RS232 port DC12 DC power input LAN connection with PoE support IPEX5102 Front Panel Power indicator Status indicator USB ports for camera, DSP, keyboard, mouse IPEX5102 Rear Panel 12V DC power input RESET button...
-
Page 7: System Installation Instructions
Liberty has documented several network switch settings for many common switch manufacturers, see documents related to this product on the product page of the Liberty AV website (www.libav.com). Connect Category 5e/6 cable from the network switch to the appropriate 5100 devices LAN port. -
Page 8: Connecting Hdmi Devices
IPEX5100 Series Install Guide Connecting HDMI Devices Use only high quality High Speed HDMI cables rated for 18Gbps, do not exceed HDMI cable lengths over 5m/15’ for device HDMI connections to AV sources and displays. Connecting Audio Devices Connect an unbalanced line level audio device either to the encoder or decoder, the 5100 devices de-embeds the two channel embedded HDMI audio stream. - Page 9 IPEX5100 Series Install Guide Device / System Control Arranger is an AVoIP server application that will configure and manage the 5100 devices on an AV IP Network. Arranger is licensed per endpoint for one AV Network and a license unlock code should have been provided upon purchase of the Arranger DigiIP 5100 series license.
-
Page 10: Application Diagrams
IPEX5100 Series Install Guide Application Diagrams... - Page 11 IPEX5100 Series Install Guide IPEX5101 Technical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle HDMI Output One (1) HDMI Type A Receptacle One (1) 8P8C port (Shielded RJ45) One (1) Port supports single-mode or multi-mode SFP module...
- Page 12 IPEX5100 Series Install Guide IPEX5101UD-WP Technical Specifications Input/Output Connections Video Input One (1) HDMI (Type A Receptacle), One (1) USBC One (1) 8P8C port (Shielded RJ45) Power One (1) 2 pin phoenix connector RS232 Port One (1) 3.5mm USB Device...
- Page 13 IPEX5100 Series Install Guide IPEX5102 Technical Specifications Input/Output Connections HDMI Output One (1) HDMI Type A Receptacle One (1) 8P8C port (Shielded RJ45) One (1) Port supports single-mode or multi-mode SFP module RS232 Port One (1) 3-pin Removable Terminal Block Connector...
- Page 14 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 1490 Garden of the Gods Suite F Colorado Springs, Colorado 80907 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
