  • Page 2 USER GUIDE CONTENT • NomaSense or O2 P6000 oxygen analyzer • USB cable • USB-Power adapter (5 VDC, min. 1 A) with different connector pieces • USB stick including the Datamanager Software • Temperature probe PT100 • Short optical fiber OPTIONAL •...

  • Page 3: Description Of The Device

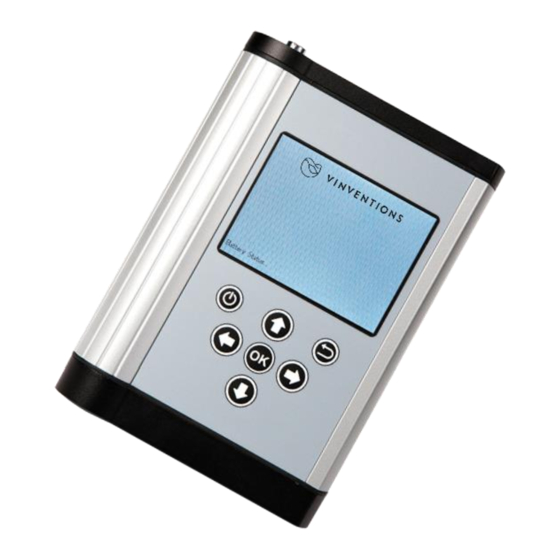

    DESCRIPTION OF THE DEVICE TOP PANEL The top panel is equipped with a connector for the fiber optic sensor, a connector for the temperature sensor, Fig. 2 Transmitter top panel and the QR code reader. BOTTOM PANEL BATT The bottom panel is equipped with the USB connector for charging the battery or connecting the device to a PC/notebook.

  • Page 4: Getting Started

    GETTING STARTED 1. INSTALLATION – SET-UP • Remove the red rubber cap from the optical sensor connector (SMA) • Remove the protective cap from the male plug on the optical fiber and insert it in the SMA connector of the NomaSense P6000.
  • Page 5 4. CREATE A NEW SENSOR MANUALLY • Use the button to switch to the Main menu. • Select “Sensors” and press the button to edit the sensor list. A window appears; select New Sensor and press • Select Manual and press •...
  • Page 6 • To save measurements select Logging On and go to Measurement Browser. Use the button to create a new measurement file. A keyboard screen opens. Use the navigation arrows to type in the new Measurement Name. • When you have finished typing go to the Done button and press •...
  • Page 7 8. TRANSFER YOUR MEASUREMENT DATA TO A PC / NOTEBOOK • Connect the NomaSense O P6000 to the PC/ notebook via USB. • Insert the supplied USB stick into the respective drive. In the software file click “NomaSense Datamanager_x.x.x.x_Setup_ FW.exe”. Follow the instructions in the setup wizard for installing the Datamanager software.

  • Page 8: Menu Structure

    MENU STRUCTURE Main Measurement Simple Oxygen ➔ ➔ Temperature ➔ Details Oxygen (+ phase angle, ➔ ➔ amplitude) Temperature ➔ Measurement Name ➔ General (measurement settings) ➔ Graph ➔ Settings Temperature Auto ➔ ➔ Manual ➔ Pressure Auto ➔ ➔ Manual ➔...
  • Page 9 MENU STRUCTURE Main Sensors Sensor list Select ➔ ➔ Edit List Delete Sensor ➔ ➔ New Sensor Barcode ➔ ➔ Manual Sensor Settings Sensortype ➔ ➔ ➔ Sensor ➔ Constants Calibration Dry / Humid ➔ ➔ Data Cal0 T0 ➔ Cal2nd T2nd ➔...
  • Page 10 Vinventions LLC | 400 Vintage Park Dr. | Zebulon, NC 27597 | U.S.A. | Tel : +1 919-460-2200 | vinventions.com Vinventions | ZI Les Plénesses | Chemin de Xhénorie 7 | B-4890 Thimister-Clermont | Belgium | Tel : +32 87 63 88 20...
