APOLLO VIEW CANCAN Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
CAnCAn
MANUAL V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the CANCAN and is the answer not in the manual?

Questions and answers

Related Manuals for APOLLO VIEW CANCAN

Summary of Contents for APOLLO VIEW CANCAN

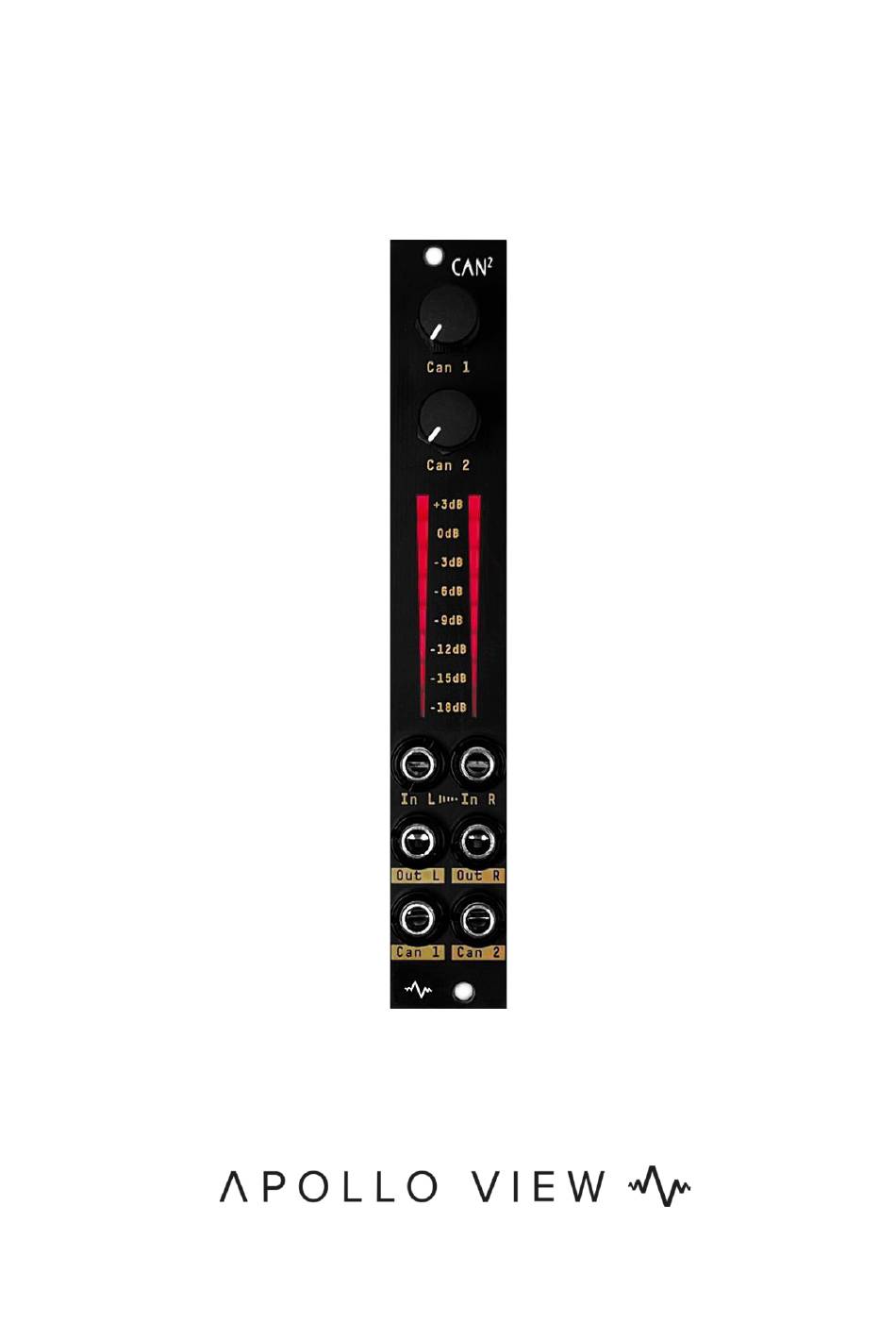

  • Page 1 CAnCAn MANUAL V1.0...
  • Page 2 & Curiouser...
  • Page 3 LIMITED WARRANTY ..........................4 INTRODUCTION ............................5 WHAT IS IT?................................5 CANCAN TECHNICAL BACKGROUND ......................5 SENSITIVITY................................5 IMPEDANCE ................................. 5 DAMPING FACTOR ............................... 6 FREQUENCY RANGE ............................. 6 ACTIVE VOLUME CONTROL..........................6 SUMMARY ................................6 INSTALLATION CANCAN..........................7 POWER................................. 7 CANCAN FUNCTIONALITY ...........................

  • Page 4: Limited Warranty

    Limited Warranty Apollo View Modular Ltd warrants this product to be free from defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). This warranty does not cover any damage caused by misuse of the product, or any unauthorised modification of the product.
  • Page 5 Cans. Sensitivity, impedance, damping factor, frequency range, and volume control are all critical in how an amplifier drives headphones and shapes the listening experience. CanCan is engineered with these factors at the forefront, guaranteeing studio-quality sound for various headphone types.

  • Page 6: Damping Factor

    The high damping factor yields a tight bass response and sharpens transient sounds, enabling headphones to respond swiftly and accurately to the audio signal. Such precision ensures that CanCan facilitates the faithful reproduction of every auditory detail, offering consistently high-quality audio for all headphones.
  • Page 7 !RED! marking on IOU for proper polarity. Next, find a 4 HP slot in your Eurorack case for CanCan. Connect the other end of the power cable to your Eurorack power supply, ensuring the red stripe aligns with the -12V rail. With the power connection established, mount the module into your case using appropriate screws and power on your Eurorack system.
  • Page 8 CANCAN Functionality 1. Active Volume Control for Can1 5. Mono Inputs Left & Right 2. Active Volume Control for Can2 6. Mono Outputs Left & Right 3. Level Meter Left Channel 7. Stereo Headphone Outputs 1 & 2 4. Level Meter Right Channel...
  • Page 9 INPUT In L & In R - These are AC-coupled and electromagnetically filtered inputs for the left and right channels. The Left input is automatically routed to the Right if no Right input is patched, providing a mono-to-stereo functionality. Connecting a cable to the Right input will override this normalling feature.
  • Page 10 Reading the Meters – In Peak mode, the 0dB indicator corresponds to a 10Vpp input signal level. The +3dB indicator corresponds to approximately 14Vpp, a high level that could cause clipping in subsequent stages. Aim for the 0dB LED to illuminate for optimal levels. Note that the meter will show a lower level in Average mode since it doesn't respond to quick transient peaks.
  • Page 11 MANUAL V1.0 info@apolloviewmodular.com https://apolloviewmodular.com...
