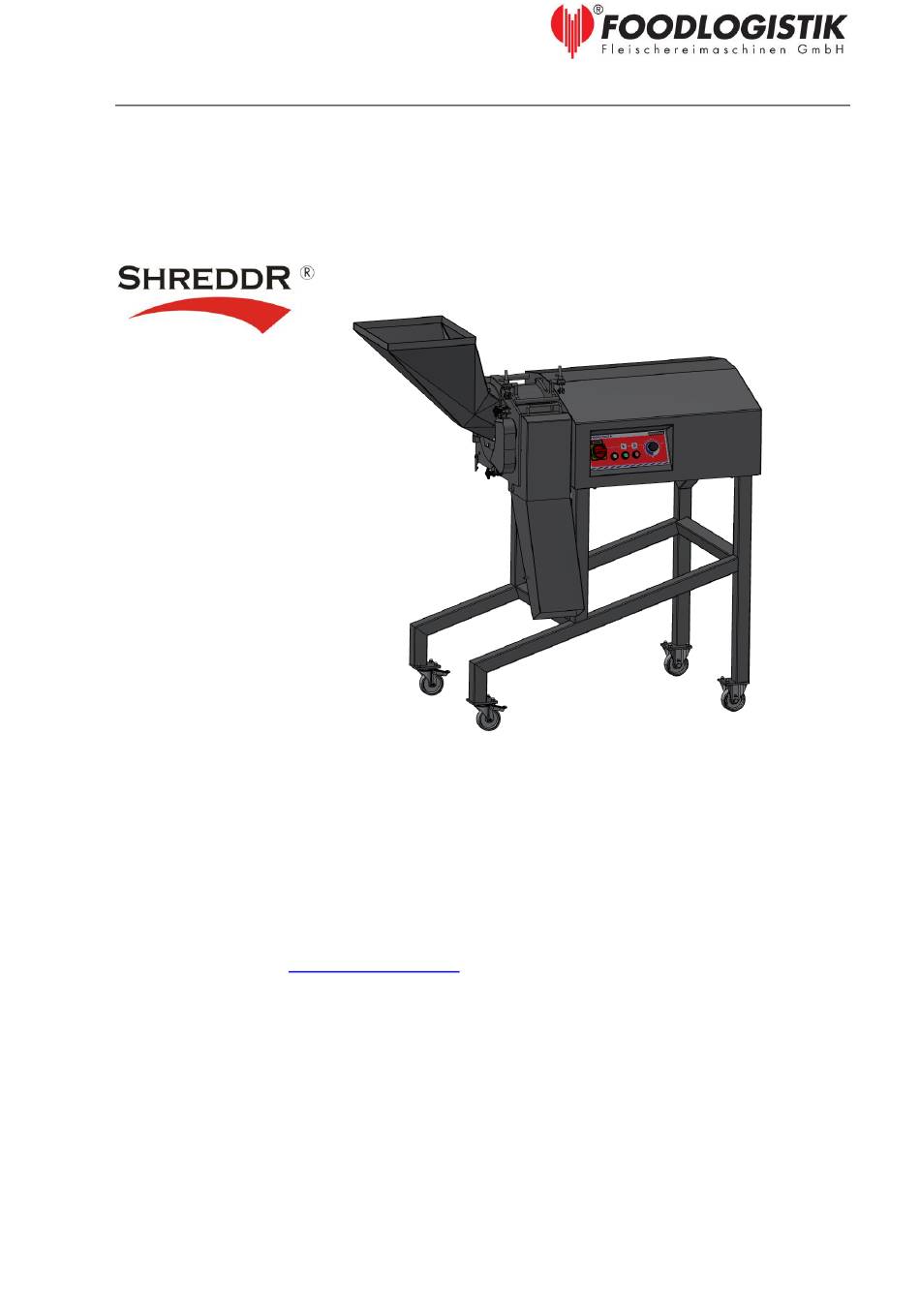

OPERATION AND MAINTENANCE MANUAL

This Operation and Maintenance Manual is valid for the following machine:

Manufacturer:

FOODLOGISTIK

Fleischereimaschinen GmbH

Warliner Str. 8

17034 Neubrandenburg

PF 400 115

17022 Neubrandenburg

Germany

Phone:

0395/ 77 99 0

Telefax:

0395/ 77 99 220

Internet:

www.foodlogistik.de

info@foodlogistik.de

Version date:

January 2023

microfilm, or other procedures) or stored in an electronic retrieval system, reproduced, and / or

distributed without the prior written consent of the manufacturer.

We reserve the rights to make changes, due to technical advancement and further

development, of the machine as described in this manual.

Printed in Germany

FOODLOGISTIK

05/09/23

- classic 140

Fleischereimaschinen

ShreddR

GmbH

- classic 140

2010

Table of Contents

Need help?

Do you have a question about the SHREDDR-classic 140 and is the answer not in the manual?

Questions and answers
