MUZEN DISCO - Portable Bluetooth Speaker Quick Start Guide

Packing List

No. Packing List
1 Host × 1
2 Micro USB Charging cable × 1
3 Lanyard × 1
4 User manual × 1
5 Product certificate × 1

Operating Instructions for Host

Functional guides
It is recommended to carry out the charge for 2h before the first use.

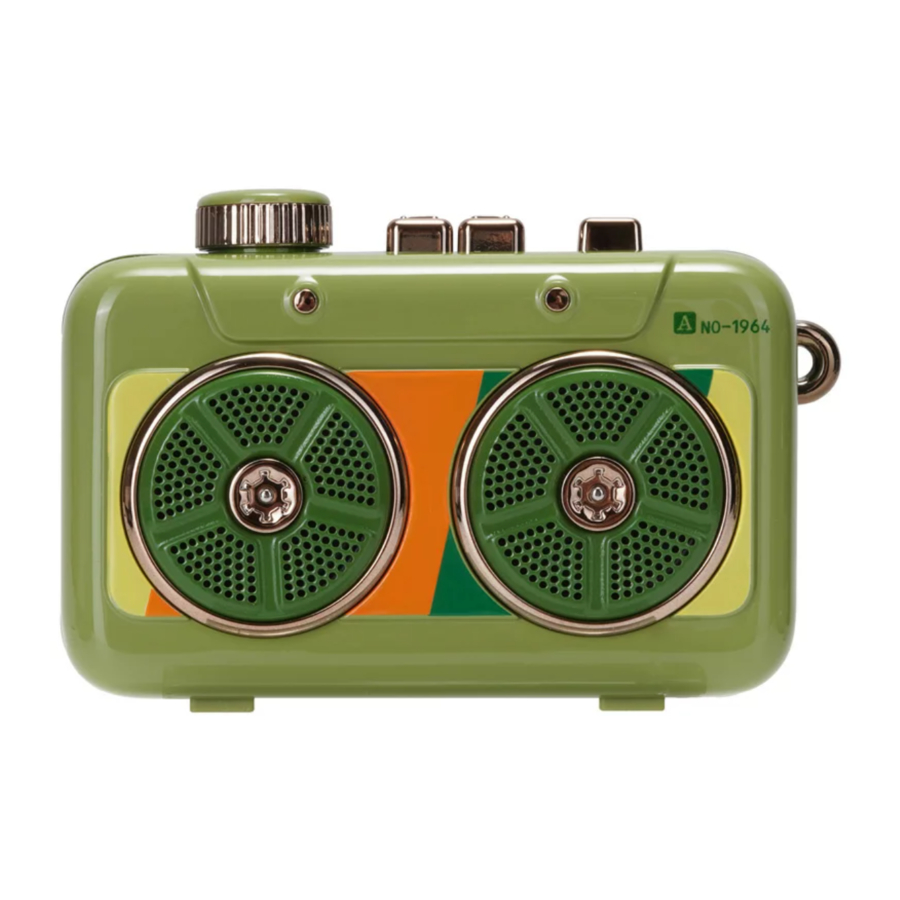

Parts and Controls

  1. Bluetooth indicator:
    Bluetooth name: MUZEN DISCO
    Indicator flashing: The Bluetooth can be connected
    Indicator ON: The Bluetooth has been connected
  2. Power switch:
    Power on: Move the slide switch backwards
    Power off: Move the slide switch forwards
  3. Volume knob:
    Volume up: Turn the knob clockwise
    Volume down: Turn the knob counterclockwise
    Pause/Play: Short press
  4. Last Track Button
    Last track: Short press
  5. Next button: Next Track Button
    Next track: Short press
    Next: Press the button once
    Reset the Bluetooth: Long press the last track button and next track button at the same time for 3s
  1. Speaker: For music playback. (**Note: Fragile part. Please do not press it hard
  2. Lanyard loop: For lanyard installation.
  3. Charging port: For device charge.

Product Features

Music playing anytime and anywhere
The shell of MUZEN DISCO is made of hard metal to achieve stable sound quality in a palm-like volume and explosive sound effects with a small body, to bring you a surprising music experiences.

Convenient controls with a retro feel
Adhere to the experiences of MUZEN knob controls and fast Bluetooth connection to provide you with the auditory feast from music with a simple operation.

Hardware Parameters

Product model: MW-P6I
Product dimension: 86mm (L) × 33mm (W) × 57mm (H)
Bluetooth version: V 4.2
Loudspeaker: φ33mm, 4Ω/3W
Amplifier power: 3W*2
Signal-to-noise ratio: ≥ 70dB
System frequency response: 110Hz-20KHz
MIC use distance: ≤ 0.05m (**Note: under the quiet surrounding environment)
Battery: 800mAh /3.7V
Charging port: Micro USB
Charging voltage: DC 5V 500mA

Warnings/Cautions

  1. Please use this product in a dry environment.
  2. It is not allowed to place this product near any fire source or expose it to any fire source.
  3. The product is not waterproof, which must be noticed during use and storage.
  4. This product shall be used at an ambient temperature of 0-45℃ and it is recommended not to use it beyond this temperature range.
  5. Do not modify, repair or dismantle this product without authorization.

Important Notes

For your safety, please read the following instructions carefully and comply with them:

  1. The manufacturer reserves the right to modify or adjust the specifications and details of the product without notifying users.
  2. Please use the product in a dry environment wherever possible.
  3. The product should not be placed near or in contact with exposed sources of fire.
  4. This product can be used normally with the ambient temperature of 0–45°C. Do not use it outside of this range.
  5. Do not modify, repair or dismantle this product without authorization, otherwise, no after sales services available.
  6. Note that if the battery is not replaced properly, it may explode. If necessary, please visit a professional service center.
    After replacing the battery, the product will not be covered by the warranty.

About Us

Shenzhen Airsmart Technology Co., Ltd
Manufacturer: Shenzhen Airsmart Technology Co., Ltd
Address: Unit 616, Ant's Union Start-up Accelerator, No.9 Keji Road, Science and Technology Park, Nanshan District, Shenzhen, China
Email: info@muzenaudio.com
Website: www.muzenaudio.com
