High Voltage Warning - RCA 8TS30 Service Data

Advertisement

272
8TS30

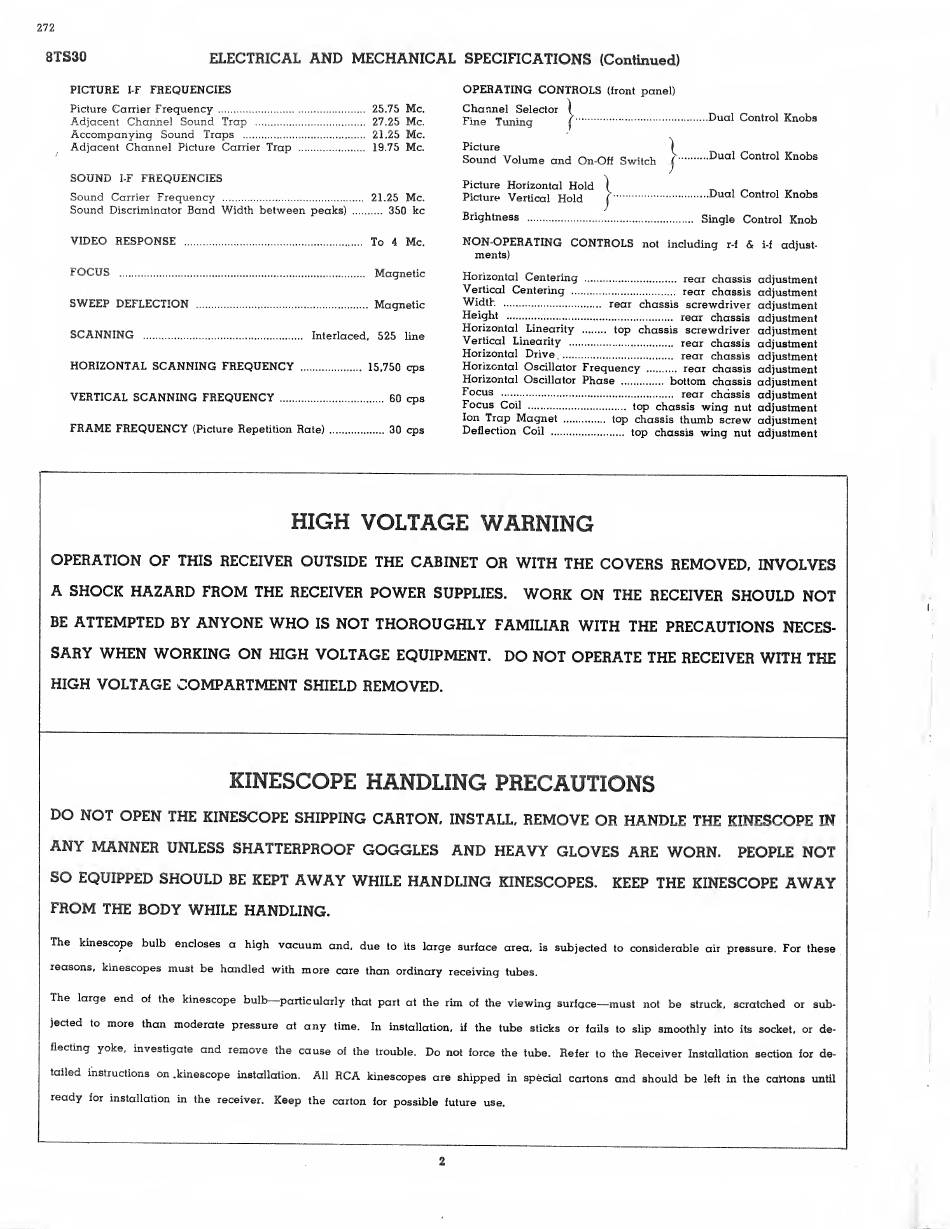

ELECTRICAL AND MECHANICAL SPECIFICATIONS (Continued)
PICTURE I-F FREQUENCIES
Picture Carrier Frequency . 25.75 Me.
Adjacent Channel Sound Trap . 27.25 Me.
Accompanying Sound Traps . 21.25 Me.
Adjacent Channel Picture Carrier Trap ..
19.75 Me.
OPERATING CONTROLS (front panel)
Channel Selector
(
Fine Tuning
(.
i
Sound Volume and On-Off Switch
|
.Dual Control Knobs
.Dual Control Knobs
SOUND I-F FREQUENCIES
Sound Carrier Frequency ..
21.25 Me.
Sound Discriminator Band Width between peaks) . 350 kc
Picture Horizontal Hold
Picture Vertical Hold
.Dual Control Knobs
Brightness
Single Control Knob
VIDEO RESPONSE . To 4 Me.
FOCUS
......
...
Magnetic
SWEEP DEFLECTION . Magnetic
SCANNING . Interlaced, 525 line
HORIZONTAL SCANNING FREQUENCY . 15,750 cps
VERTICAL SCANNING FREQUENCY . 60 cps
FRAME FREQUENCY (Picture Repetition Rate) . 30 cps
NON-OPERATING CONTROLS not including r-f & i-f adjust¬
ments)
Horizontal Centering . rear chassis adjustment
Vertical Centering . rear chassis adjustment
Width . rear chassis screwdriver adjustment
Height . rear chassis adjustment
Horizontal Linearity . top chassis screwdriver adjustment
Vertical Linearity . rear chassis adjustment
Horizontal Drive.... rear chassis adjustment
Horizontal Oscillator Frequency . rear chassis adjustment
Horizontal Oscillator Phase . bottom chassis adjustment
h'oeus . rear chassis adjustment
Focus Coil . top chassis wing nut adjustment
Ion Trap Magnet . top chassis thumb screw adjustment
Deflection Coil . top chassis wing nut adjustment
HIGH VOLTAGE WARNING
OPERATION OF THIS RECEIVER OUTSIDE THE CABINET OR WITH THE COVERS REMOVED, INVOLVES
A SHOCK HAZARD FROM THE RECEIVER POWER SUPPLIES.
WORK ON THE RECEIVER SHOULD NOT
BE ATTEMPTED BY ANYONE WHO IS NOT THOROUGHLY FAMILIAR WITH THE PRECAUTIONS NECES¬
SARY WHEN WORKING ON HIGH VOLTAGE EQUIPMENT. DO NOT OPERATE THE RECEIVER WITH THE
HIGH VOLTAGE COMPARTMENT SHIELD REMOVED.
KINESCOPE HANDLING PRECAUTIONS
DO NOT OPEN THE KINESCOPE SHIPPING CARTON, INSTALL, REMOVE OR HANDLE THE KINESCOPE IN
ANY MANNER UNLESS SHATTERPROOF GOGGLES AND HEAVY GLOVES ARE WORN.
PEOPLE NOT
SO EQUIPPED SHOULD BE KEPT AWAY WHILE HANDLING KINESCOPES.
KEEP THE KINESCOPE AWAY
FROM THE BODY WHILE HANDLING.
The kinescope bulb encloses a high vacuum and. due to its large surface area, is subjected to considerable air pressure. For these
reasons, kinescopes must be handled with more care than ordinary receiving tubes.
I he large end of the kinescope bulb
particularly that part at the rim of the viewing surface—must not be struck, scratched or sub¬
jected to more than moderate pressure at any time.
In installation, if the tube sticks or fails to slip smoothly into its socket, or de¬
flecting yoke, investigate and remove the cause of the trouble.
Do not force the tube. Refer to the Receiver Installation section for de¬
tailed instructions on .kinescope installation.
All RCA kinescopes are shipped in special cartons and should be left in the cartons until
ready for installation in the receiver.
Keep the carton for possible future use.
2
