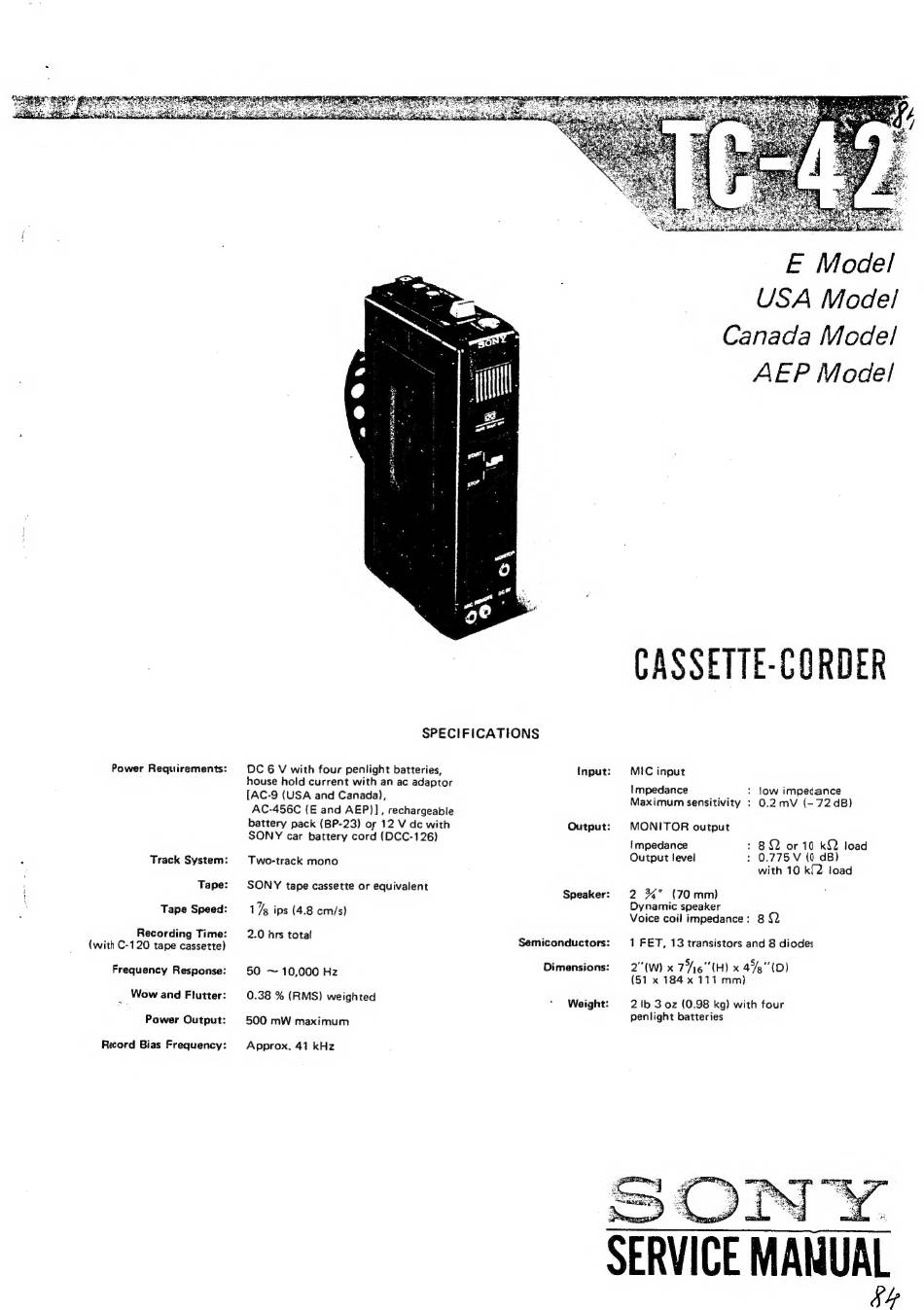

Sony TC-42 Service Manual

Power Requirements:
Track System:
Tape:
Tape Speed:
Recording Time:
(with C-120 tape cassette)
Frequency Response:
c Wow and Flutter:
Power Output:
Record Bias Frequency:
Apa NAENT TN ARE!
SPECIFICATIONS
DC 6 V with four penlight batteries,
house hold current with an ac adaptor
[AC-9 (USA and Canada),
AC-456C (E and AEP)], rechargeable
battery pack (BP-23) of 12 V de with
SONY car battery cord (DCC-126)
Two-track mono
SONY tape cassette or equivalent
17g ips (4.8 cm/s)
2.0 hrs total
50 ~ 10,000 Hz
0.38 % (RMS) weighted
500 mW maximum
Approx, 41 kHz
Input:
Output:
Speaker:
Semiconductors:
Dimensions:
Weight:
= CNY
SERVICE MANUAL
E Model
USA Mode!
Canada Mode!
AEP Model
CASSETTE-CORDER
MIC input
Impedance : low impedance
Maximum sensitivity : 0.2 mV (-72dB)
MONITOR output
Impedance
Output level
: 8Q or 10 kQ load
: 0.775 V (0 dB)
with 10 k{2 load
2 3%" (70mm)
Dynamic speaker
Voice coil impedance: 8 {2
1 FET, 13 transistors and 8 diodes
2° (W) x 7/6 IH) x 45/9 "(D)
(51 x 184x111 mm)
2 |b 3 0z (0.98 kg) with four
penlight batteries
