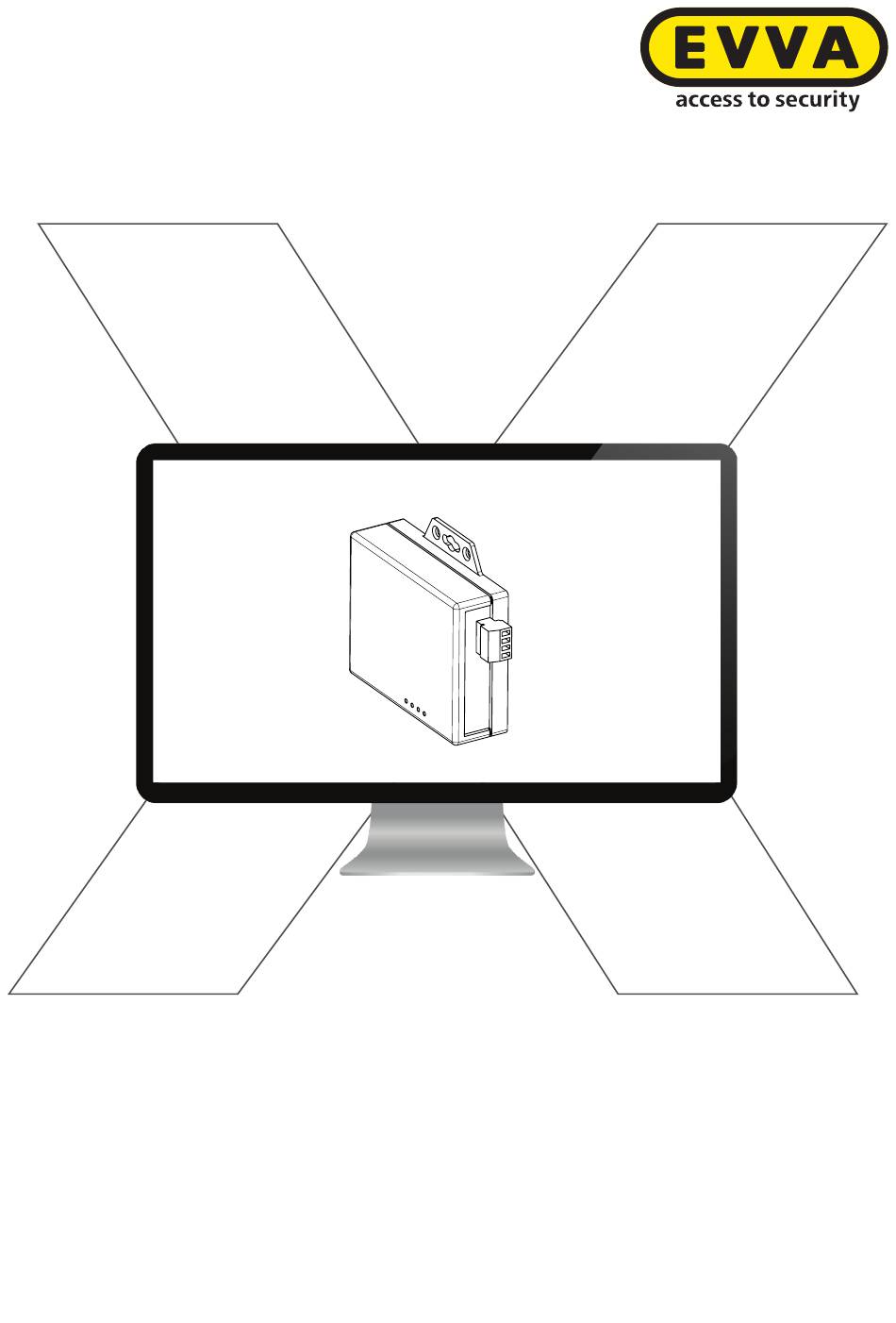

- Page 1 Xesar Diese Zeichnu diese den Stat Der Adapter w abgeändert, JI Commissioning | network adapter Werkstoff: Material <nicht festge...
- Page 2 PC configuration Any computer is suitable for configuring the Xesar network adapter and you can even use the PC running the Xesar software. Please configure the settings of your PC network adapter before starting to commission the Xesar network adapter.
- Page 3 IP address: 192.168.0.xxx (1-254) Subnet mask: 255.255.255.0 DNS server: - Make sure you do not use the preconfigured IP address of the Xesar network adapter (192.168.0.100) as otherwise there will be an IP address conflict which will inhibit a connection.
- Page 4 – click Login; it is not necessary to Enter the standard address of the enter a password. Xesar network adapter in the URL bar – it is listed on the bottom of the device and has been set to 192.168.0.100 by default.
- Page 5 (serial & digital)! Note: The Remote IP (PC) and IP address (Xesar network adapter) must differ! You are now on the Xesar network adapter configuration page. As shown on the illustration, the white fields must be filled. Configure the fields...
- Page 6 Remote IP 192.168.100.1 After having completed the parameter configuration, click Update to complete the Xesar network adapter configuration. Our Xesar system manual features a detailed description on installation and configuration in Section Commissioning the Xesar network adapter. Resetting network adapters: If you are forced to reset the network adapter in the event of an error, subsequently re-check the Parameter settings.
