EVVA Xesar Expert EX9132CST Manual

Commissioning ethernet adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Xesar
Commissioning Ethernet Adapter | Expert EX9132CST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xesar Expert EX9132CST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EVVA Xesar Expert EX9132CST

Summary of Contents for EVVA Xesar Expert EX9132CST

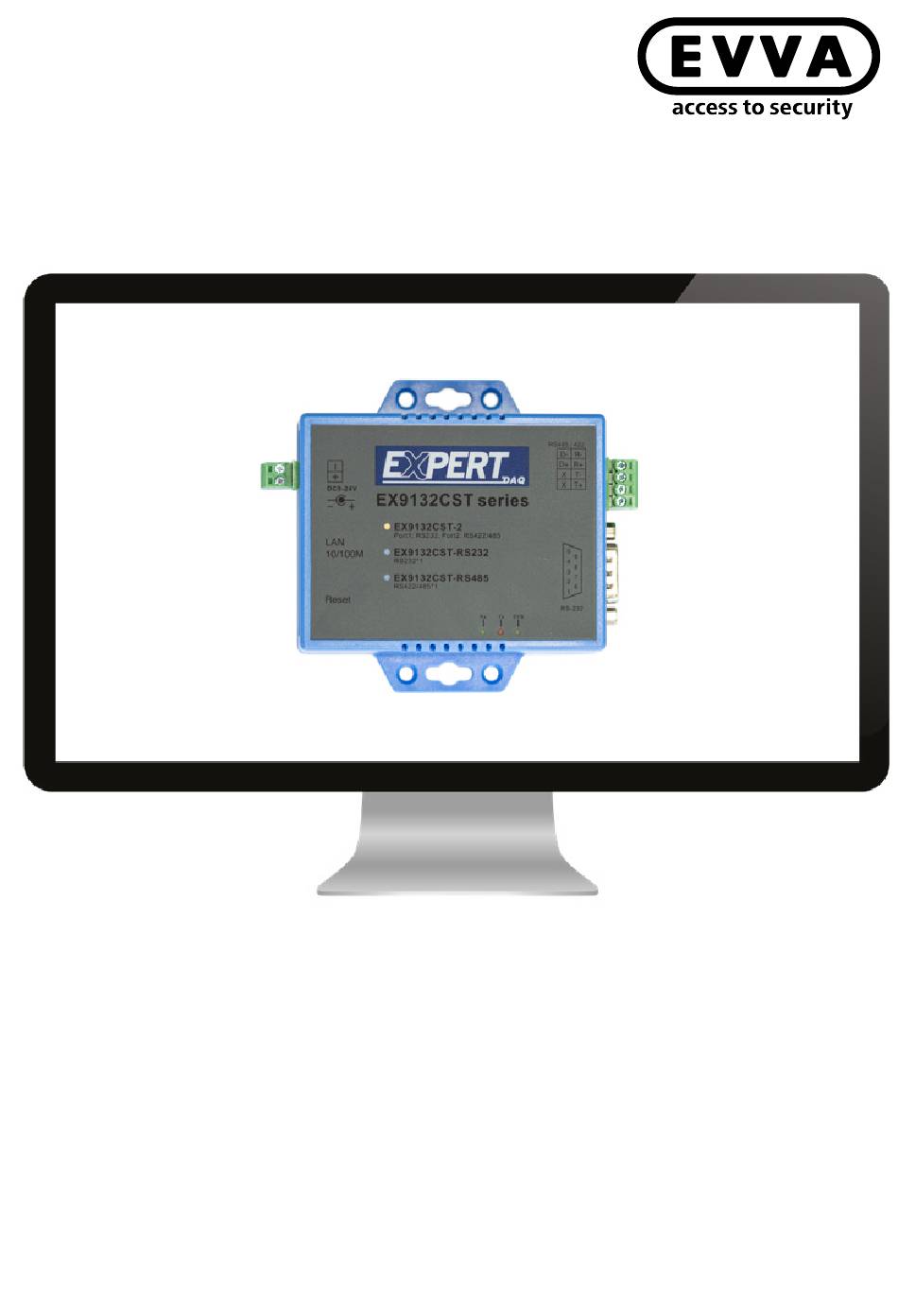

  • Page 1 Xesar Commissioning Ethernet Adapter | Expert EX9132CST...

  • Page 2: Table Of Contents

    Table of contents EXPLANATION OF SYMBOLS ............3 COMMISSIONING THE XESAR-ONLINE WALL READER NETWORK ADAPTER EXPERT EX9132CST ............4 PC configuration ..................... 4 Commissioning a Xesar network adapter ............6 Status page ....................7 RS485/422 ....................8 Network ......................8 Resetting a network adapter: ................

  • Page 3: Explanation Of Symbols

    Explanation of symbols The following symbols are used in the system manual and are intended to support a better understanding: Symbol Meaning Attention, risk of material damage in the event of non- compliance with the corresponding safety measures. Notices and additional information Hints and recommendations Avoidance of errors and error messages Options...

  • Page 4: Commissioning The Xesar-Online Wall Reader Network Adapter Expert Ex9132Cst

    Additional network adapter commissioning instructions: EVVA Homepage Xesar Downloads Please contact your EVVA technical office if you have any questions or would like to obtain more information. PC configuration Any computer is suitable for configuring the Xesar network adapter. This can also be the PC on which the Xesar software is operated.
  • Page 5 In the window, select Internet protocol version 4 (TCP/IPv4) and click Properties Figure 2: Windows - LAN connection The IP address and the subnet mask of the PC 1 must be configured in order to configure the Ethernet Adapter. Use the following addresses for this purpose: IP address: 192.168.1.xxx (1-254) Subnet mask:...

  • Page 6: Commissioning A Xesar Network Adapter

    To avoid an IP address conflict, be careful NOTto use the default IP address of the Xesar network adapter (192.168.1.100). (If there is an IP address conflict, a connection can not be established.) Please contact your system administrator if you encounter any issues during setup.

  • Page 7: Status Page

    Enter the standard address of the Xesar network adapter in the browser's address bar – this can be found on the bottom of the device, it is set to 192.168.1.100 by default. Figure 5: Xesar network adapter | IP address (updater) If you cannot open the configuration page, check the firewall settings of your PC, the IP settings, and also the correct wiring of the Xesar network adapter.

  • Page 8: Rs485/422

    RS485/422 In the "Remote Address /URL" field, enter the IP address of the PC or server on which the Xesar software is installed. It is responsible for the communication between the Xesar network adapter and the Xesar software. It is important that the remote port (9081 by default) is the same as that specified in the Xesar Installation Manager (OCH Port).
  • Page 9 After having completed the parameter configuration, click Save to complete the Xesar network adapter configuration. To transfer the data to the Xesar Ethernet Adapter, press "Reboot". Figure 9: Xesar network adapter - parameter settings After rebooting the network adapter, disconnect the Xesar network adapter from the configuration PC.

  • Page 10: Resetting A Network Adapter

    The Remote IP (PC) and IP address (Xesar network adapter) are different! They must reside on the same network. Sample configuration: IP address 192.168.1.100 Subnet mask 255.255.255.0 Device Name Adapter1 Login password passwordadapter1 Remote IP 192.168.1.11 Resetting a network adapter: If you have forgotten your set password or the Xesar network adapter does not work due to incorrect input data, you can reset the Xesar network adapter to the factory settings.

  • Page 11: Table Of Figures

    Table of figures Figure 1: Windows adapter settings ..................4 Figure 2: Windows - LAN connection ................... 5 Figure 3: Windows – IP address (PC) .................. 5 Figure 4: Xesar network adapter - connections ..............6 Figure 5: Xesar network adapter | IP address (updater) ............7 Figure 6: Xesar network adapter - Login ................
