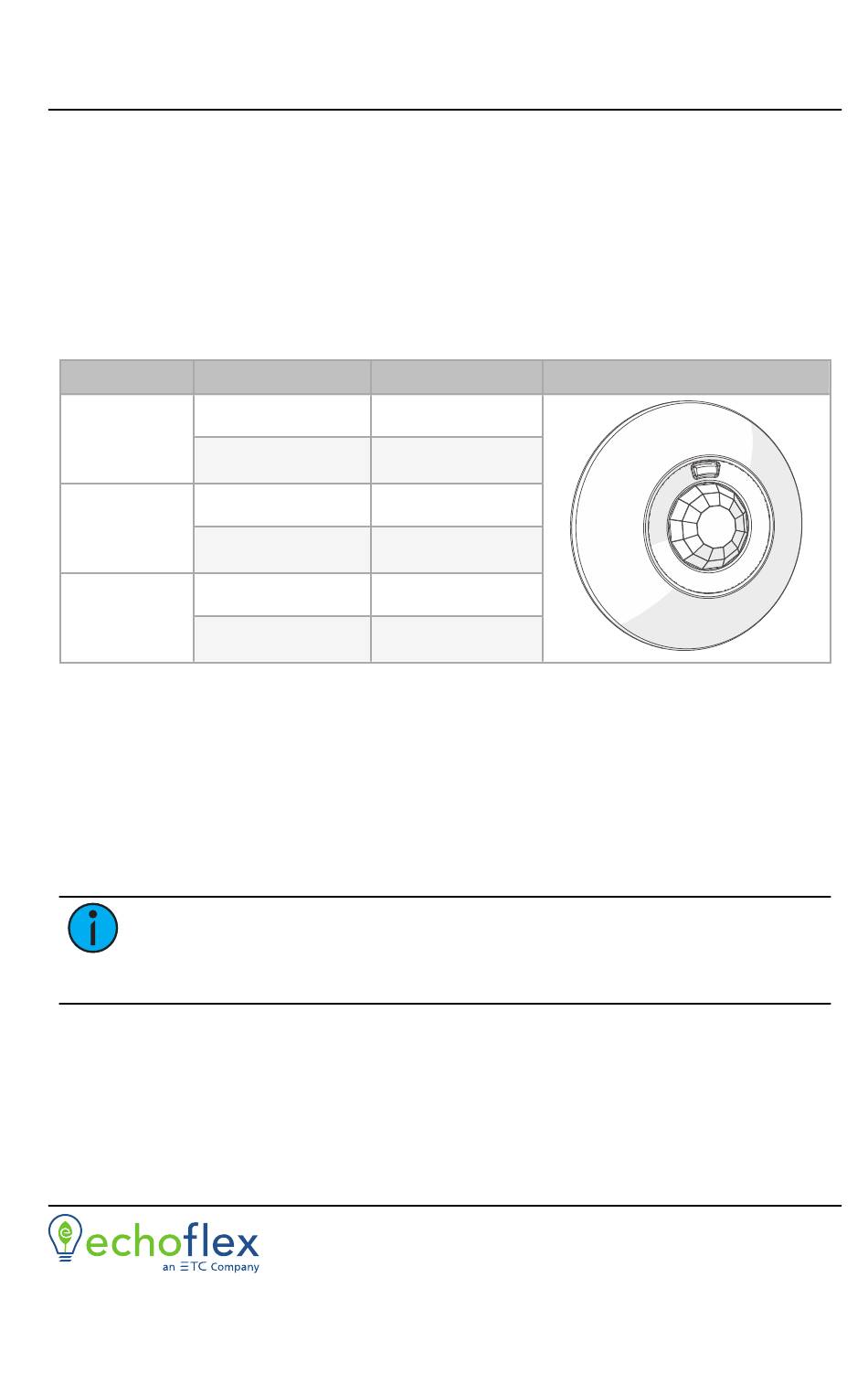

Echoflex Installation Guide
Elaho Dual Tech Ceiling-mount Occupancy
Overview
The Elaho Dual Tech Ceiling-mount Occupancy Sensor uses passive
infrared (PIR) technology and acoustic detection to provide reliable
occupancy and vacancy sensing for lighting control.
The ceiling-mount sensor offers 360 degree coverage with optimized lens
options to accommodate small spaces, large spaces, and spaces with high
ceilings.
Model
Coverage m
E-DOC-C-SR
41.8 m
Small Room
74.3 m
E-DOC-C-LR
167 m
Large Room
279 m
E-DOC-C-HC
28 m
High Ceiling
650 m
Field-installed lens masks are provided to allow customized detection
fields for each sensor lens type.
Custom Configuration
This document guides you through the installation and local DIP switch
setup of the sensor. For more detailed information about custom
configuration options available using ElahoAccess, see the ElahoAccess
App integrated help system.
Note:
ElahoAccess, DIP switch 2 must be enabled. See
page 7.
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
© 2023 Echoflex Solutions, Inc. | Trademark and patent info:
Web
echoflexsolutions.com
Third-party license agreement
change. Echoflex intends this document to be provided in its entirety.
8186M2183 Rev C Released 2023-06
2
Coverage ft
2
at 2.4 m
450 ft
2
at 6.7 m
800 ft
2
at 2.4 m
1,800 ft
2
at 6.7 m
3,000 ft
2
at 2.4 m
300 ft
2
at 12.2 m
7,000 ft
To use the configuration settings applied using
| Email
info@echoflexsolutions.com
info: etcconnect.com/licenses
2
2
at 8 ft
2
at 12 ft
2
at 8 ft
2
at 12 ft
2
at 10 ft
2
at 40 ft
echoflexsolutions.com/ip
| Support
service@echoflexsolutions.com
| Product information and specifications subject to
DIP Switches on
Advertisement
Table of Contents
Related Manuals for echoflex E-DOC-C-SR
Summary of Contents for echoflex E-DOC-C-SR
- Page 1 Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116 © 2023 Echoflex Solutions, Inc. | Trademark and patent info: echoflexsolutions.com/ip echoflexsolutions.com | Email info@echoflexsolutions.com | Support service@echoflexsolutions.com Third-party license agreement info: etcconnect.com/licenses | Product information and specifications subject to change. Echoflex intends this document to be provided in its entirety. 8186M2183 Rev C Released 2023-06...
-
Page 2: Prepare For Installation
Compliance • cULus Listed • CE compliant For use with Echoflex Elaho Control Systems, powered by an Elaho station power supply. Environment Ambient For indoor, commercial controls use only. Operating temperature 0°C–40°C (32°F–104°F), humidity maximum 90% (non-condensing). -
Page 3: Wire Specification
The Dual Tech Occupancy Sensor connects to the EchoConnect communication bus. EchoConnect is a bi-directional protocol that uses one pair of wires (data+ and data–) for both data and power. Echoflex recommends using Belden 8471 Class 2 wire (or approved equal – see the Echoflex cable cross database echoflexsolutions.com/files/Elaho_Data_... -
Page 4: Installation
Echoflex Installation Guide Dual Tech Occupancy Sensor Installation Note: Installation must follow all national and local codes for electrical equipment. NEC Class 2 product to be wired in accordance to NEC Article 725 and local jurisdiction requirements. The ceiling-mount sensor is provided with a mounting plate that can be mounted to a junction box, finished ceiling, or soft ceiling tile. -
Page 5: Soft Ceiling Tile Installation
Echoflex Installation Guide Dual Tech Occupancy Sensor Soft Ceiling Tile Installation Ceiling tile adapter Ceiling tile Ceiling tile adapter 1. Pull the Belden 8471 (or equivalent) and 2.5 mm (14 AWG) ground wire to the mounting location. Strip each wire 11 mm (7/16 in). 2. Temporarily remove the sensor cover to gain access to the configuration switches and mounting access holes. - Page 6 Echoflex Installation Guide Dual Tech Occupancy Sensor Settings The Elaho Dual Tech Ceiling-mount Occupancy Sensor DIP switches participates in an Elaho control system Space and Address using the configured switches Space and Address, which are selectable using the rotary switches on the sensor electronics located behind the removable cover.
- Page 7 Echoflex Installation Guide Dual Tech Occupancy Sensor DIP Switches DIP switches on the sensor electronics provide for additional configuration options including Use Custom Config, Vacancy Timeout, Enable/Disable detection LEDs, PIR Only Mode, and the ability to restore the sensor to its factory defaults.
- Page 8 Echoflex Installation Guide Dual Tech Occupancy Sensor Power Up All EchoConnect terminations in the system must be made before applying power to the system and sensor. When the sensor is powered, the PIR and acoustic detection LEDs illuminate for one minute for calibration and warm-up, and then return to normal operation according to the configuration.
-
Page 9: Operation
Echoflex Installation Guide Dual Tech Occupancy Sensor 2. Press and release the Auxiliary [A] button the number of times that corresponds to the preset that you want to use. For example, press the [A] button eight times to set Preset 8. The LED flashes the number of the preset used. -
Page 10: Lens Masking
Echoflex Installation Guide Dual Tech Occupancy Sensor Walk Test The sensor offers a Walk Test mode, which shortens the vacancy timer to 10 seconds and allows for simple and quick verification of the sensor’s coverage and range in the installed space. - Page 11 Echoflex Installation Guide Dual Tech Occupancy Sensor Sensor Coverage Small Room Lens Side View 8 ft 2.4 m 10 ft 3.0 m 12 ft 3.7 m 20 ft 20 ft 15 ft 10 ft 5 ft 5 ft 10 ft 15 ft 6.1 m...
- Page 12 Echoflex Installation Guide Dual Tech Occupancy Sensor Dual Tech Occupancy Sensor Page 12 of 12 Echoflex...
