echoflex E-VAC-SR Installation Manual

Echoflex Installation Guide
Elaho Vacancy Sensor
Overview

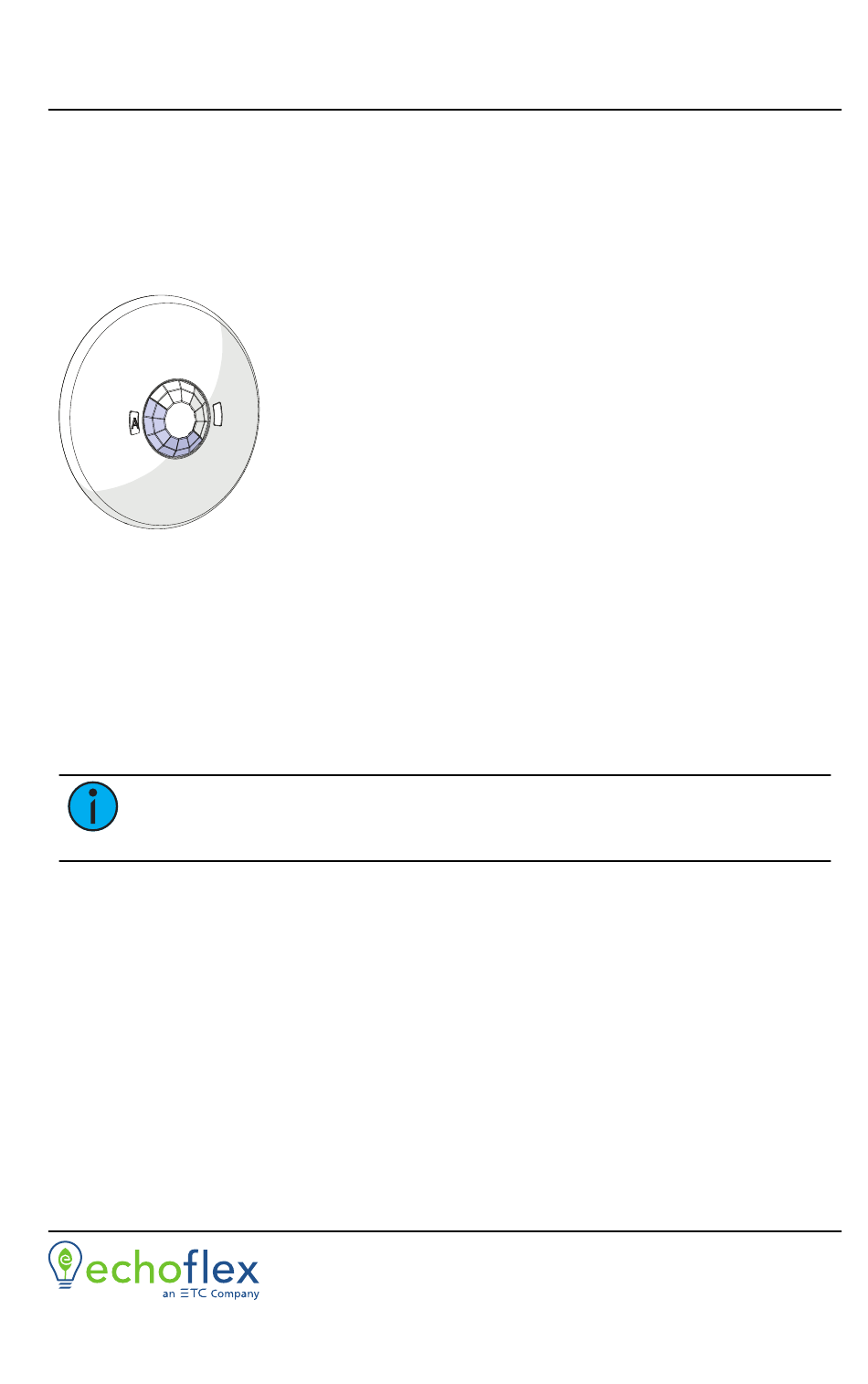

The Elaho Vacancy Sensor is a ceiling mounted sensor that utilizes passive
infrared (PIR) technology, providing reliable vacancy detection for lighting
control. The sensor relies on local station control for manual on and provides
auto off functionality upon detection of vacancy.
Custom Configuration
This document guides you through the installation and local configuration of
the Vacancy Sensor. For more detailed information about custom
configuration options available for the Vacancy Sensor using ElahoAccess,
reference the ElahoAccess Mobile App integrated help system.
Note:
switch 2 must be enabled. Reference
Main Offic e Squamish, BC, Canada
n
Email info@echoflexsolutions.com
© 2018 Echoflex Solutions, Inc.
8186M2182 Revision A Released 2018-09
n n
The Vacancy Sensor provides 360 degree coverage of the
installed location and is available in three models:
E-VAC-SR- Vacancy Sensor with small room lens
•
covers 450 sq. ft. at 8 ft./ 800 sq. ft. at 10 ft.
E-VAC - Vacancy Sensor with standard room lens
•
covers 1,800 sq. ft. at 8 ft./ 3,000 sq. ft. at 10 ft.
E-VAC-HC - Vacancy Sensor with high ceiling lens
•
covers 300 sq. ft. at 10 ft./ 7,000 sq. ft. at 40 ft.
Each sensor is available in white or black finish. Lens
masks are provided to allow customized vacancy
detection fields as required by each installation.
To use the configuration settings applied using ElahoAccess, DIP
Toll Free +888 324 6359
n
W eb echoflexsolutions.com
n
Echoflex intends this document to be provided in its entirety.
n
DIP Switch Settings on page 7
Phone +778 733 0111 Fax +604 815 0078
n n
Product information and specifications subject to change.
