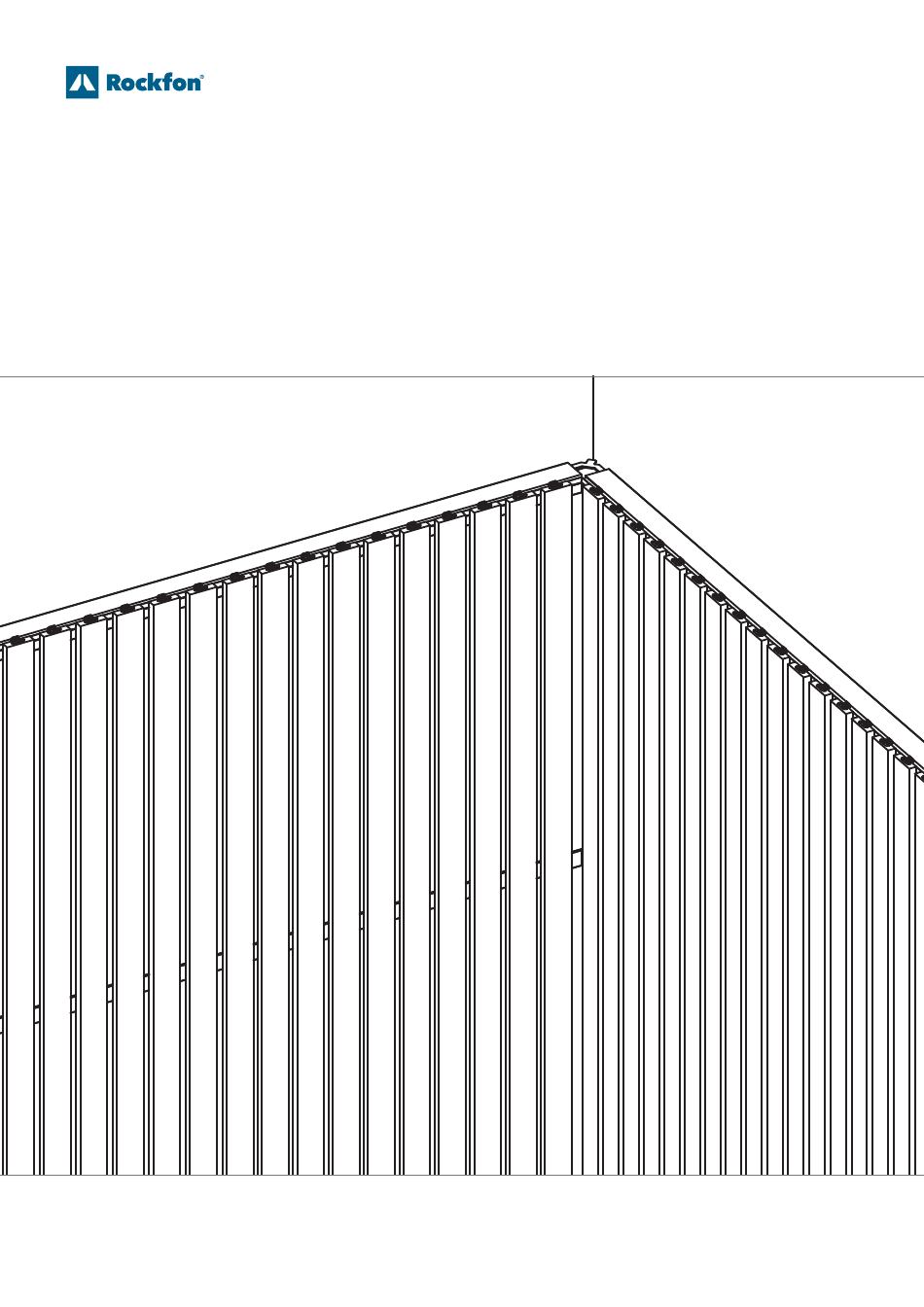

- Page 1 INTERNAL CORNER Rockfon Lamella ® ™ How to install internal corners. Sounds Beautiful...
- Page 2 ® ™ Description The aim is to achieve corners with the correct lamella spacing between the two inner lamellas, and to fully exploit the flexibility of the system. Corner with 34 x 30 lamellas. Corner with 39 x 21 lamellas.
-
Page 3: Installation
Internal corner – Rockfon Lamella ® ™ Installation If meeting a corner, you need to cut the profile to stop 42 mm from the corner. 1. Insert corner connector brackets in the profiles before mounting them on the wall. 2. Space the profile end 42 mm from the corner, then fix it to the wall. - Page 4 Internal corner – Rockfon Lamella ® ™ Mounting adjacent profiles. 1. Slide the connecting profile on the Corner Connector Bracket, until it meets the adjacent profile. 2. Align the connecting profile horizontally and fix it to the wall. 3. Repeat with all the profiles.
- Page 5 1. Put in the charcoal sound absorbing panel. Remember the bottom spacer in the bottom Wall profile (see Rockfon Lamella installation guide). Profile 2. Slide the acoustic panel all the way into the corner, until it's stopped by the wall.
- Page 6 Mounting remaining charcoal sound absorbing panels. 1. Put in the acoustic panel. Remember the bottom spacer in the bottom profile (see Rockfon Lamella installation guide). 2. Slide the adjacent acoustic panels all the way into the corner, until they meet the adjacent panels.
- Page 7 Internal corner – Rockfon Lamella ® ™ Mounting 1st clips from corner. 54 mm 44 x 12 64 mm 39 x 21 Wall 74 mm 34 x 30 Mark an alignment line for placing the 1st inner clip. Measure from the front face of the adjacent profile.
- Page 8 Interior corner – Rockfon Lamella ® ™ Mounting the slats. Attach all slats on the clips (see Rockfon Lamella installation guide). The internal corner is now complete.
- Page 9 Sounds Beautiful Part of ROCKWOOL Group / www.rockfon.co.uk...
