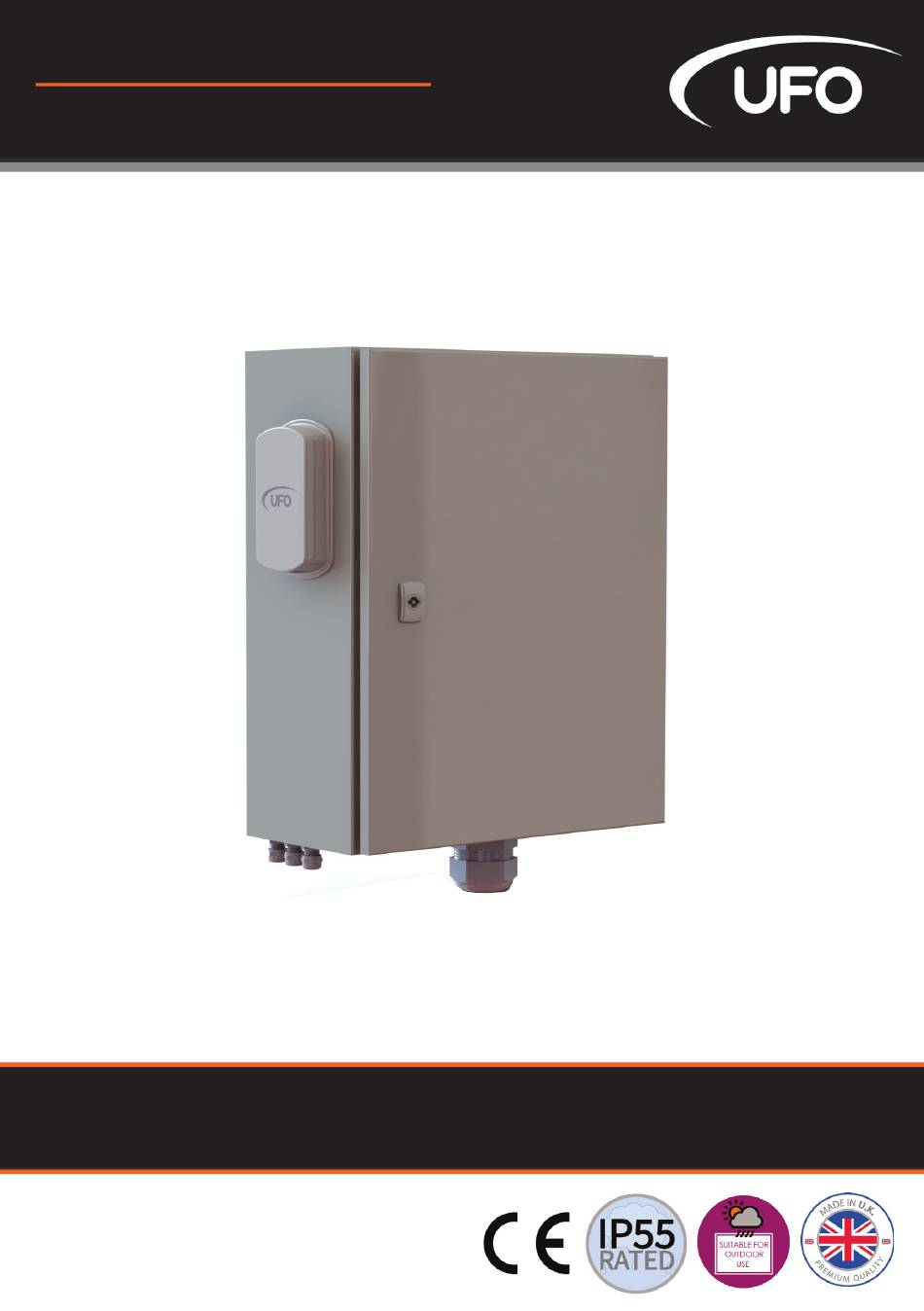

- Page 1 PRODUCT USER GUIDE IP-03 Weatherproof Enclosure Rev: C1 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE ENCLOSURE...
- Page 2 INTRODUCTION Thank you for purchasing this UFO weatherproof enclosure which is fitted with an LED light source unit. To ensure the enclosure is mounted and connected correctly please read this user guide before installing and operating or performing any maintenance on the enclosure. To ensure that the...
-
Page 3: Model Variations
Four IP-03 enclosure variants are shown in the examples on the followng pages. Figures 1 and 2 are schematics of the 24V light source version using a UFO Sirius light source as an example. For DC supply voltages more than 12V a DC-to-DC converter is used to power the 12V DC fan. - Page 4 INTRODUCTION FIGURE 1 AC SCHEMATIC USING SIRIUS LIGHT SOURCE 03 WEATHERPROOF ENCLOSURE USER GUIDE...
- Page 5 INTRODUCTION FIGURE 2 24 V DC SCHEMATIC USING SIRIUS LIGHT SOURCE UFO LIGHTING...
- Page 6 INTRODUCTION FIGURE 3 AC SCHEMATIC USING PULSAR LIGHT SOURCE 03 WEATHERPROOF ENCLOSURE USER GUIDE...
- Page 7 INTRODUCTION FIGURE 4 12 V DC SCHEMATIC USING NEBULA LIGHT SOURCE UFO LIGHTING...
- Page 8 MODEL INFORMATION SIRIUS WHITE LIGHT PRODUCT CODES Ordering Code Control Options Power Variant Total Power UFO IP03SIRCTAC Manual, DMX, 010V 240VAC 50Hz UFO IP03SIRCTDC Manual, DMX, 010V 12V DC CT in product code is used to designate white colour temperature - WW (warm white / 3000K),...
- Page 9 INTRODUCTION PULSAR PRODUCT CODES Ordering Code Control Options Power Variant Total Power UFO IP03PULDMXAC Manual, DMX, 010V, 110V 240VAC 50Hz 130W UFO IP03PULDMXDC Manual, DMX, 010V, 110V 48V DC 130W Manual, DMX, 010V, 110V, UFO IP03PULDMXRAC 240VAC 50Hz 130W RF Remote Manual, DMX, 010V, 110V,...
-
Page 10: Installation
INSTALLATION DIMENSIONS Note that dimensions are shown in mm. 03 WEATHERPROOF ENCLOSURE USER GUIDE... -
Page 11: Mounting The Enclosure
300mm (12”) of space around all sides to allow for air circulation and to prevent overheating. Mounting the enclosure in any other way will invalidate the IP rating and the product warranty. UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting. UFO LIGHTING... - Page 12 3. Choose appropriate fixings for the surface that the enclosure is being mounted to. Note that unless UFO are installing the unit then we do not supply fixings. This is due to the large variance of surface types the enclosure may be mounted to.
- Page 13 Prepare the cable end and wires for connection allowing sufficient bare conductor to enter the terminal fully. Connect the incoming wires as follows: • Green to earth • Black to Live • White to Neutral UFO LIGHTING...
- Page 14 INSTALLATION FOR REMOTE DC OPERATION ( DC SUFFIX MODELS ) CONNECTION There may up to three connections required to be connected via the appropriate gland: 1. The fibre harness. 2. The DMX or 0-10V cables for any light sources with that control functionality 3.
-
Page 15: Maintenance
Check fuse/trip & replace/reset if necessary. If Blown fuse or circuit tripped PSU is out problem persists, isolate mains and contact UFO AC & DC enclosure Refer to Troubleshooting section in Light source not connected correctly model. Unit is dead light source user guide –... -
Page 16: Maintenance Record
MAINTENANCE MAINTENANCE RECORD Date Maintenance Undertaken Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. 03 WEATHERPROOF ENCLOSURE USER GUIDE... -
Page 17: Technical Information
* Note that the IP protection category only applies when the enclosure is mounted as specified by UFO - see page 2 for details. Mounting the enclosure in any other way invalidates the IP rating and the product warranty. UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting. - Page 18 NOTES 03 WEATHERPROOF ENCLOSURE USER GUIDE...
- Page 19 NOTES UFO LIGHTING...
- Page 20 United Kingdom • United States • Germany • Europe • Universal Fibre Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Andreasstraße 20 TD12 4DT Sarasota FL34234 93059 Regensburg Deutschland +44 (0)1890 883416...
