What's in the box?

1.0
1. MagEx
2. Shoulder Strap
3. Tablet

4. Battery

5. MagEx Charger
6. Tablet Charger
Battery
2.0
The MagEx system comes with two batteries, each providing approximately 5 hours of battery
life between charges. It is recommended users install both batteries prior to the surveys.
The battery compartment is located under the green cover on the rear portion of the
instrument.
To install or change the batteries, access the battery compartment by removing the cover. After
the cover is removed, gently pull the two pairs of red and black battery cables out of the
compartment to access their ends.
Slide the first battery into the battery compartment and con nect the battery to the unit with the
orange battery connector. The white connector is for the voltage monitor. Attach the
corresponding voltage monitor to the battery.
After connecting the first battery, repeat the process with the second battery. Carefully tuck the
wires back into the compartment and replace the end cap by attaching the bottom first and

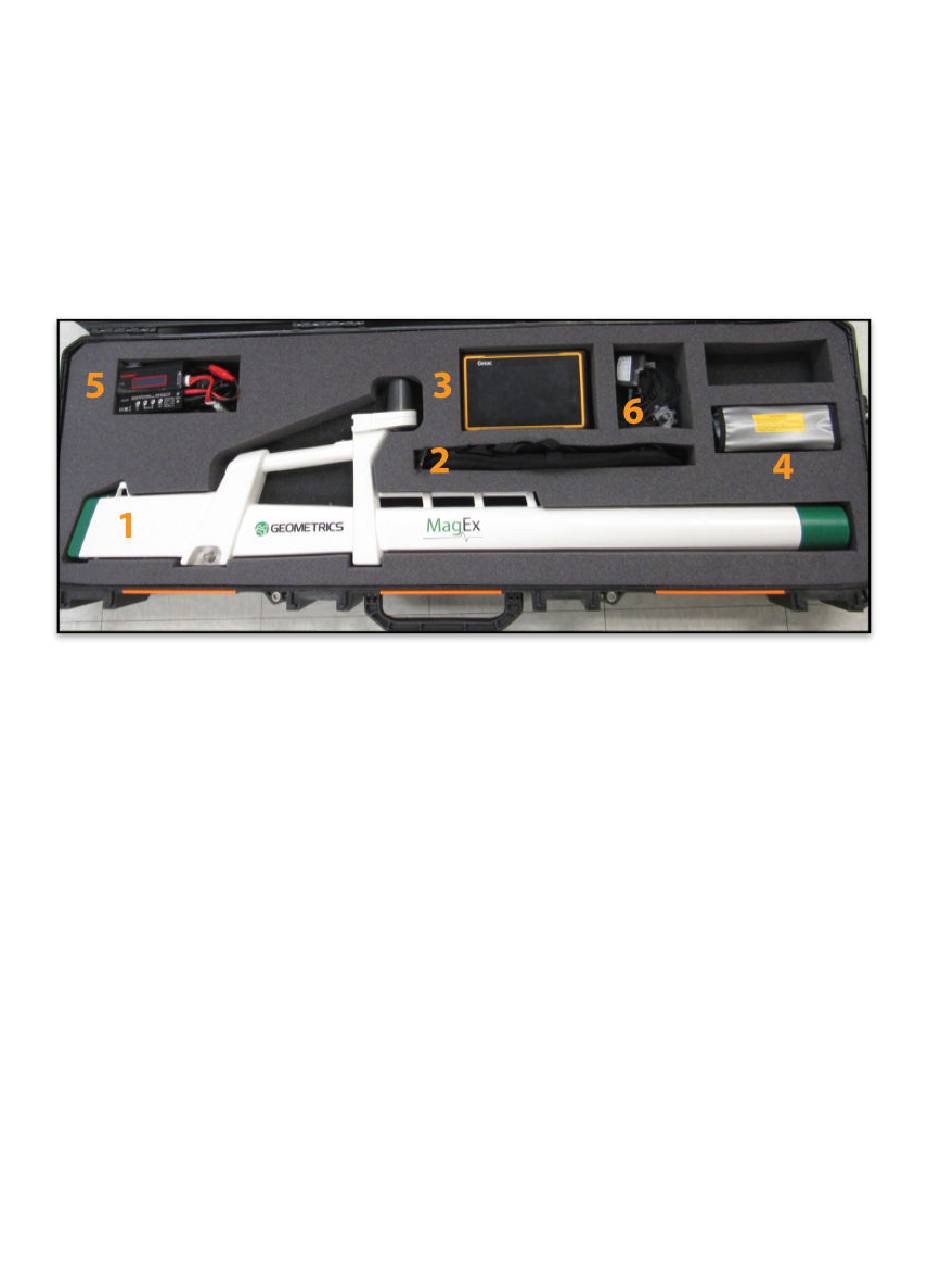

Figure 1-1 – Standard MagEx system in the box
3
