Micronor ESAV Series Instruction Manual

Absolute encoders – ESAV/ENAV series
Standard electronic, magnetic
multiturn, singleturn, analog
Table of Contents
1.

Recommended wiring

2.

Function and Status LED

3. Default Settings
4. Programming
4.1 Scaling Function (Multiturn Only)
4,2 Zero Set Function (Singleturn Only)
4.3 Direction Of Rotation Change (Multiturn Only)
4.4 Limit Switch Function (Multiturn Only)

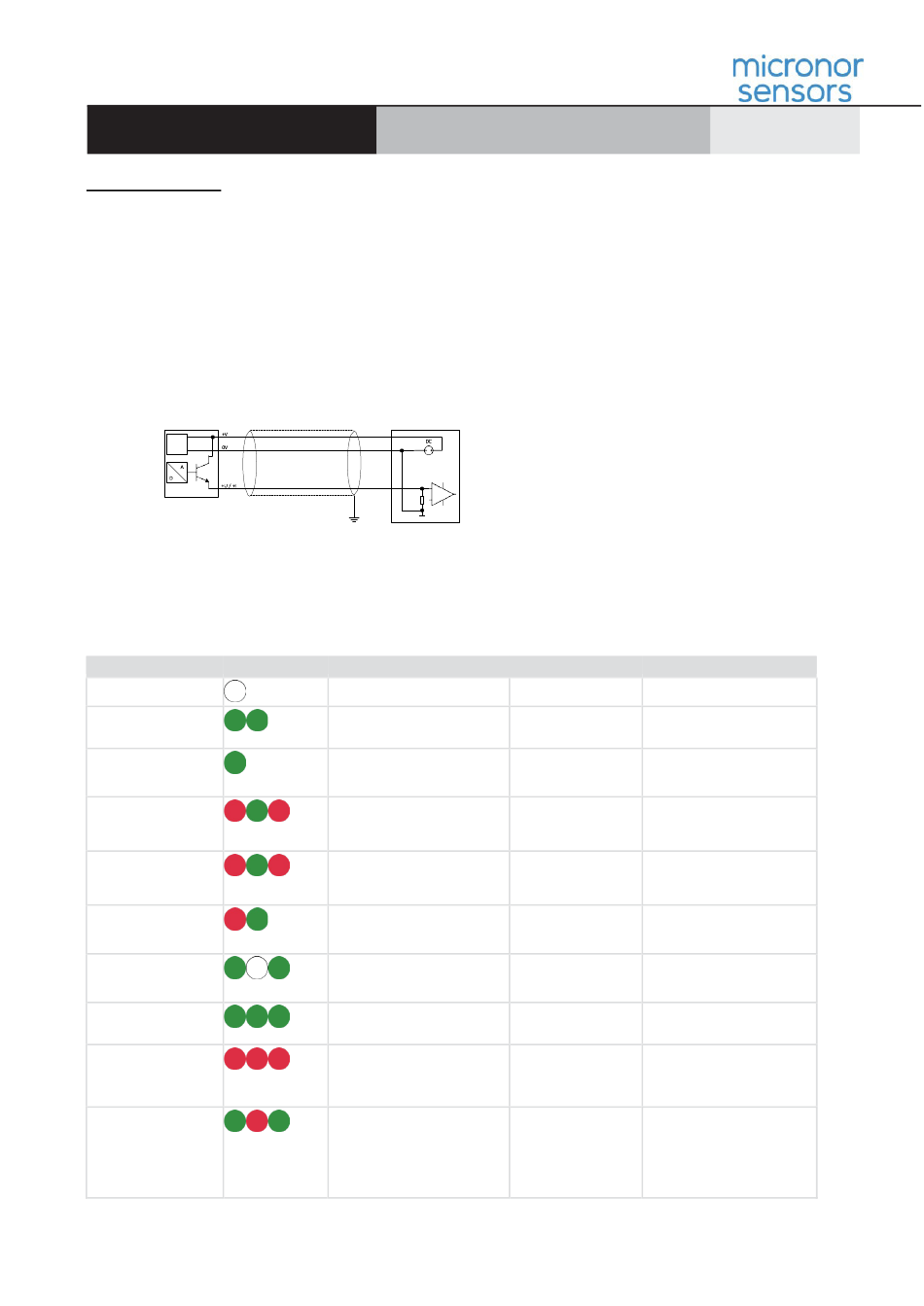

1. Recommend Wiring
The interface has simply 3 signal wires for signal transmission.
• Use exclusively shielded twisted-pair cable to connect the device.
Comply with the maximum permissible connection cables length.
•
• Preferably connect the shield on both sides with low impedance to the protective earth (PE), e.g.on the device and/or on the evaluation unit. In the event of
potential differences, the shield must only be applied on one side.
Sensor
2. Function and Status LED
The device is equipped with a two-color LED for display status and error messages:
• Green = status
Red = error
•
Display LED
No LED on
Green LED flashes in
250ms cycles
Green LED
constantly on
Red and green LEDs
flash alternately in
250ms cycles
Red and green LEDs
flash alternately in
500ms cycles
Green and red LED
constantly on
Green LED
flashes 1x
Green LED
flashes 3x
Red LED
flashes 3x
Green / red / green
sequence
www.micronor.com
Instruction Manual
Voltage source
Recommended input wiring
Meaning
Encoder not in operation
Service mode
Encoder in operation
System error
Wire break
(only for current output)
Reference point display
Activation of SET 1 input
detected and confirmed.
Activation of SET 2 input detected.
The new measuring range has taken
over.
Error during the scaling
operation.
The new measuring range has
not taken over.
Reset of the scaled measuring
range. Default measuring range
is loaded. Preset is carried out at
the current position.
Zero set function confirmed with
singleturn devices.
Specifications subject to change without notice, 98-0ENC-04-A, released 11/29/2023
Error cause Note
Faulty supply voltage Check the voltage supply and
the wiring.
Encoder not operational
The encoder is in Contact the Micronor Sensors
Service mode. support.
Internal system error Contact the Micronor Sensors
support.
Load at the output too Check the wiring
low. Connection with the
control interrupted.
Selected measuring Scale another measuring
range: range
< 22.5° or
> 65536 revolutions
Page 1 of 4
